The material of 50000 Liters petrol tanker for sale produced by TITAN Vehicle can choose stainless steel, carbon steel, aluminum alloy, and the carrying capacity of the petroleum tanker trailer can be 30,000 liters, 45,000 liters, etc., or even 90,000 liters.
The tank body can be divided into several compartments, and can be divided into 7 compartments at most, which has achieved the purpose of transporting different types of oil at the same time.

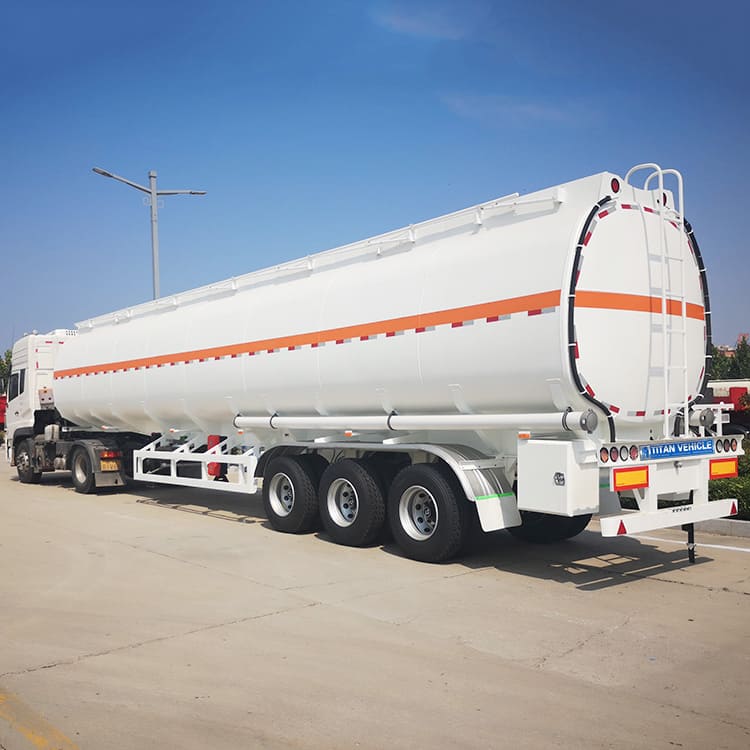

Petrol Trailer for Sale | Tri Axle 50000 Liters Petrol Tanker Trailer for Sale
Petrol Trailer for Sale | Tri Axle 50000 Liters Petrol Tanker Trailer for Sale
Petrol Trailer for Sale | Tri Axle 50000 Liters Petrol Tanker Trailer for Sale
Dimension: 11500mm * 2500mm *3700mm (the exact size depends on the final design.)
Tare Weight (semi trailer): About 8000-12800kg
Total volume(m³): 50000 Liters
Tank Body Material: 5mm or 6mm/ carbon steel
End plate: 5mm or 6mm/ carbon steel
Manhole Cover: carbon steel
Bottom Valve: Aluminum API Pneumatic Bottom Valve
Compressor: BOHAI 10m³/12m³ or other brands
Discharging Valve: Diameter is 3 or 4 inch
Compartments: Optional
Discharging Pipe: 4 inch rubber hose,2pcs,6m/each
Cat Walk: With (common model or special design)
Main beams: Welded design or special design I beam, connected by bolts and nuts Q345 carbon steel material
Axle: 3 axles,12T/13T/16T,BPW/ FUWA/ TITAN brand
Landing Gear: JOST(D200T) or China brand 28T
Kingpin: JOST 2.0 or 3.5 inch bolt-in king pin
Suspension: Mechanical suspension
Leaf Spring: 90(w)mmx13(thickness)x10layers or 10mm x12mmx12 layers
Pneumatic Braking System: WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); 45L air tank
Rim: 9.00-22.5/8.00-20/8.5-20 Chinese brand
Tire: 12.00R22.5/315.80R22.5/11.00R20/12.00R20 brand can be optional
ABS: Optional
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layer of top coats.
Accessories: One standard tool box
Shipping Terms: By bulk cargo, RORO or 40HQ containers

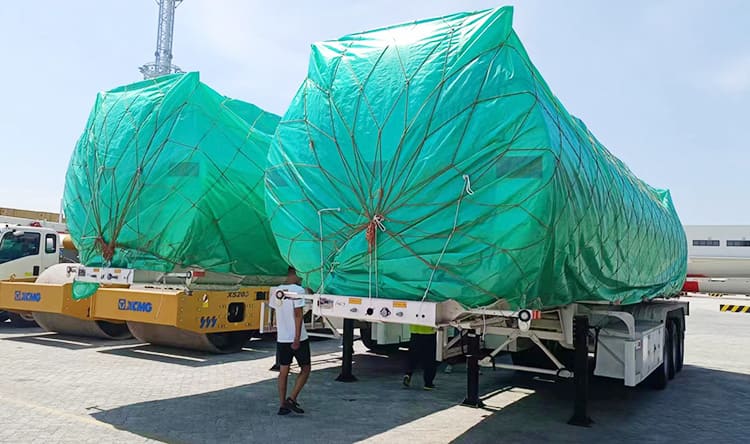

TITAN will cover the petrol tanker for sale with a rain cloth and wrap the entire body to prevent the petrol tanker for sale from being soaked in seawater and rusting. Before packing, TITAN will spray 2 layers wax to protect the tank body, which can prevent the trailer from being rust.
Through this video, you can learn about different types of fuel tanker trailers, as well as the process, testing, packaging and customer feedback, etc.
