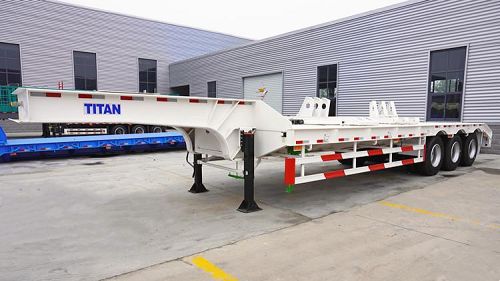

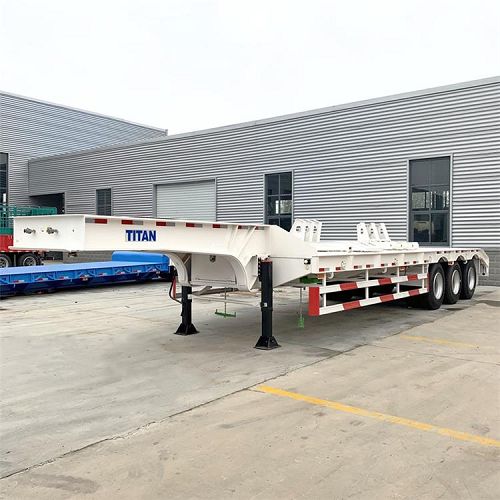

60 Ton Semi Low Bed Trailer

Product description:

TITAN semi low bed trailers are widely used in heavy machines transportation.

TITAN 60 ton semi low bed trailer can satisfy the concentrated force, the anti bump, the distortion resistance and adopts HG60 High Strength Steel Material. we use it to make sure that our TITAN low bed trailer is with a long service life and to avoid unnecessary maintenance.

Tri Axle 60 Ton Semi Low Bed Trailer for Sale - TITAN Vehicle

Tri Axle 60 Ton Semi Low Bed Trailer for Sale - TITAN Vehicle

Specification：

Overall dimension: 16000mm * 3000mm *3400mm

Loading capacity(T): 60T

Axle: 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20

Tire: 11.00R20

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.

Bottom Platform: 5mm thick checkered plate

Ramp: Spring ramp

Gooseneck: Optional

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Advantage:

1. Main beam adopts HG high strength steel, with high loading capacity.

2. Side beam adopt “H” steel, the durable design avoid the side beam to have the deformation.

3. The loading ramps is made by high strength steel, with high loading capacity, will not happen to the deformation when carry heavy equipment.

4. polyurethane paint, with long service lift, and avoid the vehicle get rust.

5. World famous brand spare part, ensure high quality and save costs.

Fudeng Tri Axle Low Loader | 60/80 Ton Drop Deck Lowbed Semi Trailer for Sale Price

Through this videos, you can learn about different types of lowbed semi-trailers, as well as the process, testing, packaging and customer feedback, etc.

Please click "TITAN Lowbed Trailer" to get detailed video!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!624389772
