This 60 tons fence truck trailer adopts an advanced production concept, uses automatic submerged arc welding technology, and uses high-strength carbon steel to make the main beam of the fence truck trailer to ensure the integrity of the beam and make the beam more durable.
The main beam is made of low-carbon and high-strength alloy steel, which has higher bearing capacity, can carry more goods, and reduce your transportation costs.

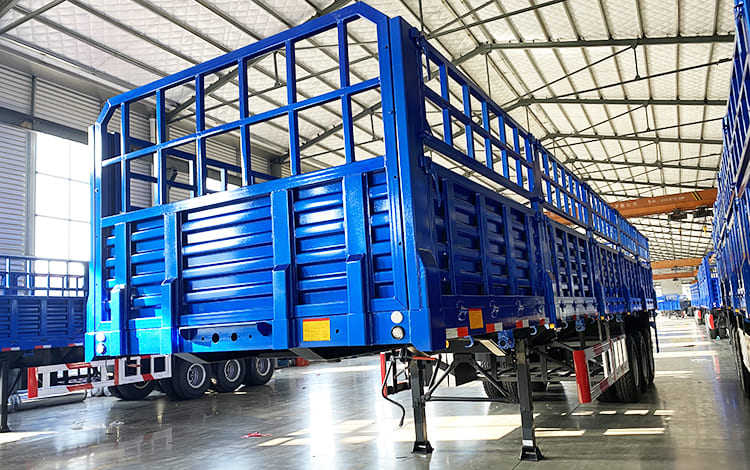

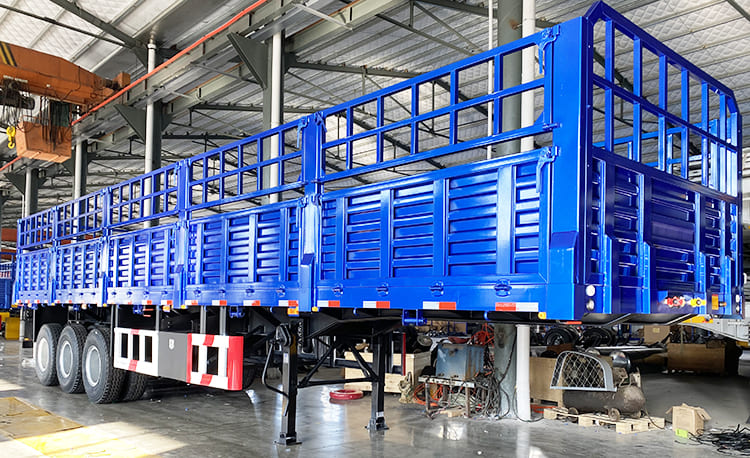

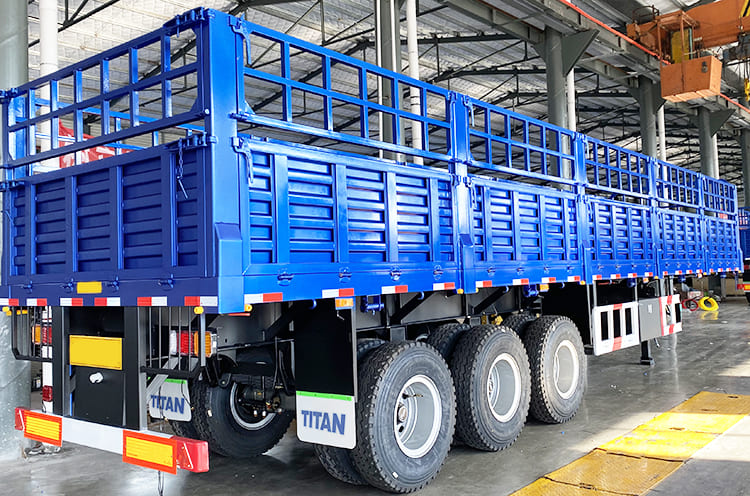

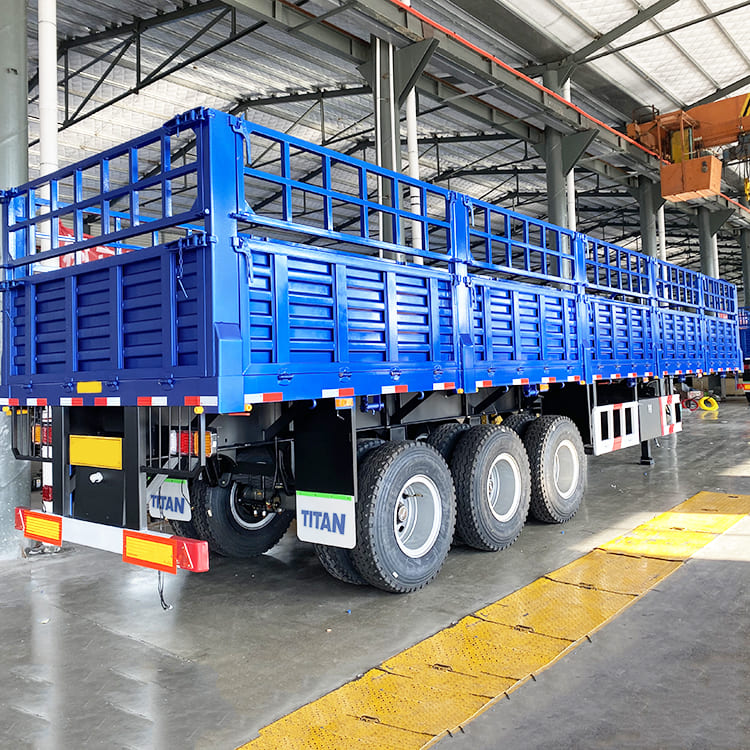

60 Tons Fence Truck Trailer with Stakes for Sale Price
60 Tons Fence Truck Trailer with Stakes for Sale Price
60 Tons Fence Truck Trailer with Stakes for Sale Price
Dimension(mm): 12490x2490x3500mm
Loading capacity(ton): 50T
Axles: 3 axles, 13T/16T ,FUWA/ BPW/ Huajing Brand
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Bottom Side Beam: 16mm or 18mm steel channel (material: Q235 steel)
Platform: 3mm-thick checkered plate
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

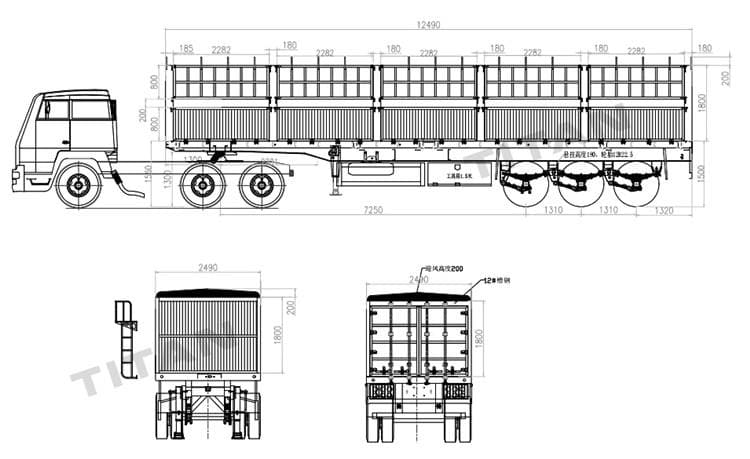

Drawing of the 60 Tons Fence Truck Trailer with Stakes
1. TITAN Vehicle uses high-strength steel to manufacture the fence truck trailer with stakes, so that the trailer has higher carrying capacity and longer service life.
2. TITAN Vehicle Use advanced welding technology to manufacture the main beam of the animal transport trailer, making the chassis of the trailer stronger and less prone to deformation.
3. TITAN adopts world-renowned brands as fence truck trailer accessories, such as jost landing gear, etc., which prolongs the life of the trailer.
4. fence truck trailer can be customized and produced according to customer needs, with good quality and low price.

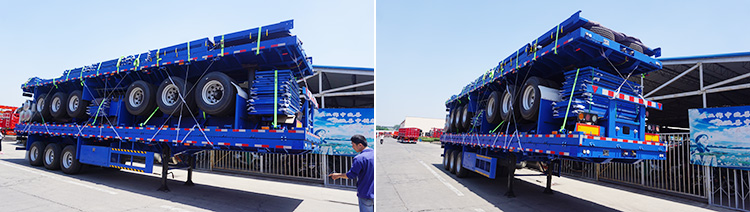

Through this video, you can learn about different types of fence semi-trailers, as well as the process, testing, packaging and customer feedback, etc.
