64m Extendable Modular Wind Blade Trailer

64m Extendable Modular Wind Blade Trailer

65500 USD

Price Reference Only.

TITAN produces Extendable Modular Wind Turbine Blade Trailer for Carrying 76 meters to 90 meters offshore wind turbine blades.

SKU: 64m Extendable Wind Blade Trailer
GTIN: 06975766113445
MPN: TITAN6810007
Brand: TITAN VEHICLE

Product Description:

TITAN Extendable Modular Windmill Turbine Blade Trailer for Carrying Wind Blade

TITAN Extendable Modular Trailer adapts perfectly to haul 76 meters to 90 meters long windmill turbine blade transportation and long bulky goods. TITAN Extendable Modular Trailer are noted for their highly robust frames and outstanding stability of the extension beam. the high standard of the workmanship and welding process ensures easy adjustment of the extension beams.

TITAN Extendable Modular Trailer can be adjusted to fit any size or band of Turbine Blade, TITAN can provide you the customize wind blade trailer to meet your transport requirements.

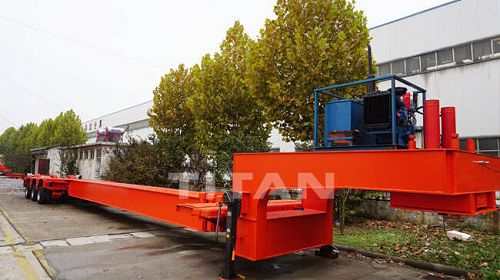

52m Extendable Modular Trailer

 Extendable modular trailer for 76 meters to 90 meters offshore wind turbine blades

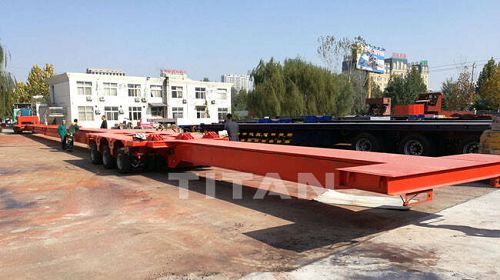

TITAN 52 meters Extendable Modular Trailer

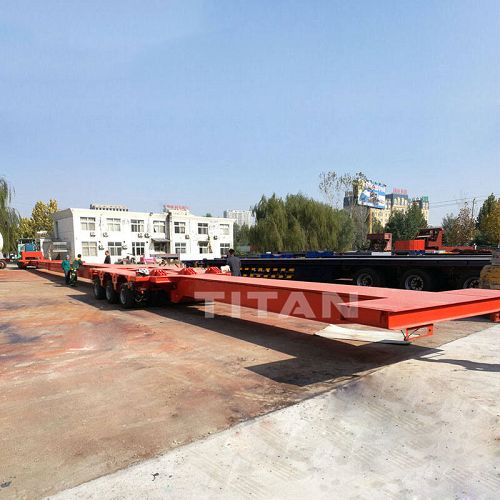

TITAN 64 meters Extendable Modular Wind Trailer

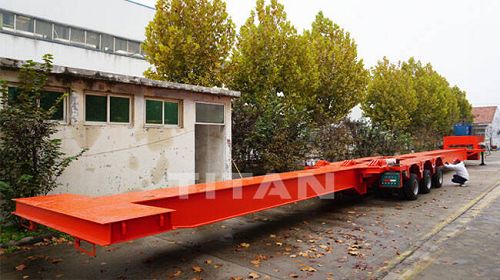

52m Extendable Modular Trailer



Specification:

Brand: TITAN Extendable Modular Trailer

Closed state dimension: 27740mm*3000mm*900mm

Total length: 64000mm after extension

Loading capacity: 25-45 ton wind blade

Hydraulic power station: Diesel engine

Axle: 3 units steering axle

Suspension: Hydraulic suspension

Tyre: 24 units, Triangle brand

Braking system: WABCO emergency valve

King pin: 3.5 inch high tensile steel bolted type

Landing gear: JOST C200

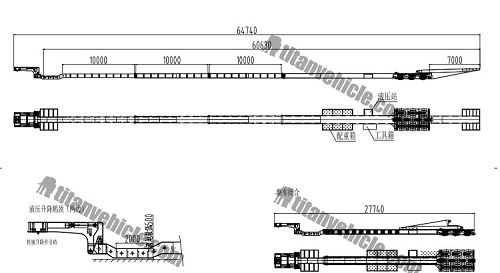

64m Extendable Modular Wind Blade Trailer drawing



Advantage:

1. Trailer's length from 27 meters extend to 64 meters.

2. Transport the 76 meters to 90 meters offshore wind turbine blades.

3. Loading capacity is 25-45 tons wind blade.

4. Steerable axles, all wheels steering.

5. Highly robust frames and outstanding stability of extension beam.

6. Mechanical spring suspension, air suspension or hydraulic suspension is an option.

7. Manual valve operation and wireless remote control.

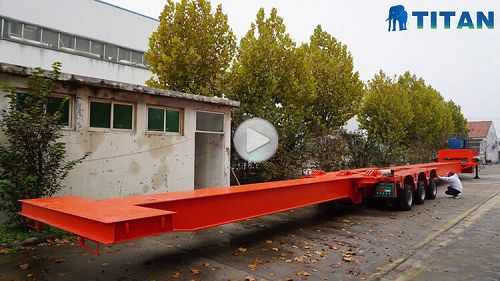

64m Extendable Modular Trailer details display video

64m Extendable Modular Trailer details display video



Please click "TITAN Wind Blade Trailer" to get detailed video!



Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
