Multi axle low bed trailer

Multi axle low bed trailer

41500 USD

Different Parameters, Different Price. Price Reference Only.



TITAN Hydraulic modular platform trailer, multi axle trailer and modular trailer for transporting oversize and abnormal cargo.

SKU: Multi axle low bed trailer
GTIN: 06975766111472
MPN: TITAN6811012
Brand: TITAN VEHICLE

Product Description:

TITAN produces Hydraulic Modular Platform Trailer for transport oversize and over weight freights that split apart series hydraulic full trailer that can be assembled into weight from 45 tons to 2200 tons of various series.

TITAN hydraulic modular platform trailer can match hydraulic gooseneck trailer, lowbed, combine frame, slweing table, tow-bar, bridge beam and power pack to meet the customer demand.

Now our modular low bed semi trialer specially for electirc power industrial mining metallurgy, chemical industry, nuclear industry, water conservany engineering, railway construction.

Multi axle hydraulic low bed trailer

Multi axle hydraulic low bed trailer

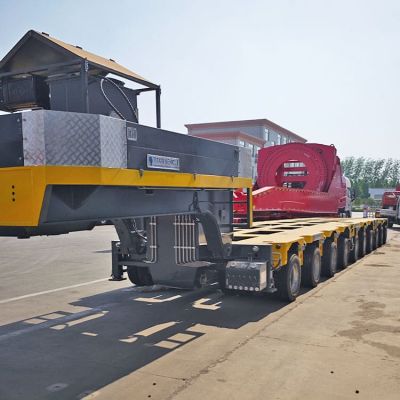

TITAN Hydraulic Modular Platform Trailer

TITAN Hydraulic Modular Platform Trailer

Multi axle hydraulic low bed trailer

Multi axle hydraulic low bed trailer

Multi axle hydraulic low bed trailer

Multi axle hydraulic low bed trailer

Wind Blade Carrier Transporter



Advantage:

1.Hydraulic suspension system

2.Platform height is adjustable

3.All wheels can be staeerable

4.Small turning radius, 48° steering angle with hydraulic gooseneck

5.Both automatically and manually steering

6.Extremely robust and durable construction, extremely high load bering capacity.

7.Hydraulic axle suspension adpt uneven road condition.

8.Lifting cylinder make trailer automaticall responts tough road conditions.

9.Safety valve in hydraulic circuit.

10.Brake air tank ensure immediate brake.

11.Pendular axle and suspension easy for maintenance.

12.Pneumatic and hydraulic quick coupling.

13.Modules connectiung pin adopts hydraulic cylinder make longitudinal coupling fast

14.Dual-circuit hydraulic system gurantee safe work condition



Specification:

Frame

The box-shaped centre beam with its stable cross beams offers ahigh degree of frame stability and thereboy optimal loading options, the peneumatic and hydraulic oil tanks as well as the steering system are integrated into the chassis frames and are thereby protected from damage, A reinforced loading platfrom enable extremly concentrated load, The optimised lashing coupling ensures trouble free combination of the longitudinal combination

Axle compensation

Hydraulic axle compensation for the individual swing axles can be connected to differing support circles depending on the load, in order to ensure uniform axle loads, This guarantee optimal longitudinal and lateral compensation in uneven terrain and also regulates extrem crossfalls

Steering

A hydro-mechanical all-wheel mechanically controlled 2 -circuit steering system ensures that full functionality is maintained, even in the event of failure in one of the steering circuits. The steering angle is up to +/- 45° and the steerin gcan be quickly adapted to the corresponding vehicle combination via the track rods which are accessible from above. An electronic steering synchronisation system is additionally available for vehicles in a free combination.

Accessories and Combination Options

TITAN offer optional extensive range of accessories to enhance your professional transport solution



Please click "TITAN Wind Blade Trailer" to get detailed video!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
