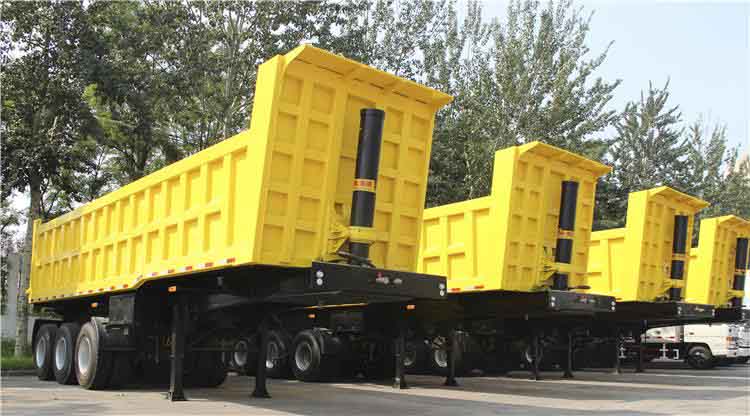

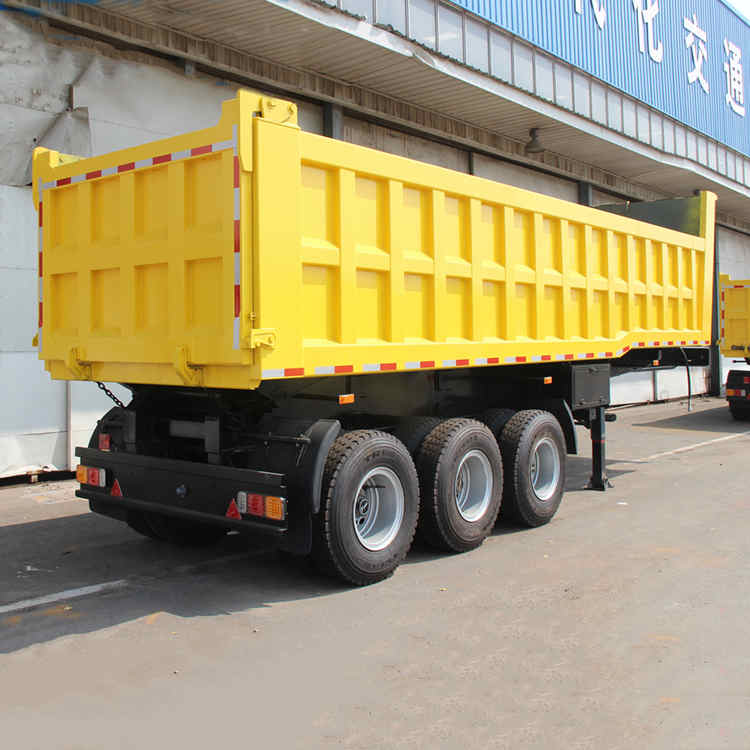

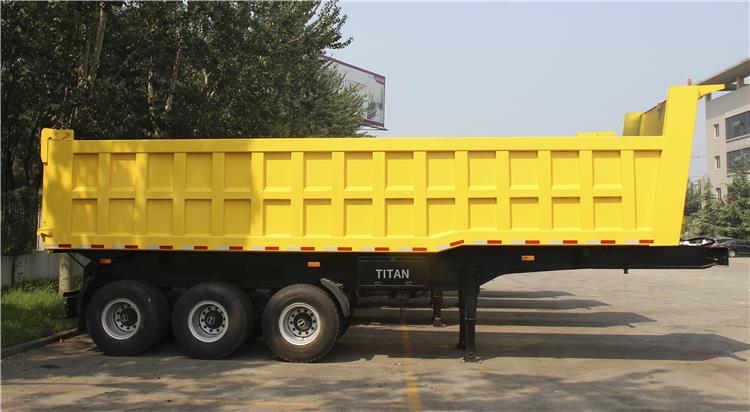

TITAN 3 axle end dump trailers adopt high strength steel to make it durable when load the sand or small stones or rocks. And the loading capacity are 40t, 60t, 80t.
TITAN Tippers trailer equipped with reliable hydraulic HYVA cylinder. We can customize the tipper trailers according to your special need, like U shape dump, end dump, side tipper, and container tippers including skeleton and flatbeds trailers.
We use well-known brand axles, FUWA, BPW. It’s with high performance, and reliable to use.
End Dump Trailer Prices for Sale
End Dump Trailer Prices for Sale
End Dump Trailer Prices for Sale
Dimension: 8500mmx2500mm x3950mm ( inside dimension )
Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: T700 steel.
Bottom Platform: 4 thick checkered plate
Side wall thickness: 4mm
Total volume(m³): 30m³
End plate: 8mm

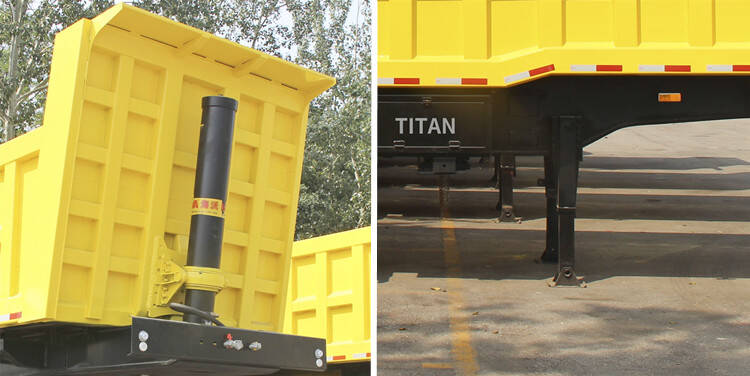

Lifting System: Full set of HYVA lifting cylinder
Axle: 13T/16T, FUWA / BPW / TITAN Brand
Rim: 8.0-20 or 9.00-20
Tire: 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
