TITAN 3 Axle 40 Foot Flatbed Semi Trailer for Sale adopts high strength steel material on our trailers, which makes the 40ft tri axle flatbed semi trailer more durable and stronger.The service life will be longer,more than 10 years.
40ft tri axle flatbed semi trailer for sale near me has high stability,large loading capacity, especially for some large cargo. cimc dongyue, liangshan cimc dongyue vehicles co.,ltd, cimc china, cimc trailer, flatbed trailer for sale, tri axle trailer, 40 foot trailer, flatbed trailer for sale near me, tri axle flatbed trailer for sale.

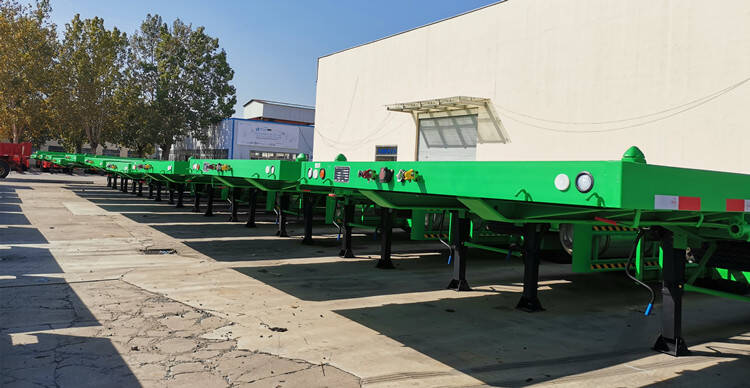

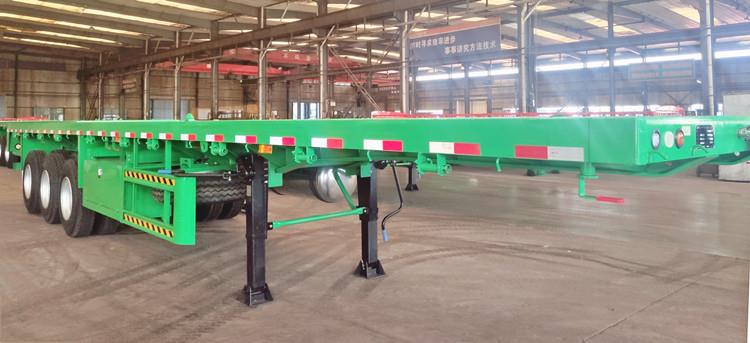

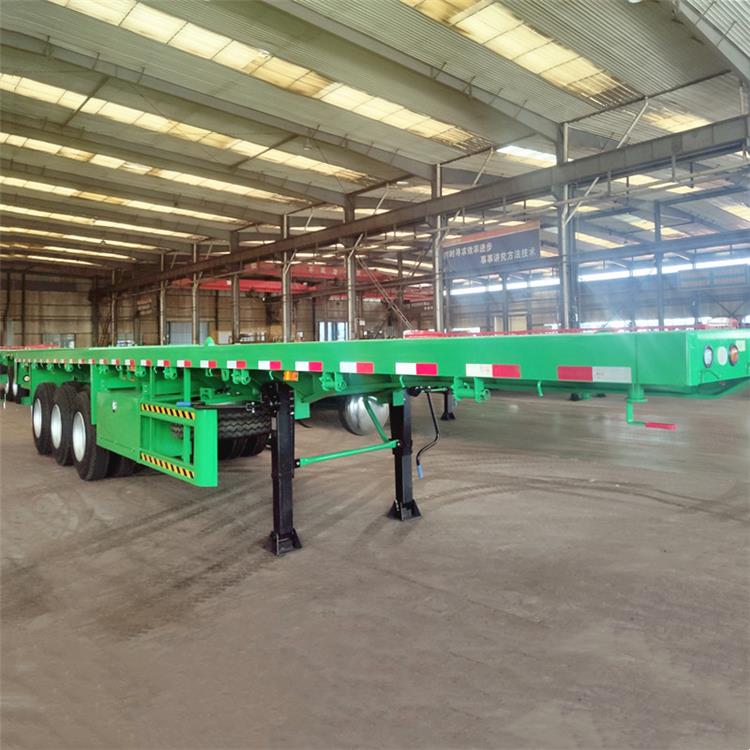

Tri Axle 40 Foot Flatbed Trailer for Sale Near Me
Tri Axle 40 Foot Flatbed Trailer for Sale Near Me
Tri Axle 40 Foot Flatbed Trailer for Sale Near Me
Model: Tri axle flatbed semi trailer
Dimension(mm): 12500x2500x1550mm
Loading capacity(ton): ≤60T
Axles: 3 axles, 16T ,FUWA/ BPW/ Huajing Brand
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5

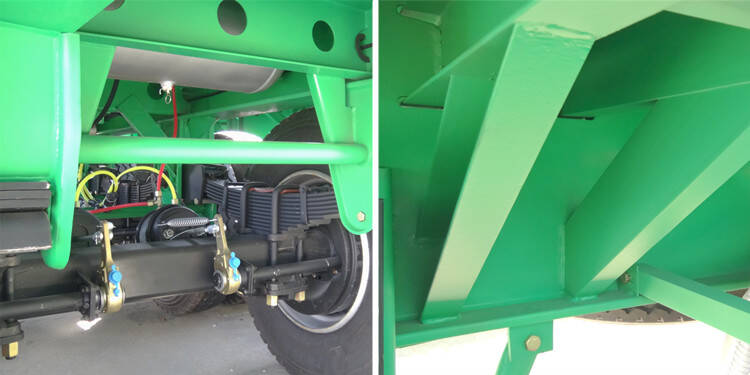

Suspension: Mechanical suspension
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Side Beam: 16mm or 18mm steel channel (material: Q235 steel)
Platform: 3mm-thick checkered plate
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats.
1. Hight Quality container locks, make sure the stable and safety of the loads.
2. TITAN Vehicle adopts high strength steel material to manufacture the flatbed trailer, it can make the flatbed trailer have a higher loading capacity and a longer service life.
3. Durable mechanical widened spring suspension, make sure the stability and safety.
4. polyurethane paint, the vehicle is more beautiful, effective protection of the body against rust, extend the life of the vehicle.
5. Also the trailers floor is checker plate, this will keep the other bulk cargo more stable.
