Different Parameters, Different Price. Price Reference Only.

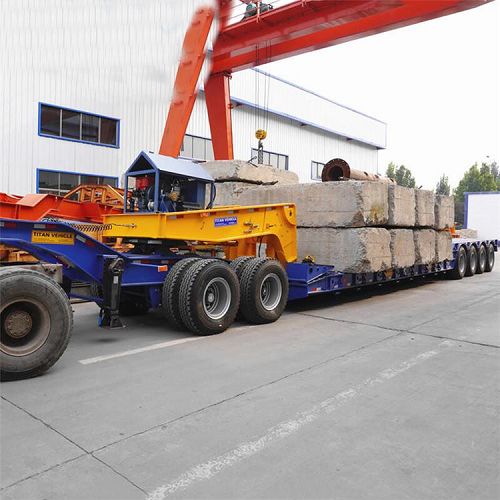

150T Detach Trailer for Sale with Dolly is a type of semi trailer which can be used to load heavy loads, transport excavators etc. TITAN can produce 2/3/4 axle, 60/80/120/150ton lowboy equipment trailers.
150T Detach Trailer also has a tighter turn radius. This lets you cut corners tighter than a bumper pull trailer and lets you maneuver the trailer in tighter spaces. This tight turn radius can be a double-edged sword, though. It takes a few tries to learn, and if you mess up you can take off the trailer’s fender, to say nothing of damaging street signs and other cars on the road.
Overall dimension：17900mm * 2500+250*2mm *2200mm(platform 800mm)
Loading capacity(T): 50-150T
Axle: 4 axle with 2 axle dolly; 13T/16T, FUWA / BPW / TITAN Brand
Tire: 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension or air suspension
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Tare weight: About 9.5-19T
Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.
Bottom Platform: 5mm thick, checkered plate
Hydraulic cylinder: 12KW diesel engine with hydraulic station
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust
Through the video you can learn more about the 150ton detachable gooseneck trailer , detachable gooseneck trailer for sale , 4 axle detachable gooseneck etc.
Please click " TITAN Detachable Gooseneck Trailer" to get the detailed video!
Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
