The drop deck trailer uses the structure with a lowered center of gravity to ensure maximum stability on the ground while controlling the minimum height of the floor plate to match the terrain of Guam roads. The 50 tons low loader trailers sale is specially designed for long distance transportation of large equipment, and can be used to transport agricultural equipment or construction equipment, simplifying the process of moving heavy equipment and machinery, and improving efficiency for project engineering.
Drop Deck Trailer | 50 Tons Low Bed Loader Trailers Sale in Guam
Drop Deck Trailer | 50 Tons Low Bed Loader Trailers Sale in Guam
Model: 50 Tons Drop Deck Trailer
Overall Dimension: 16000mm*3000mm*3400mm
Bearing Capacity: 80 ton
Floor Plate: 5mm thick pattern plate
Side Beam: 300mm high, 8mm thick
Axles: 3 axles, 13ton
Tire: 12 units, 12R22.5
Ramp: Spring Ramp
Landing Gear: 28 Ton
Suspension: mechanical suspension

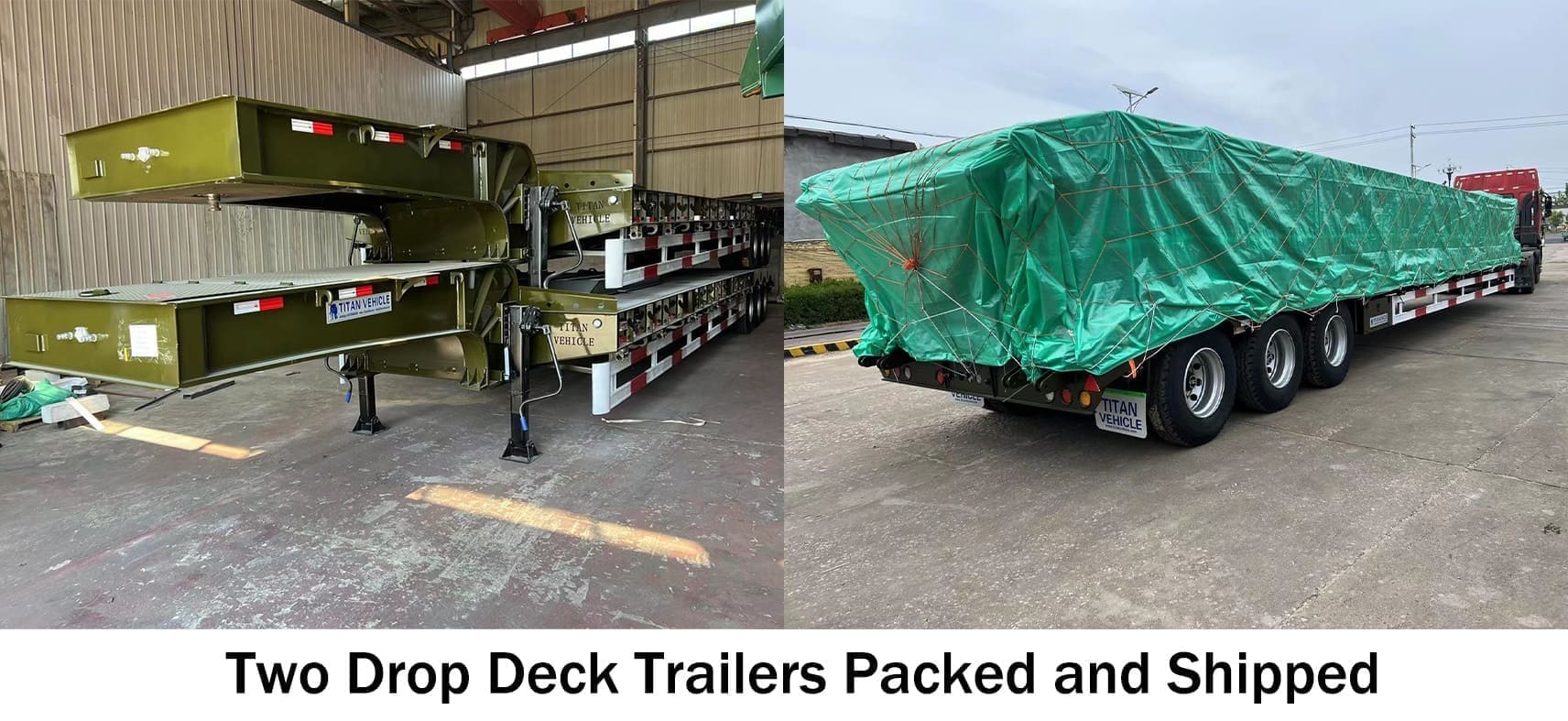

Transportation can be shipped by a container. Also the drop deck trailer can shipped in RORO ship. TITAN spray wax for all 50 tons low loader trailers sale for sale and cover with waterproof raincoats before delivery, which can effectively prevent 3 axle low bed loader trailer from being corroded by seawater and sea winds during shipping.

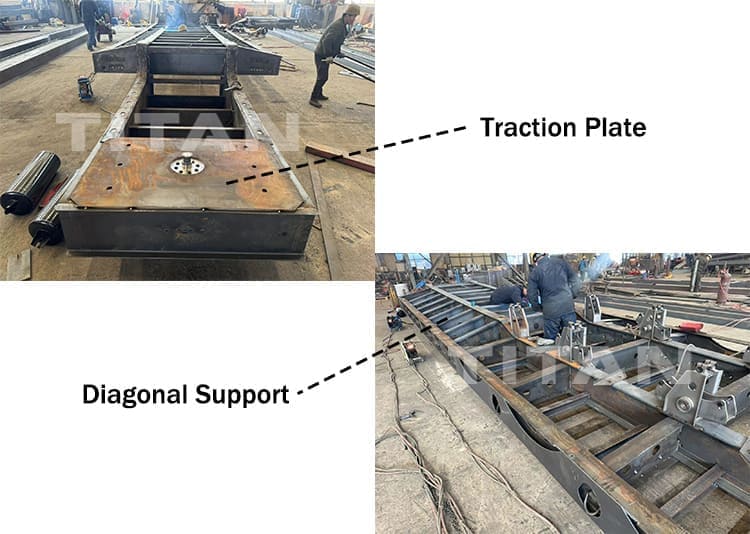

The drop deck trailer needs to be connected to a truck head to start transportation, so the low bed loader trailer's traction plate needs to have extremely strong hardness to ensure that the two parts will not fall off easily. The 50 tons low loader trailers sale traction plate is made of a whole piece of steel plate, which ensures the integrity of the structure and avoids splitting under heavy load. At the same time, the thickness of 12mm can ensure that the traction can be smoothly transmitted to the drop deck trailer, and has a certain buffering effect on the impact load. When encountering bad weather or rugged roads, the 50 tons low loader trailers sale traction plate can show good traction and impact resistance.
The low bed loader trailer's braking system is equipped with a 16 ton brake pad, which can significantly increase the speed of braking response and reduce the braking distance by more than 5 meters. For the air pipe of the braking system, TITAN drop deck trailers use high pressure rubber air pipes, which can extend the service life by more than 10 years; at the same time, the wires inside are made of durable cables, which ensure a service life of more than 5 years. These designs enable customers in Guam to achieve a balance between cost and safety.
The 50 tons low loader trailers sale cross member is firmly connected to the main beam using diagonal supports to form a stable structural frame for the drop deck trailer. The spacing of the diagonal support is controlled within 500mm, so that each point of the main beam can be evenly compressed to avoid deformation of the low bed loader trailer body. The 50 tons low loader trailers sale cross member is made of HG60 high strength steel. The thickness of 6mm can carry larger tonnage of equipment and is suitable for the various transportation needs of Guam customers.

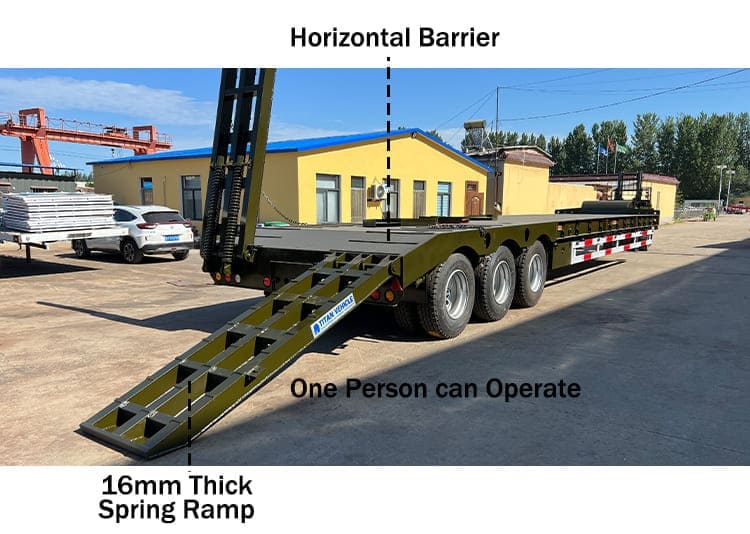

In order to reduce the risk of the transported equipment moving and sliding, the TITAN drop deck trailer floor plate uses a 5mm thickened patterned plate. Other manufacturers often use a 4mm floor, which is not as strong and durable as the TITAN low bed loader trailer. The application of the 50 tons low loader trailers sale patterned floor plate not only takes into account the aesthetic effect, but also greatly enhances the friction of the floor plate to play an anti-slip role. A horizontal barrier is designed at the rear end of the low bed loader trailer to ensure the safety of large equipment when placed.

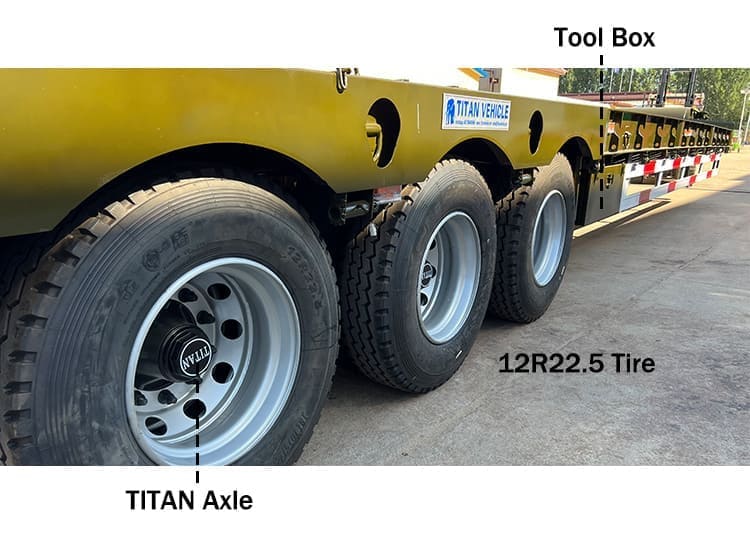

TITAN has many years of experience in producing axles. With a in-depth research on market demand, TITAN 50 tons low loader trailers sale can ensure the stability of the drop deck trailer axle during driving in Guam and a longer service life. The low bed loader trailer uses a 3 axles of 13ton. The multi-axle can greatly increase the load capacity of the drop deck trailer and avoid the risk of axle breakage due to overloading. Compared with ordinary axles, the 13 ton axle can avoid axle deformation caused by long-term bumps or gravel impact on complex roads in Guam.
