Folding truck crane have become an essential lifting solution across industries that require both heavy-duty performance and maneuverability. Folding truck cranes provide a combination of compact storage, flexible articulation, and powerful lifting capabilities that make them highly valued in modern industries.
Unlike traditional straight boom cranes, the folding truck crane is designed with multiple articulated joints that allow it to fold and extend like a human arm. This unique structure offers superior flexibility, enabling operators to handle lifting tasks in confined spaces while maintaining impressive load capacities.
The combination of compact storage, versatile reach, and precise control makes folding truck crane a preferred choice in transportation, construction, logistics, and utility services. Their adaptability ensures that companies can complete more tasks with a single piece of equipment, increasing efficiency while reducing operational costs.
Cab: HW76 with new front fascia
Transmission: HW19710 transmission
Drive axle: MCX16ZG dual rear axle
Front axle: VGD95 front axle

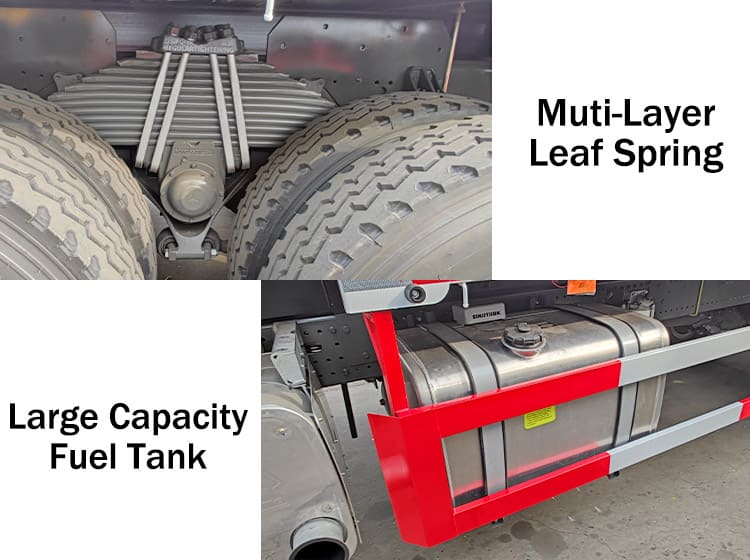

Fuel tank: 400L
Body: SQ8ZK3Q, 8-ton knuckle boom crane

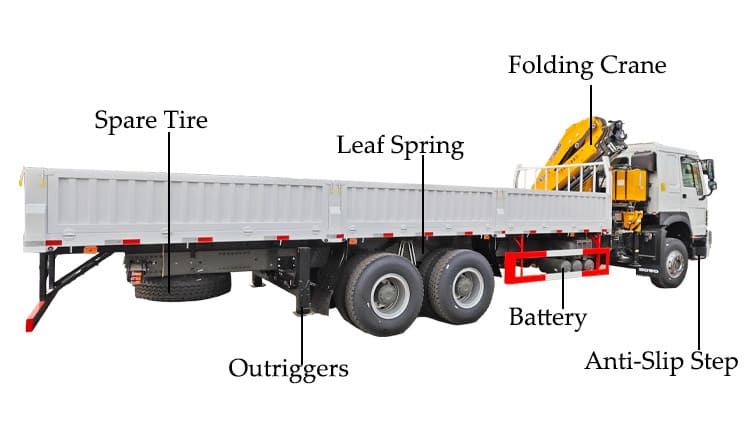

At the foundation of every folding boom truck crane for sale is the chassis and base frame, which provide stability and integration with the truck. The chassis must support not only the weight of the crane but also the additional stresses caused by lifting and rotation. High strength steel is commonly used in the construction of the base to ensure durability under demanding workloads.
Reinforcements are carefully designed to distribute forces evenly, preventing damage while maintaining safety standards. The seamless integration of the folding truck crane chassis also allows for road mobility, ensuring that the equipment can be deployed rapidly to different job sites without requiring special transport arrangements.

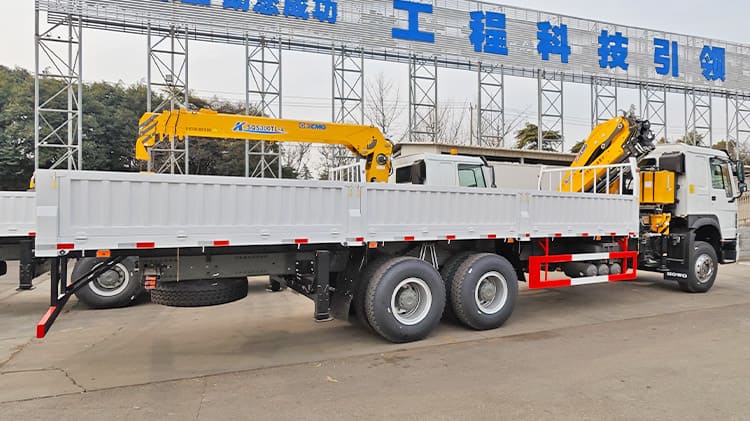

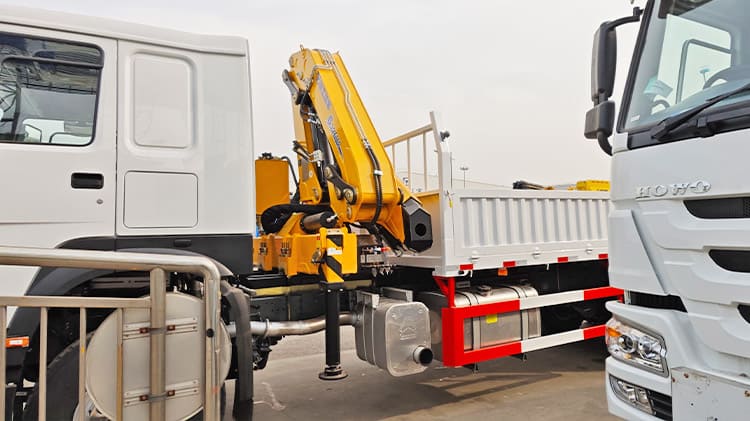

The most distinctive part of a folding boom truck crane for sale is its articulated boom, which is divided into multiple sections connected by hydraulic joints. This structure enables the boom to fold compactly when not in use, saving space and making transportation easier.
Powering the folding truck crane boom and ensuring smooth, controlled motion is the hydraulic system. This system includes pumps, cylinders, and control valves that convert mechanical energy into fluid power. The hydraulic configuration allows for simultaneous movements, such as lifting, extending, and rotating, making operations faster and more efficient.
Advanced hydraulic systems are equipped with features that enhance precision, including proportional control for gradual adjustments and load-sensing technology to optimize power distribution. To ensure reliability, the system is also protected with safety components such as pressure relief valves and anti-drop mechanisms. The efficiency of the hydraulic system is a key factor in the overall performance of a folding truck crane.

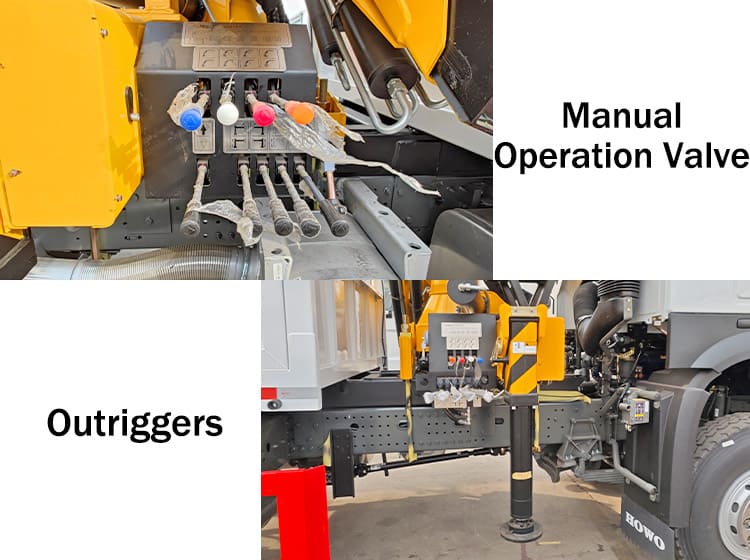

Stability during lifting operations is maintained by the outriggers, extendable supports that are deployed from the base of the crane. Outriggers transfer the lifting load from the folding boom truck crane for sale to a wider footprint, preventing tipping and ensuring safe operation on various surfaces.
These supports are often hydraulically operated, allowing for quick setup and adjustment to uneven ground. Some advanced models integrate automatic leveling systems, further improving safety and reducing the time required for preparation. The presence of reliable outriggers gives operators confidence when handling heavy loads, even at extended boom lengths.
The control system serves as the interface between the operator and the machine. Traditional folding boom truck crane for sale include manual control stations mounted on the side of the truck, but modern versions often employ remote-control technology.
Another crucial component is the hook and lifting attachments, which connect the folding boom truck crane for sale to the load. The hook block or lifting hook is designed to carry different types of cargo securely, often equipped with a safety latch to prevent accidental release.
In addition, folding truck cranes can be fitted with specialized attachments such as grabs, buckets, or pallet forks, expanding their functionality beyond simple lifting. This versatility allows businesses to use one crane for multiple tasks, increasing return on investment and reducing the need for additional equipment.
Supporting the entire system are the safety and auxiliary features that ensure dependable operation under demanding conditions. Load moment indicators, overload protection systems, and emergency stop functions are commonly integrated into truck cranes.
Additional elements such as work lights, storage compartments, and onboard oil coolers improve usability and maintain system performance during long hours of operation. These enhancements contribute to a machine that is not only powerful and flexible but also reliable and operator-friendly.
