Truck mounted cranes are widely valued across numerous industries due to their mobility, lifting capacity, and operational efficiency. This combination not only saves time but also reduces overall costs, making these cranes a practical solution for sectors such as construction, logistics, utilities, and other projects requiring versatile lifting.
Maximum Lifting Height: 10-15m
Maximum Lifting Weight: 25t
Shaft Number: 2
Crane Jib: Three-Arm
Type: Straight Arm
Rotation Angle: 360 Degree
Outrigger Span: 2280-5100
Specification: 2260 kg
Package Size: 440cmx30cmx70cm
Package Gross Weight: 2200.000kg
Telescopic truck mounted cranes combine the mobility of a truck with the lifting capacity of a crane, allowing operators to carry out loading, unloading, and lifting tasks without needing multiple machines.
One significant advantage of these cranes is their design and size, which often permits travel on public roads without special permits in many regions. Because the crane structure is integrated directly into the truck chassis, the unit can be transported quickly and deployed efficiently to a variety of job sites. Compared with fixed cranes, heavy duty truck mounted cranes provide far greater operational flexibility, as they can be relocated and adjusted to meet changing worksite requirements with minimal downtime.

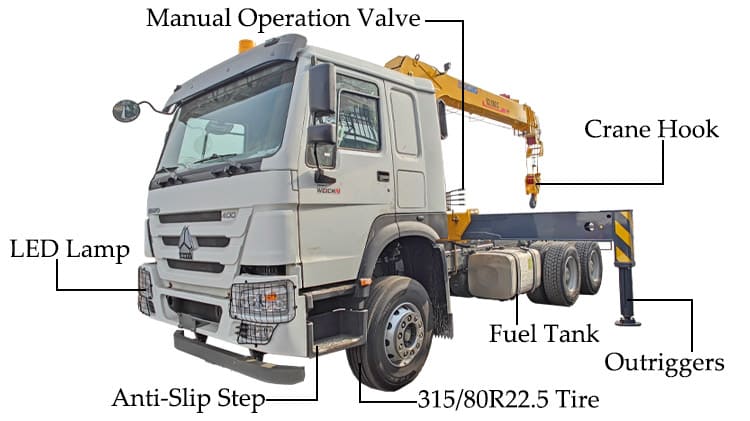

The chassis forms the backbone of a truck mounted crane, serving both as the transport vehicle and as the structural base for lifting operations. Typically constructed on a heavy duty truck frame, the chassis is designed to bear significant weight while complying with road safety regulations.
It must withstand the combined stresses of travel and lifting, so manufacturers reinforce the frame to support the concentrated weight of the crane base and lifted materials. This reinforcement ensures stability and consistent performance even when operating under maximum load conditions.

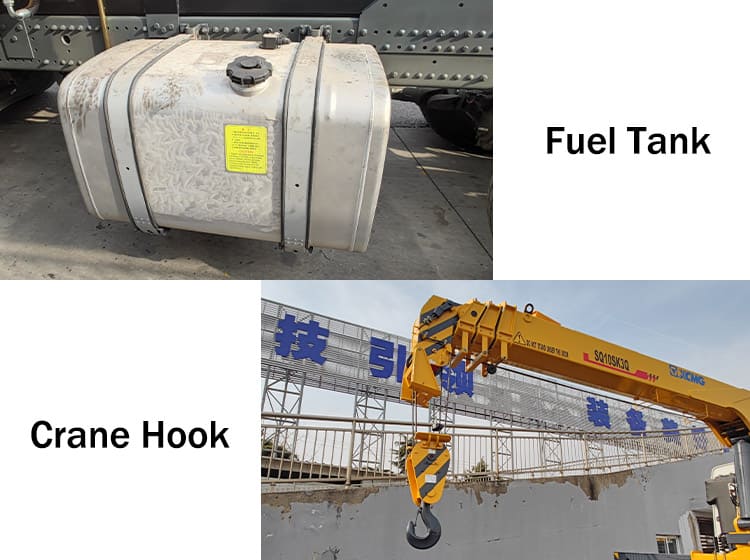

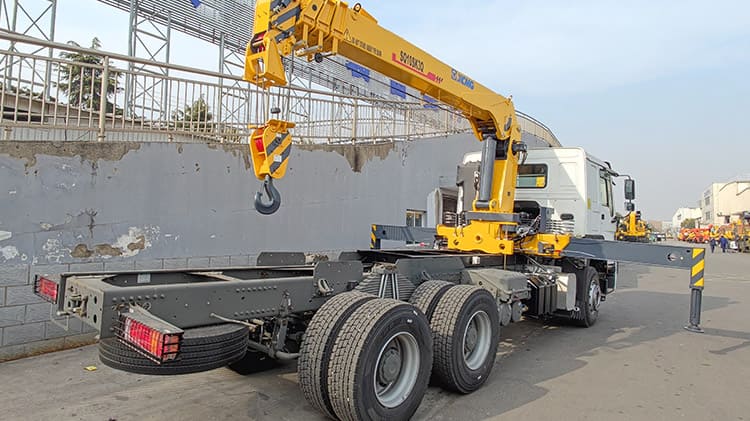

At the heart of the heavy duty truck mounted crane lifting capability is the boom, which may be telescopic or folding. Telescopic booms extend in multiple segments, allowing the crane to reach elevated areas or navigate over obstacles with ease.
Modern booms are generally made from high strength steel to maintain rigidity while keeping the overall weight manageable. Many are equipped with hydraulic extension systems that allow operators to extend or retract sections smoothly and precisely, improving control during complex lifts.
The hydraulic system is central to both lifting and rotating the crane. Utilizing pumps, cylinders, and control valves, it converts engine power into controlled mechanical movement. More advanced systems enable multi-function operation, allowing the boom to lift, rotate, and extend simultaneously. For safe operation, components such as pressure relief valves, load-holding valves, and flow control mechanisms are included to prevent instability or uncontrolled motion.

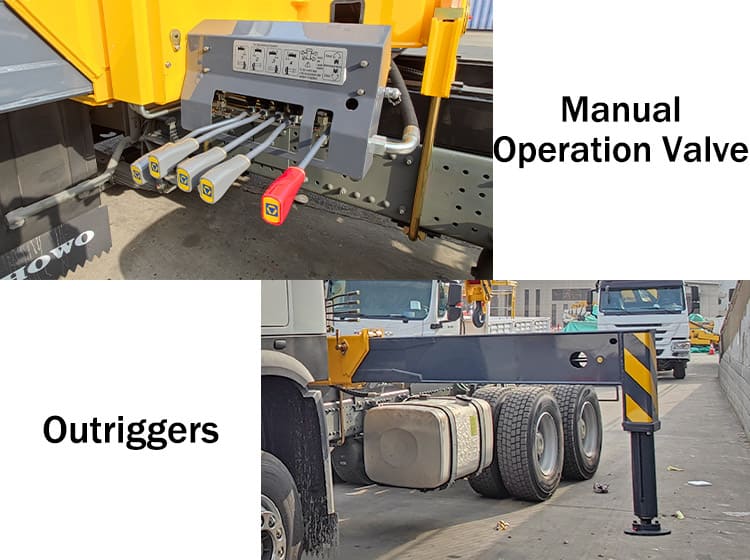

Outriggers are another critical safety feature, providing a stable foundation and preventing tipping when lifting heavy loads at extended reach. These extendable supports widen the crane's base and can be adapted to uneven terrain.
Many telescopic truck mounted crane models offer hydraulically-assisted rapid deployment and automatic leveling systems, which enhance both safety and efficiency, reducing setup time at new work sites.
The operator interface connects human commands with the telescopic truck mounted crane mechanical systems. Earlier models relied on a control station mounted on the truck, but many contemporary cranes now use remote-control technology. This allows operators to maintain a clear line of sight on the load while staying at a safe distance. Digital panels display real-time data such as boom angle, load weight, and safe working limits, enabling operators to work efficiently within safety parameters.
Additional safety and support systems further increase reliability and ease of use. These may include load moment indicators, emergency stop functions, overload protection, and anti-sway devices. Optional attachments such as work lights, storage compartments, and built-in winches expand the telescopic truck mounted crane versatility, allowing it to handle a wider variety of tasks while maintaining dependable performance in demanding environments.
From the reinforced chassis to the advanced hydraulic system and telescopic boom, every component of a heavy duty truck mounted crane contributes to operational effectiveness and safety. The combination of mobility, lifting capability, and operator-friendly controls allows these cranes to reach job sites directly, set up quickly, and complete complex lifting tasks efficiently.
This integration of transport and precise lifting makes heavy duty truck mounted crane an adaptable and reliable choice for construction, logistics, utilities, and other demanding heavy-duty applications.
