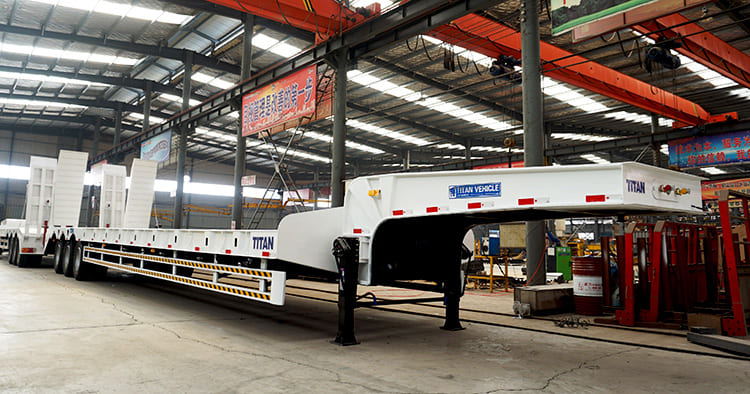

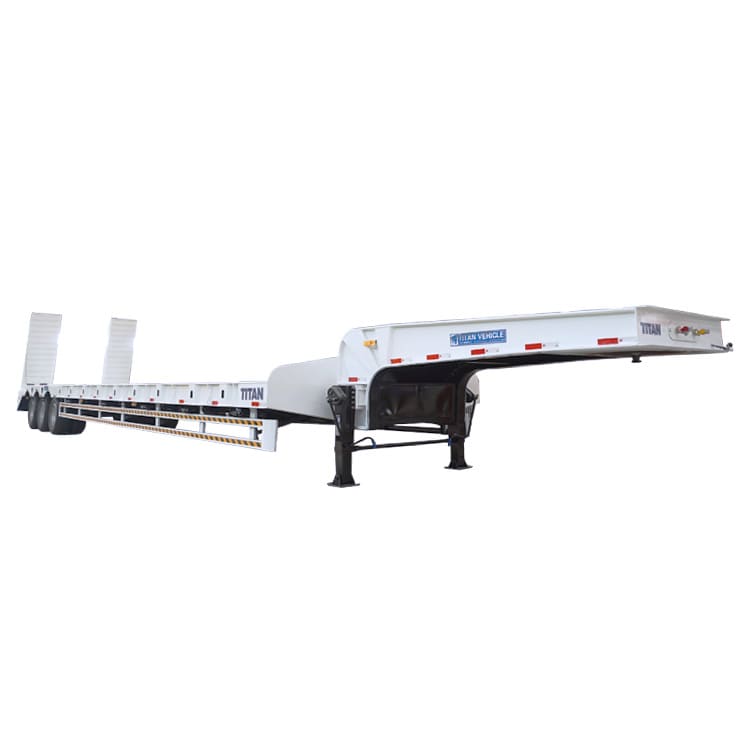

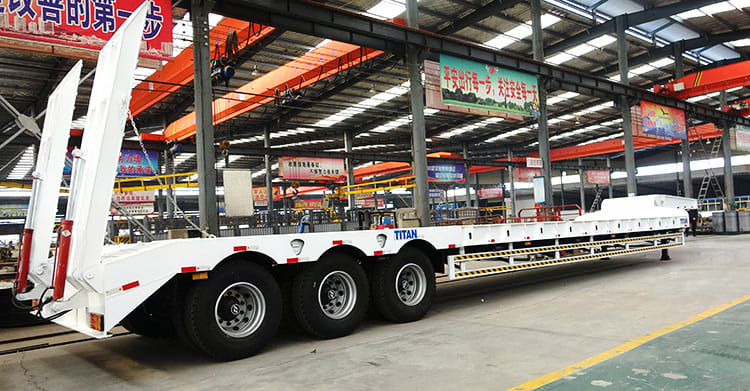

3 Axles 80T Lowbed Transport Trailer is suitable for the transportation of various kinds of mechanical equipment, large objects, highway construction equipment, large tanks, power station equipment and various steel materials. fuduo

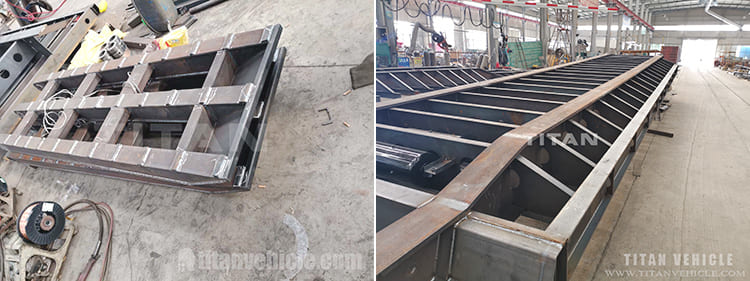

The 3 axles 80t lowbed transport trailer uses a concave beam (or well-type) frame, that is, the front section of the frame is a gooseneck (the traction pin of the front section of the gooseneck is connected to the traction saddle on the tractor, and the rear end of the gooseneck is connected to the semitrailer frame. connected).
The middle section of the 3 axles 80t lowbed transport trailer is the cargo platform (the lowest part of the frame), and the rear end is the wheel frame (including wheels).
3 Axles 80T Lowbed Transport Trailer for Sale with Lower Price Manufacturers
3 Axles 80T Lowbed Transport Trailer for Sale with Lower Price Manufacturers
3 Axles 80T Lowbed Transport Trailer for Sale with Lower Price Manufacturers

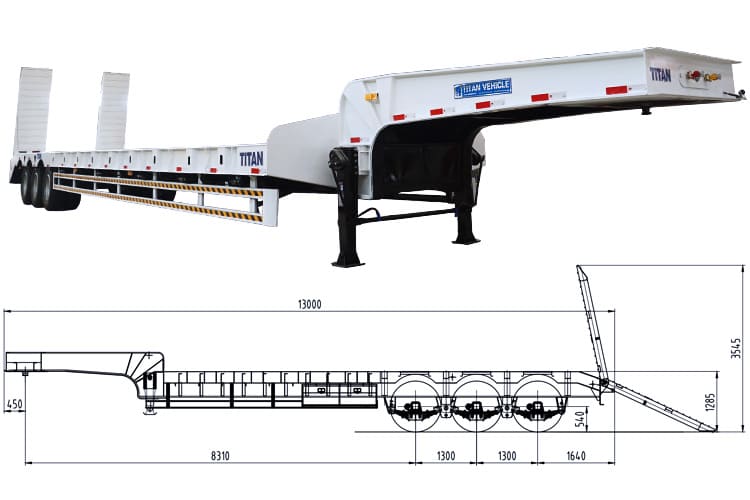

Overall dimension: 13000mm* 3000mm* 3400 mm
Loading capacity(T): 60-100T
Axle: 13T/16T, FUWA / BPW / TITAN Brand
Rim: 8.0-20
Tire: 11.00R20
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.
Bottom Platform: 5mm thick checkered plate
Ramp: Spring ramp
Gooseneck: Optional
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
1. Main beam adopts HG high strength steel, with high loading capacity.
2. Side beam adopt “H” steel, the durable design avoid the side beam to have the deformation.
3. The loading ramps is made by high strength steel, with high loading capacity, will not happen to the deformation when carry heavy equipment.
4. polyurethane paint, with long service lift, and avoid the vehicle get rust.
5. World famous brand spare part, ensure high quality and save costs.
