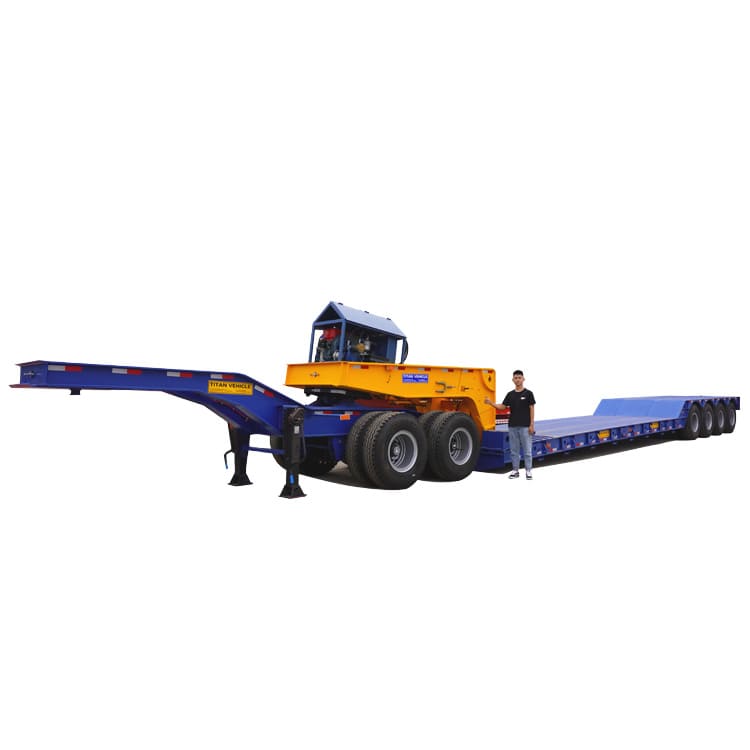

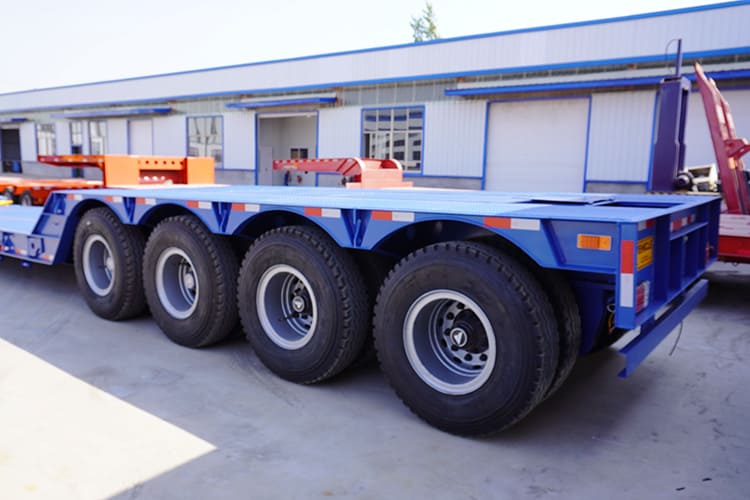

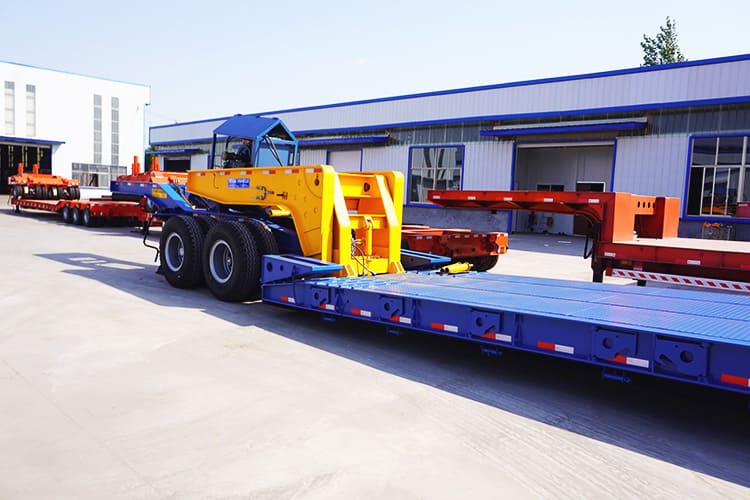

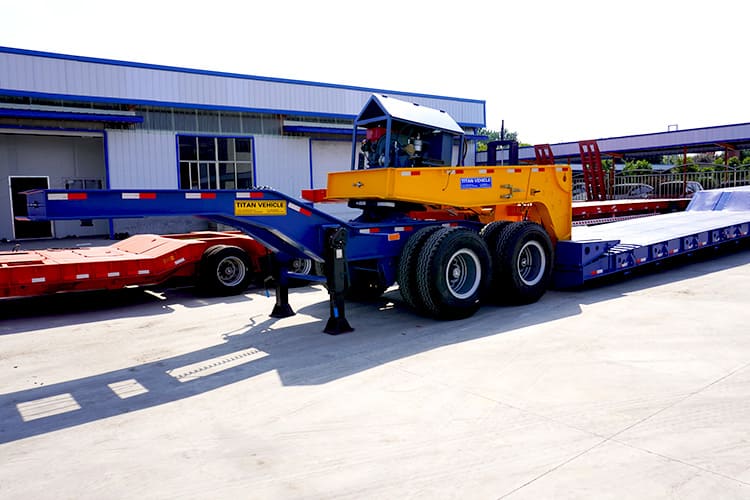

4 Axles 150 Tons Gooseneck Lowboy Trailer adopts polyurethane paint with high adhesion, high chromogenic, beautiful color, and the cost is twice that of ordinary paint. The paint will not come off after five years

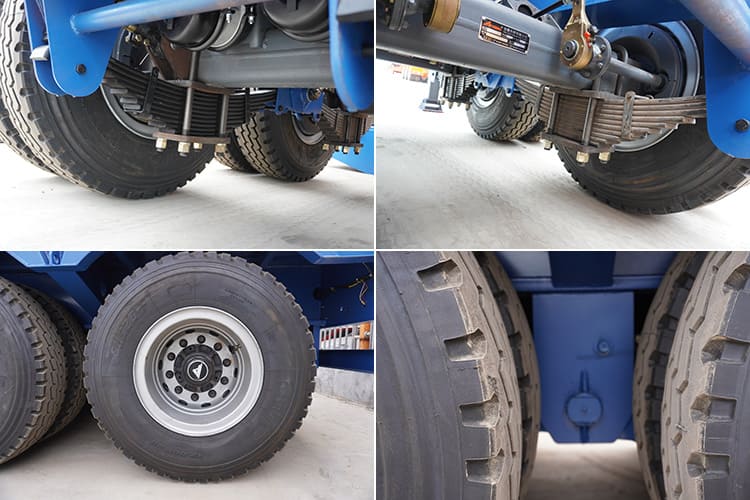

4 Axles 150 tons gooseneck lowboy trailer uses the reinforced suspension, 70mm center balance pin.The whole 4 axles 150 tons gooseneck lowboy trailer is equipped with LED lamps and will be shipped with a set of taillights and side lights.
4 Axles 150 Tons Gooseneck Lowboy Trailer for Sale with Lower Price Near Me
4 Axles 150 Tons Gooseneck Lowboy Trailer for Sale with Lower Price Near Me
4 Axles 150 Tons Gooseneck Lowboy Trailer for Sale with Lower Price Near Me
Overall dimension：17900mm * 2500+250*2mm *2200mm(platform 800mm)
Loading capacity: 150 ton
Axles：4 axles with 2 axles dolly
Tire: 16 units, 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension
Spring leaf: 120(W)mmx16(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Tare weight: About 9.5-19T
Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.
Bottom Platform: 5mm thick, checkered plate
Hydraulic cylinder: 12KW diesel engine with hydraulic station
Ramp: spring or hydraulic type
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust
