GTS Trailers Africa Ltd.'s tipper dump trailers are primarily used in mining transportation, construction sites, aggregate transportation, coal transportation, earthmoving projects, and port bulk cargo transportation. They are particularly well-suited to the complex road conditions and heavy-duty transportation environments of African countries such as Ghana, Nigeria, and Tanzania. Whether transporting gravel, sand, ore, coal, or construction waste, the GTS Ghana can achieve rapid unloading through a hydraulic lifting system, significantly improving transportation efficiency, reducing labor costs and waiting time, making it ideal for high-frequency, heavy-duty operations.
One of the biggest advantages of the GTS tipper dump trailer is its high-strength, wear-resistant steel body. The body effectively improves impact resistance and wear resistance, making it less prone to deformation, cracking, and dents even during long-term transportation of highly abrasive materials such as ore and gravel, significantly extending its service life.
GTS 80 Ton Dump Trailer Sales In Ghana - GTS Trailers Africa Ltd
GTS 80 Ton Dump Trailer Sales In Ghana - GTS Trailers Africa Ltd
Flash Sale on Ready Stock! Enjoy 15% OFF for a limited time
GTS 80 Ton Dump Trailer Sales In Ghana - GTS Trailers Africa Ltd
GTS 80 Ton Dump Trailer Sales In Ghana - GTS Trailers Africa Ltd
GTS 80 Ton Dump Trailer Sales In Ghana - GTS Trailers Africa Ltd
Flash Sale on Ready Stock! Enjoy 15% OFF for a limited time

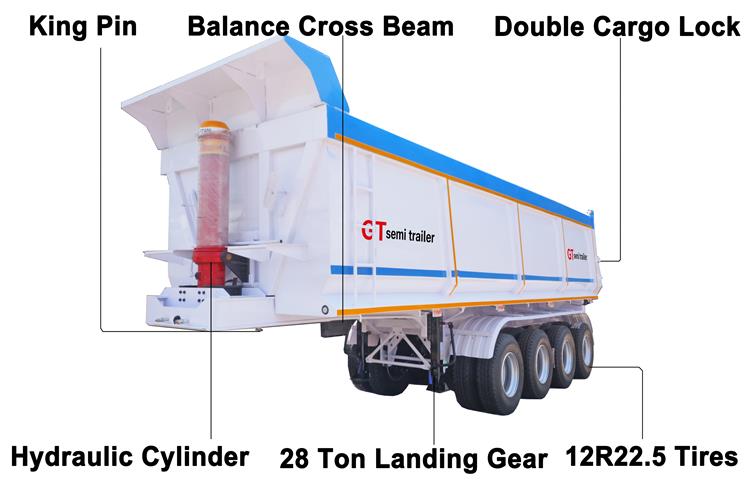

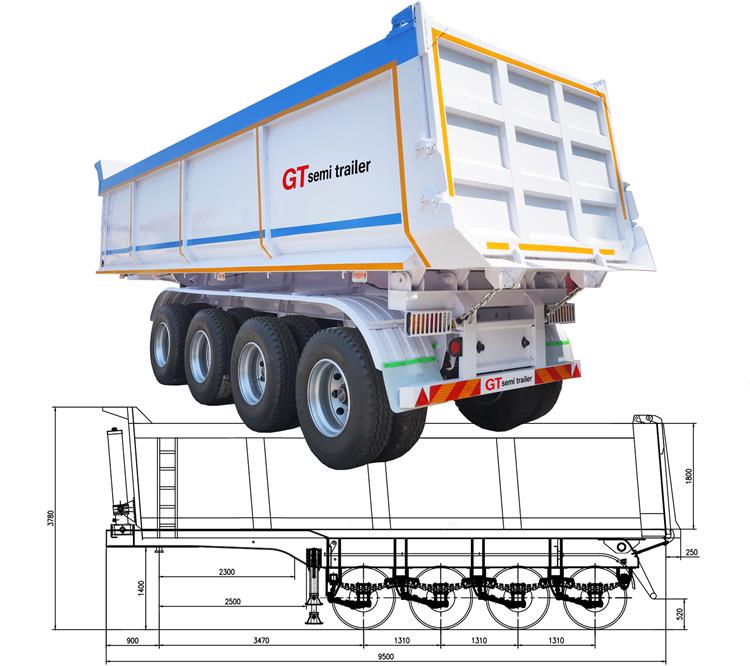

Overall dimension: 9500mm * 2500mm *3700mm
Volume: 80 Ton
Axles: 4 axles
Suspension: mechanical suspension

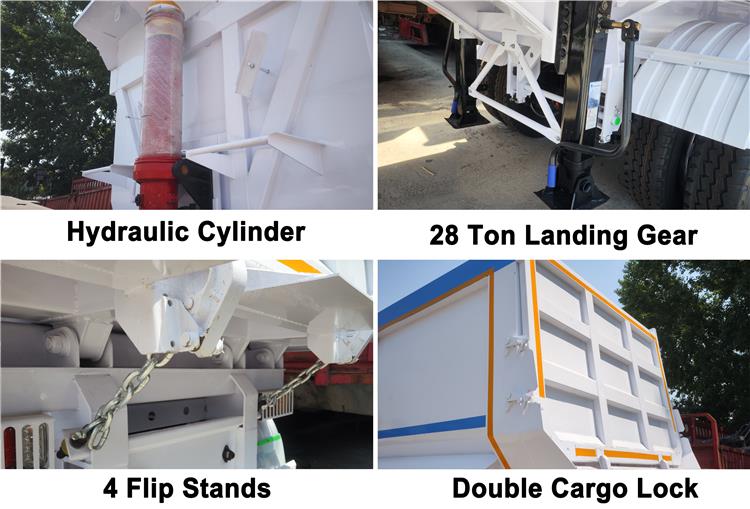

Tipping system: hydraulic cylinder
Tire: 16 units,12R22.5 Tires
King pin: 90#
Landing gear: JOST/Fuwa
Brake system: WABCO
Electrical system: 24V, LED lights
Flash Sale on Ready Stock! Enjoy 15% OFF for a limited time
To ensure that GTS Trailers Africa Ltd.'s tippie trailer can withstand the torsional and impact forces under high-intensity operations, comprehensive reinforcement technology is used in the main beam and key connection points, forming a robust and reliable load-bearing system.

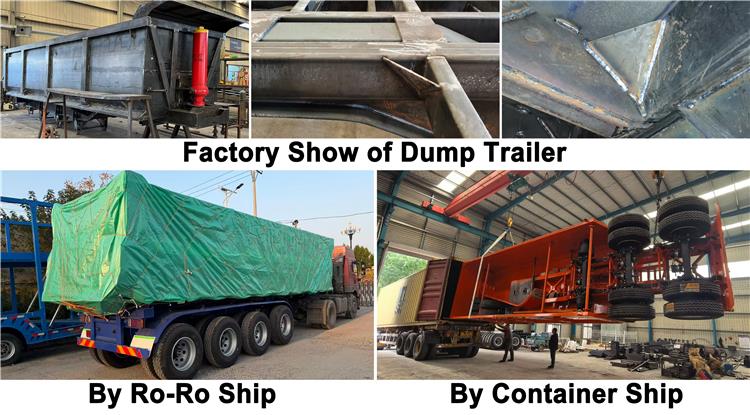

We offer flexible and diverse shipping solutions to meet the needs of different customers and shipping conditions. For standard Ro-Ro shipping, we provide comprehensive anti-corrosion coverings for GTS Ghana's tippie trailers to ensure safety en route. For container shipping, we use precise securing and disassembly/loading to achieve maximum transportation efficiency and cost control.
Flash Sale on Ready Stock! Enjoy 15% OFF for a limited time
GTS Trailers Africa Ltd.'s tipper trailer chassis utilizes a heavy-duty Q345 or T700 high-strength steel structure design. Through reinforced longitudinal and transverse beam layouts, it improves the vehicle's overall load-bearing capacity and torsional resistance. GTS Ghana's tipper trailer is more suitable for rough roads in Africa, mining areas, and overloaded transport environments, effectively reducing the risk of beam breakage and frame deformation.
GTS Trailers Africa Ltd.'s tipper dump trailer typically employs a 3 axle or 4 axle design, equipped with 13 ton or 16 ton heavy-duty axles, capable of withstanding greater transport weights. Axles are generally selected from well-known brands such as FUWA and BPW, featuring high load-bearing capacity, low failure rate, and convenient maintenance, making them particularly suitable for long-distance heavy-duty transport conditions.

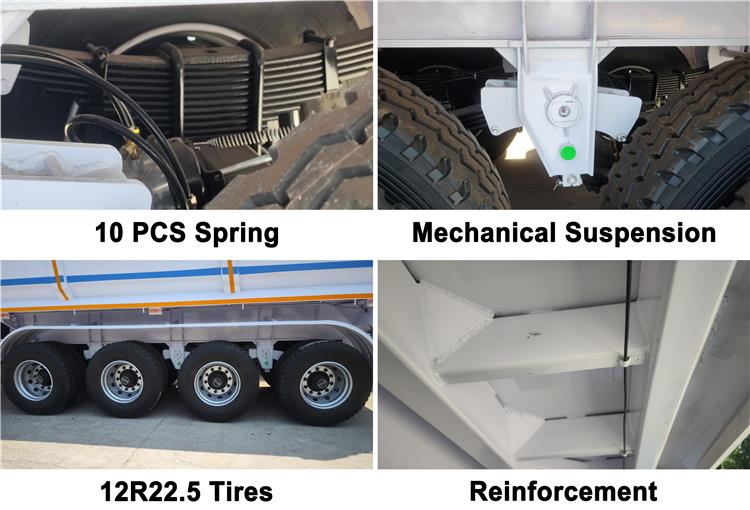

GTS Ghana's tipper trailer can be equipped with mechanical suspension, air suspension, or heavy-duty reinforced suspension according to customer needs. The mechanical suspension is better suited to the complex road conditions in Africa, featuring a simple structure, low maintenance costs, and high durability. The reinforced leaf spring design effectively improves vehicle stability under heavy loads and reduces uneven tire wear.

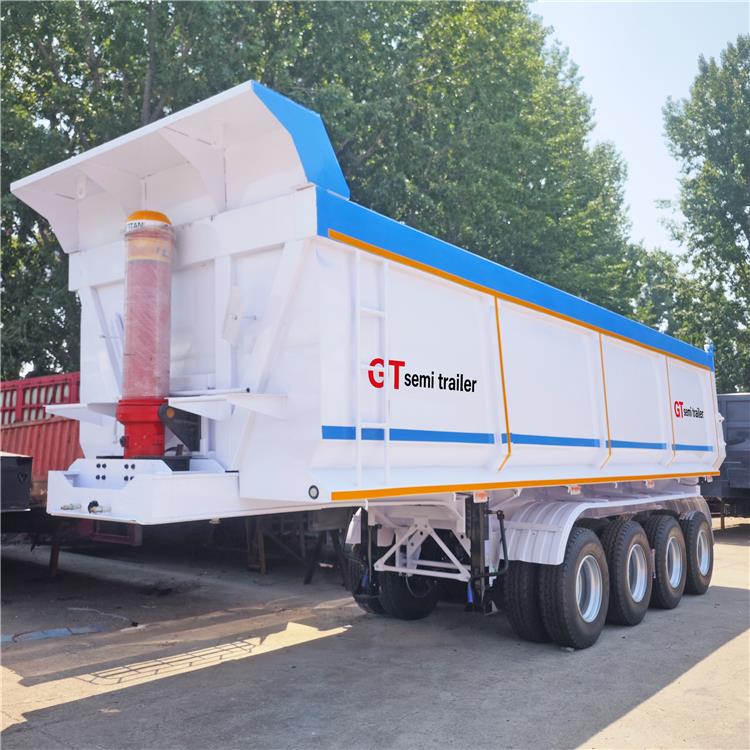

The hydraulic system is one of the core components of the GTS tipper trailer. Utilizing HYVA hydraulic cylinders, it offers fast lifting speed, high stability, and a low failure rate. The large-tonnage front-mounted hydraulic cylinder effectively improves unloading efficiency, maintaining stable lifting even under full load, avoiding the risk of rollover and tipping.
The GTS tipper dump trailer uses a U-shaped bucket, resulting in lighter weight and cleaner unloading, suitable for transporting sand, gravel, and mineral powder. It is also equipped with a WABCO brake valve, a large-capacity air tank, and an ABS anti-lock braking system, improving the vehicle's braking response speed and safety.
The GTS Ghana tipper trailer uses 12R22.5 heavy-duty tubeless tires, offering superior wear resistance and making it suitable for long-distance heavy-load transport.
The GTS Tipper Dump Trailer offers advantages such as stronger load-bearing capacity, higher unloading efficiency, better wear resistance, and lower operating costs.
