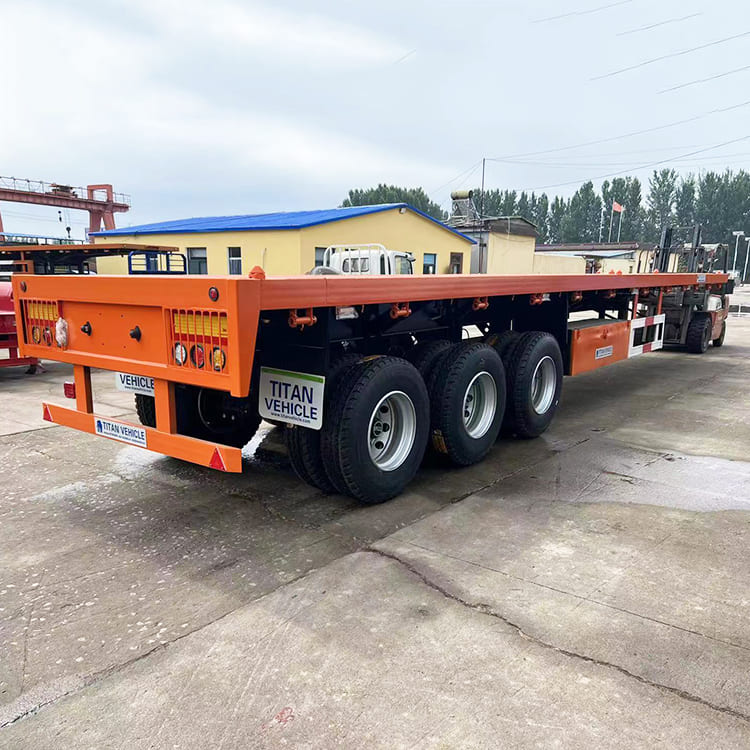

Tri Axle Flatbed Trailer

Tri Axle Flatbed Trailer

9900 USD

Price: 9900 USD



This tri axle flatbed trailer is mainly used for carrying containers with different dimensions (20/40/45/50/53ft).

SKU: Tri Axle Flatbed Trailer
GTIN: 06975766112950
MPN: TITAN6801011
Brand: TITAN VEHICLE

Tri Axle Flatbed Trailer for Sale:

The TITAN tri axle flatbed trailer uses high-strength carbon steel to make the bottom frame, which ensures that the flatbed trailer has better bearing capacity and is durable. This 3 axle flatbed traielr can be used to transport two 20-foot containers or one 40-foot container.

At the same time, titan uses polyurethane paint to treat the appearance of the tri axle flatbed trailer, and this paint will not fall off after 5 years of use.

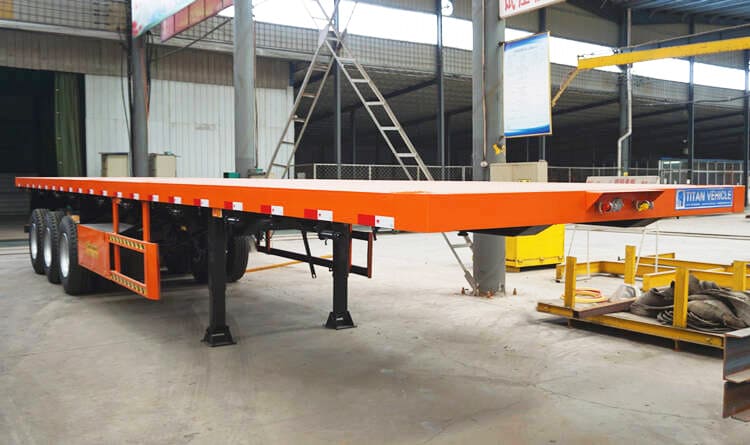

3 axles flatbed trailer

How Much Are Flatbed Trailers? | Tri Axle Flatbed Trailer for Sale Near Me

3 axles flatbed trailer

How Much Are Flatbed Trailers? | Tri Axle Flatbed Trailer for Sale Near Me

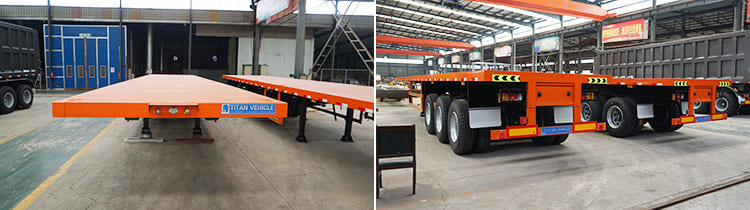

3 axles flatbed trailer

How Much Are Flatbed Trailers? | Tri Axle Flatbed Trailer for Sale Near Me

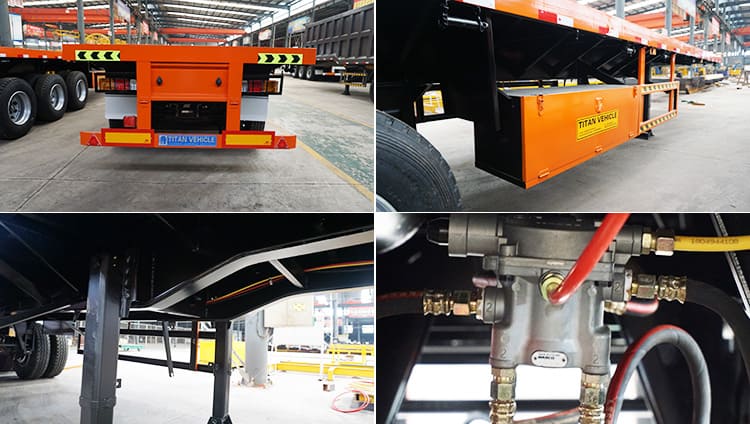

Details of tri axle flatbed trailer for sale:

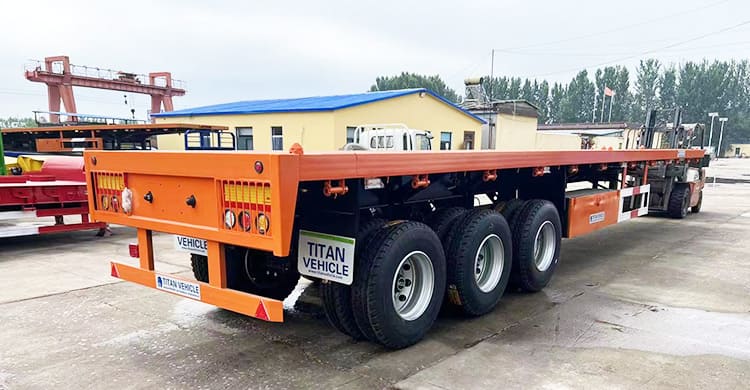

3 axles flatbed trailer



Tri Axle Flatbed Trailer Specification:

Dimension(mm): 12500x2500x1550mm

Loading capacity(ton): ≤60T

Axles: 3 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension(China brand or BPW brand)

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

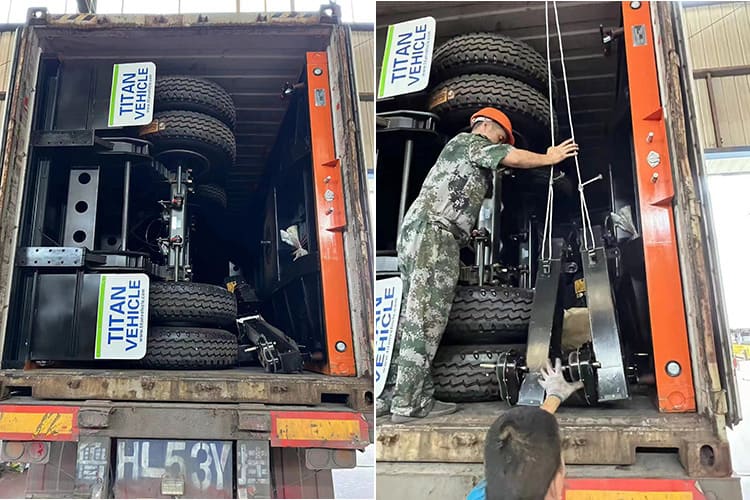

Pakage of tri axle flatbed trailer

TITAN uses a professional waterproof rain cloth to protect the flatbed trailer, and at the same time sprays wax on the whole trailer to ensure that the trailer is as good as new when it is delivered to the customer.

3 axles flatbed trailer



Video Play of tri axle flatbed trialer for sale:

Through this videos, you can learn about different types of flatbed semi-trailers, as well as the process, testing, packaging and customer feedback, etc.

3 axle 40ft flatbed trailer



Feedback

Review

Valmiki Bankay from Nigeria - 2022-07-13T16:07:09+0800
I received the tri axle flatbed trailer today. After unpacking, the whole appearance is still very new, and the installation is not complicated. Titan also provides professional explanations to install the trailer, which is a good shopping experience.
