Spot promotion! Stake semi trailer produced in 2020.

Not much quantity, welcome inquiry!

At the same time, TITAN can customize new stake cargo semi trailers according to your needs.

Stake Semi Trailer Specifications:

Tare Weight: About 8.3T

Dimension(mm): 12500x2500x3420mm

Loading capacity(ton): ≤60T

Axles: 3 axles, 13T/16T ,FUWA/ BPW/ Huajing Brand

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical, Bogie, Airbag suspension(China brand or BPW brand)

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Bottom Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Platform: 3mm-thick checkered plate

Trailer Sides: 600-2000mm, or box type sides

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

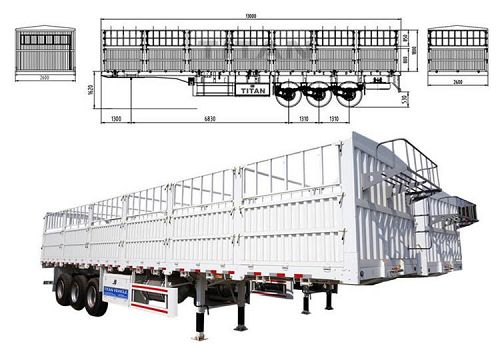

TITAN 3 axle stake semi trailer drawing

Stake Cargo Semi Trailer Advantages:

1. TITAN Vehicle adopts high strength steel material to manufacture the stake semi trailer, it can make the stake cargo truck trailer have a higher loading capacity and a longer service life.

2. TITAN Vehicle uses automatic arc-submerging welding method to weld the main beam, so the main beam is more stronger and more durable.

3. The cross beam and the side beam are enhanced, the down plate of the main beam and the bottom plate are all reinforced, it can ensure there is no curling during the using procedure.

4. The distance between two tilted supports is less than 50 centimeters, it can help the main beam have a better loading capacity.

5. Hight quality side wall, make sure the stable and safety of the loads.

6. Also the trailers floor is checker plate, this will keep the other bulk cargo more stable, like the bags, or long stuff.

7. To make sure the service life of the stake semi trailers, all the spare parts we adopt are world famous brand.

8. Durable mechanical widened spring suspension, make sure the stable and safety. Also we can offer you the air bag suspensions, The airbag suspension can provide a good shock absorption effect for the vehicle and more fuel-efficient.

9. We use famous German WABCO braking valve will definitely shorten the Braking Distance, to make the safety of the trailers and the drivers.

10. Polyurethane paint, the vehicle is more beautiful, has a strong adhesion, long-term use of non-fading, effective protection of the body against rust, prevent acid and alkali corrosion, extend the life of the vehicle.

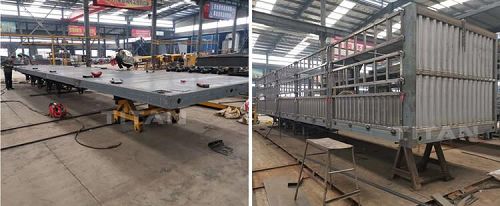

China stake trailer is in factory production

About TITAN:

Shandong Titan Vehicle Co., Ltd. is a company specializing in the production of various semi-trailers in China.

Since 2004, TITAN factory has produced more than 60,000 semi-trailers.

TITAN VEHICLE International Trade Department was established in 2014 and exported more than 1,200 various trailer to all over the world every year.

TITAN VEHICLE is the company which exports the largest number of semi-trailers in China every year.

TITAN VEHICLE can provide customized services according to the different needs of customers, and the within 30 days delivery time of semi trailer.
