Different Parameters, Different Price. Price Reference Only.

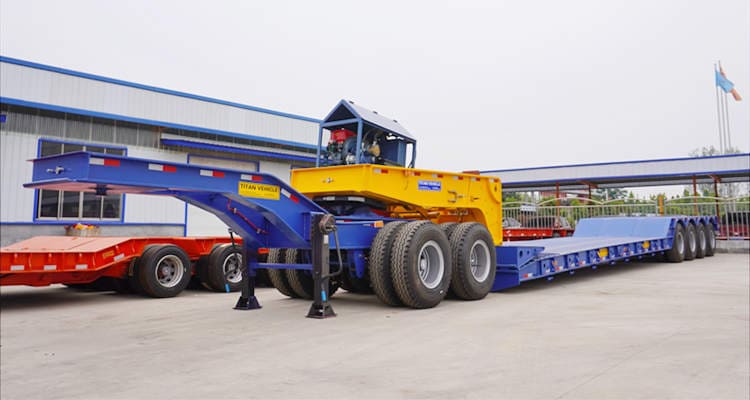

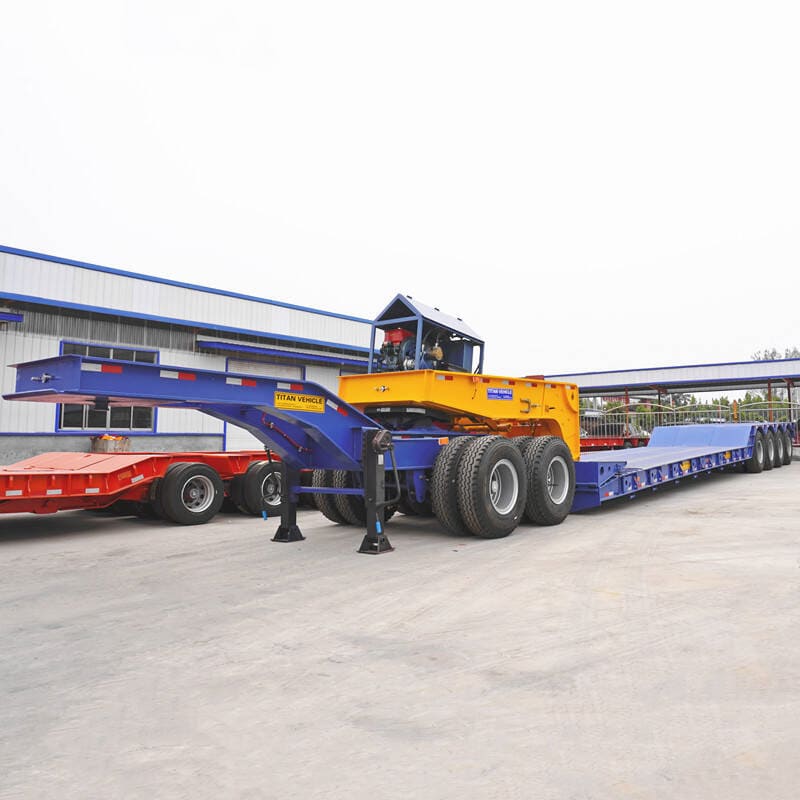

150 tons Detachable Gooseneck Trailers for Sale with Dolly is a type of semi trailer which can be used to load heavy loads, transport excavators etc. TITAN can produce 2/3/4 axle, 60/80/120/150ton lowboy equipment trailers.
Lowboy Equipment Trailer is convenient for heavy loads transportation. There are many kinds of lowboy equipment trailers TITAN can make, such as 2/3/4 axle 60/80/120/150ton lowboy trailers. Gooseneck is an important part of the lowboy equipment trailers.

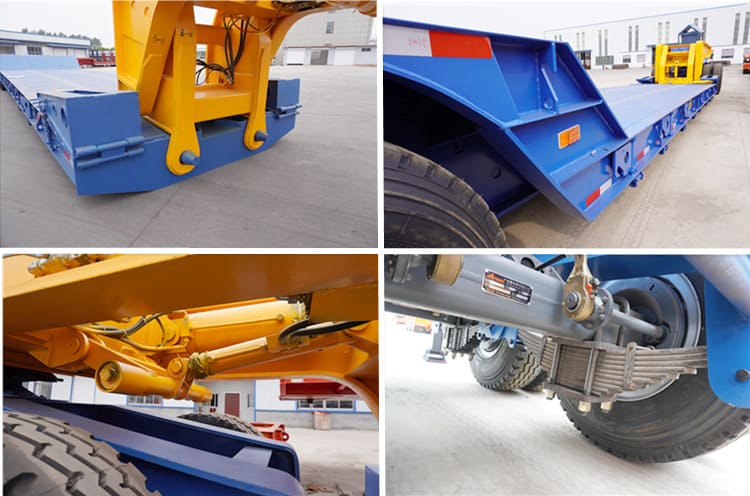

The gooseneck part is composed of a traction pin, a lifting hydraulic cylinder, a pin shaft connected with the cargo platform, an eccentric block for fixing the position of the gooseneck, and a gooseneck. The gooseneck part is connected to the cargo platform by articulation, and a pair of lifting hydraulic cylinders are installed between the gooseneck and the cargo platform, which are driven by the hydraulic cylinder to realize the raising and lowering of the cargo platform.
Dimension: 17900mm * 2500+250*2mm *2200mm(platform 800mm)
Loading capacity(T): 50-150T
Axle: 4 axle withh 2 axle dolly; 13T/16T, FUWA / BPW / TITAN Brand
Tire: 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension or air suspension
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Tare weight: About 9.5-19T
Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.
Bottom Platform: 5mm thick, checkered plate
Hydraulic cylinder: 12KW diesel engine with hydraulic station
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust

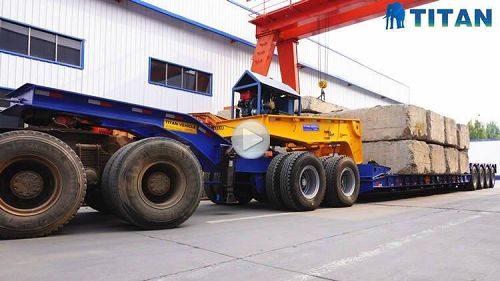

Through the video you can learn more about the 150ton lowboy equipment trailer , lowboy trailer manufacturers , lowboy heavy haul trailer etc.
Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
