The TITAN 3 line 6 axle detachable gooseneck trailer is improved the loading efficiency, reduces the self weight, ensures more stable and safe transportation, and improves the general performance of the gooseneeck trailer. Detach gooseneck trailer trailer is an important transportation tool for heavy machinery and equipment.
TITAN adopts world famous brand parts on the detachable gooseneck trailer, such as jost landing gear, BPW etc.
3 Line 6 Axle Hydraulic Detachable Gooseneck Trailer for Sale in Guyana
3 Line 6 Axle Hydraulic Detachable Gooseneck Trailer for Sale in Guyana
3 Line 6 Axle Hydraulic Detachable Gooseneck Trailer for Sale in Guyana
Dimension: 16250mm x 3400mm x 2500mm
Loading capacity(T): 120T
Axle: 3 lines 6 axles, 13T/16T, FUWA / BPW / TITAN Brand
Tire: 24 units, 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension
Spring leaf: 120(W)mmx16(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Tare weight: About 9.5-19T
Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.
Bottom Platform: 5mm thick, checkered plate

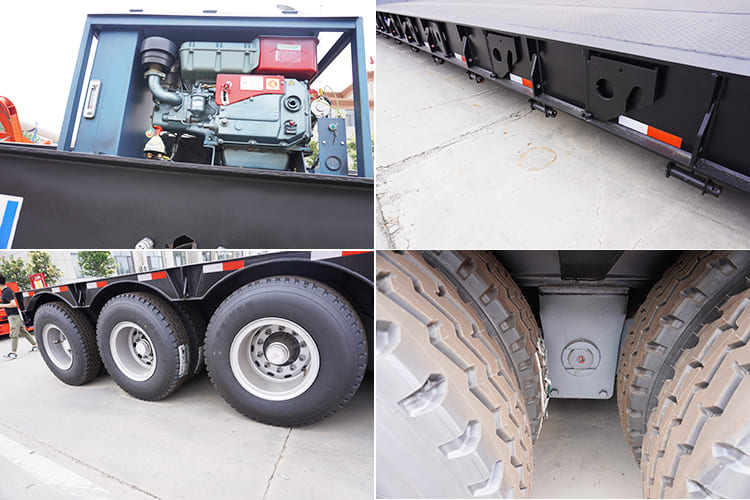

Hydraulic cylinder: 12KW diesel engine with hydraulic station
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust

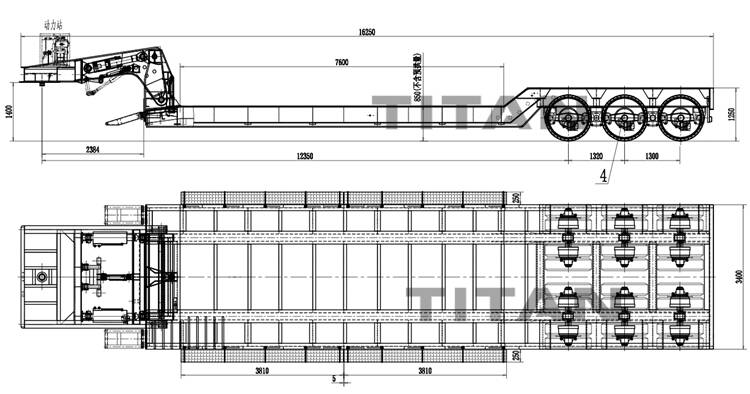

Drawing of 3 Line 6 Axle Detachable Gooseneck Trailer

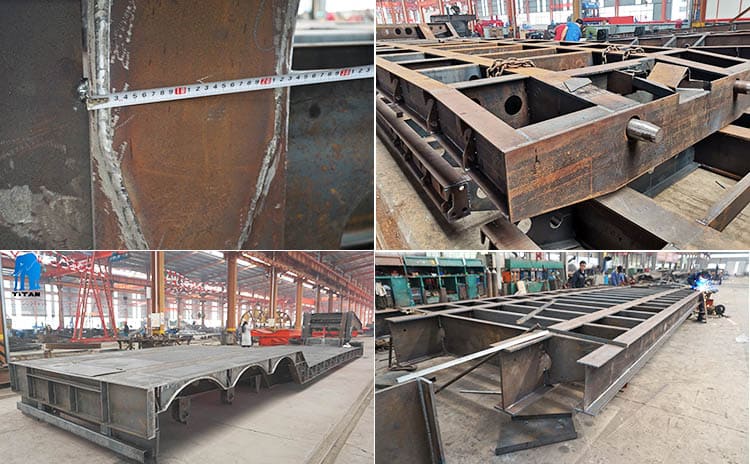

The main beam of the TITAN detachable gooseneck trailer are made of HG60 high-strength structural steel, which has good compressive effect and no deformation.
The side beam adopts "H" shape design, which is thicker and not easy to be dented and deformed.
TITAN detachable gooseneck trailer bottom plate is a 5mm patterned plate, the bottom plate is strong and durable, not easy to deform
Through the video, you can know more details of detachable gooseneck trailers , etc.
Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
