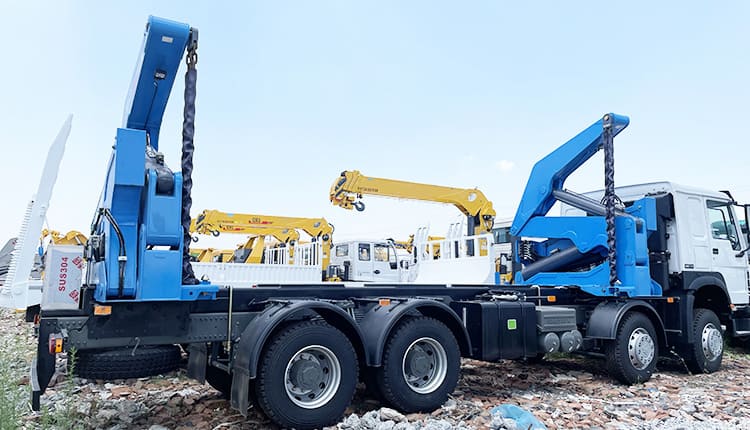

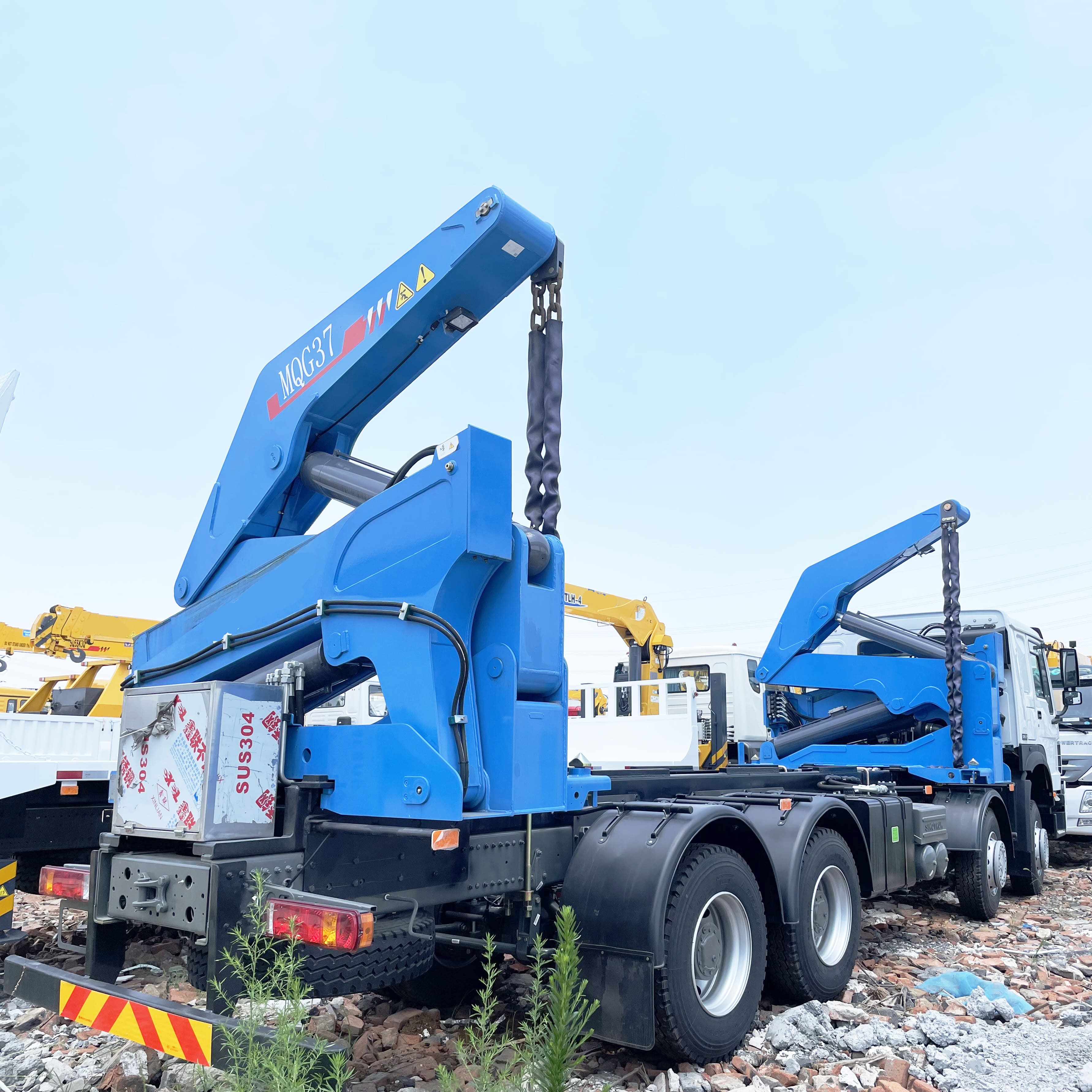

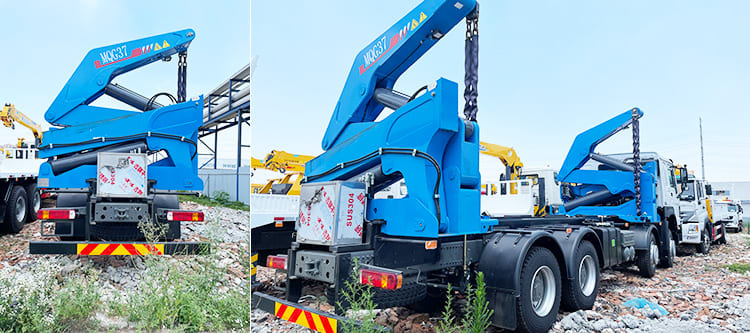

The TTIAN 20ft sideloader container truck breaks through the design concept of the previous container loader trailers, realizes the integration of container loading, unloading and transportation, and improves the efficiency of container transportation. As a sideloader container truck trailer that can both transport and load and unload containers, the sideloaders container truck trailer has strong maneuverability and high work efficiency.

New Sideloaders for Sale | Sideloader Container Truck for Sale Price in Dominica

New Sideloaders for Sale | Sideloader Container Truck for Sale Price in Dominica
Max.lifting capacity: 37 ton
Function: Load 20ft container trailer
Trailer Chassis: 12000*2500*4000mm
Axles: 2 axles
Tire: 8 units
Kingpin: 90#
Landing gear: JOST
Power source: Power take-off/Diesel APU
Operation: Wireless remote control and Manual operation

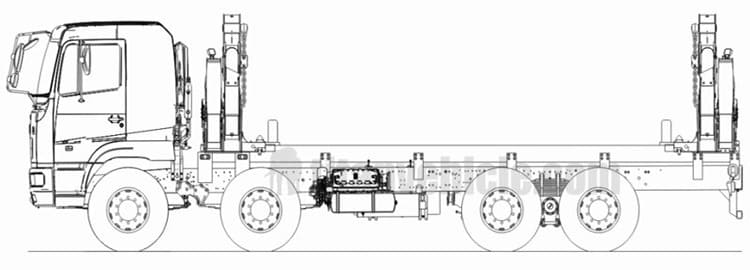

Drawing of 20ft sideloader container truck trailer
1. The hanging chain twist-lock mechanism for container loading and unloading, the twist-lock is automatically rotated and locked in the container corner pieces during the packing operation, and will not fall off, ensuring the safety during operation;
2. During transportation, the twist lock can still be automatically locked through the limit device, which relieves the repetitiveness of the operator to transport the chain and unload the chain, and also greatly improves the safety during driving;
3. After the operation, by optimizing the movement track of the lifting point and the position of the chain retraction, the automatic storage of the hanging chain during the recovery process of the boom is realized, which greatly improves the comfort of operation and the safety of the whole vehicle.

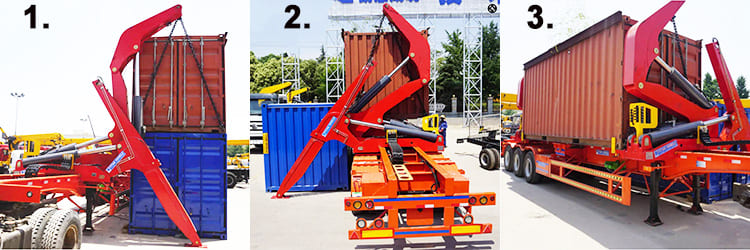

Loading Process of Sideloader container truck trailer

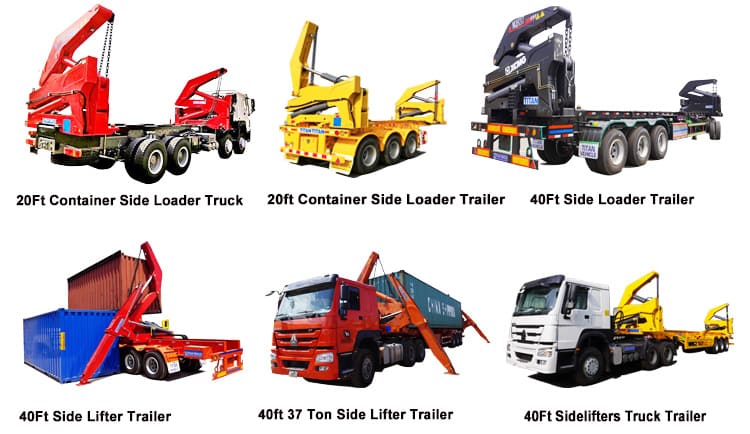

Through this videos, you can learn about different types of container side loader trailers, as well as the process, testing, packaging and customer feedback, etc.
