TITAN can offer different types of end dump trailers to meet your different needs, like 3 axles dump semi trailer, 35ton dump tipper trailer, 80 ton tipper trailer for sale, 100 ton tipper trailer price, hydraulic tipper trailers.
In civil engineering, often works in conjunction with excavators, loaders, belt conveyors and other construction machinery.
The 3 axle end dump trailer for sale carriage adopts rear-dump and side dump self-unloading methods, which improves the efficiency of the bulk cargo transport by the loader.

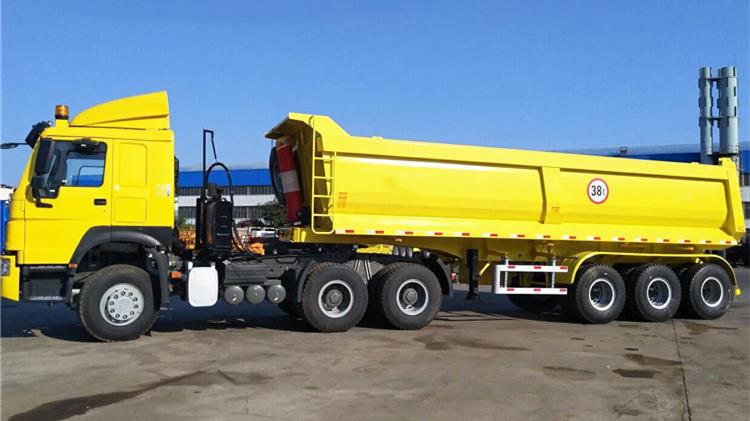

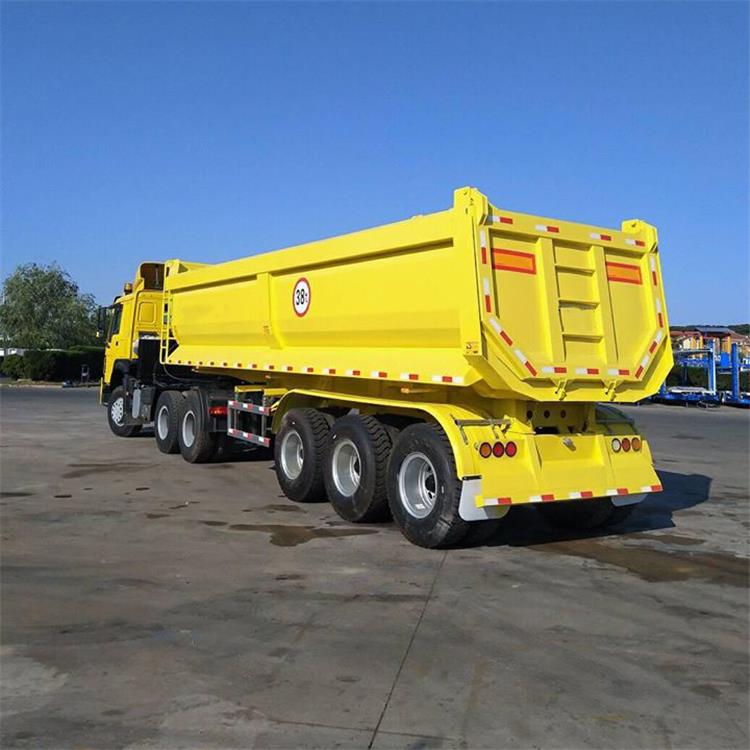

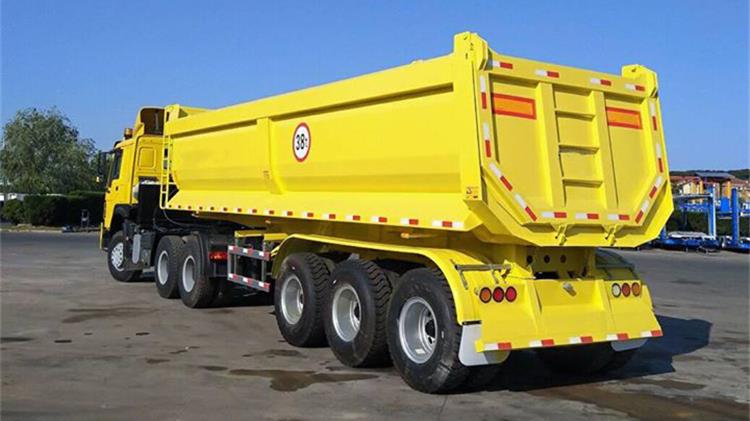

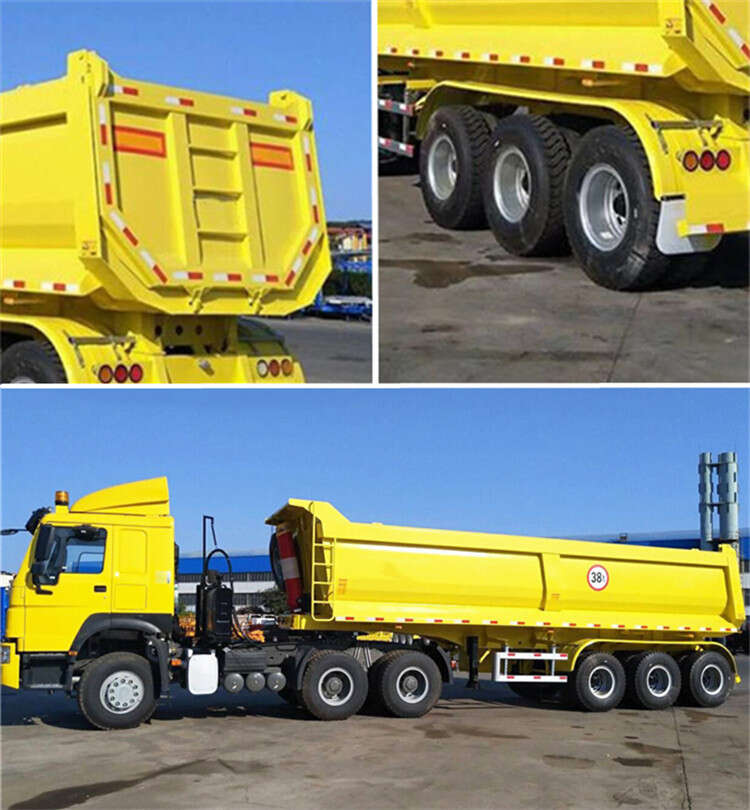

End Dump Trailer for Sale Prices
End Dump Trailer for Sale Prices
End Dump Trailer for Sale Prices
Overall dimension: 10200mm * 2500mm *3700mm
Volume: 35CBM
Axles: 3 axles
Suspension: Heavy duty mechanical suspension
Tipping system: 196 hydraulic cylinder
Tire: 12 units
King pin: 90#
Landing gear: JOST
Brake system: WABCO
Electrical system: 24V, LED lights >
1. Hydraulic cylinder: The heavy-duty cylinder with a wider diameter, stronger lifting capacity and higher height, which makes the lifting more stable and does not easy to roll over.
2. Double-plate main beam for tipper semi trailer, which has a stronger carrying capacity, it is not easy to damage.
3. with 4 units vice beam and cross balance beam. The lattice structure of the side door makes the side door more solid.
4. The leaf spring is widened and thickened, the shock absorption effect is good.
5. Strengthened Ribs, unique structure design to maximize the payload.
