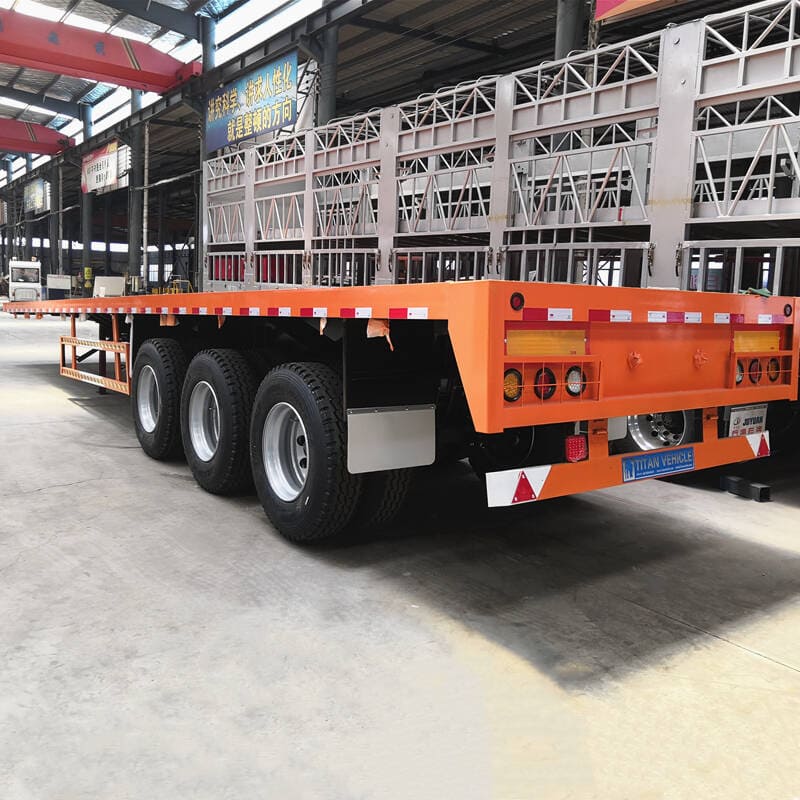

Tri Axle 40 Foot Flatbed Trailer

Tri Axle 40 Foot Flatbed Trailer

9800 USD

Price Reference Only.



Tri axle flat bed trailer is the most popular model. TITAN offer tri axle flatbed trailer the capacity from 40 to 80 tons.

SKU: Tri Axle 40 Foot Flatbed Trailer
GTIN: 06975766112660
MPN: TITAN9303043
Brand: TITAN

Tri Axle 40 Foot Flatbed Semi Trailer:

TITAN Vehicle adopts high strength steel material to manufacture the flatbed trailer for sale, it can make the 3 axle flatbed trailer have a higher loading capacity and a longer service life.

To make sure the service life of the semi trailers, all the spare parts we adopt are World Famous brand.

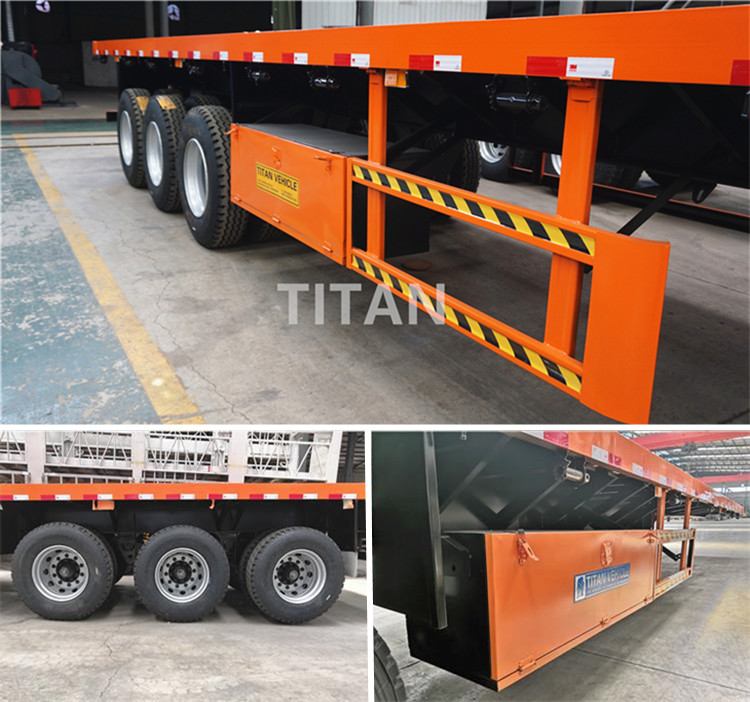

Tri Axle 40 Foot Flatbed Semi Trailer for Sale Near Me-Shengrun

Tri Axle 40 Foot Flatbed Semi Trailer for Sale Near Me

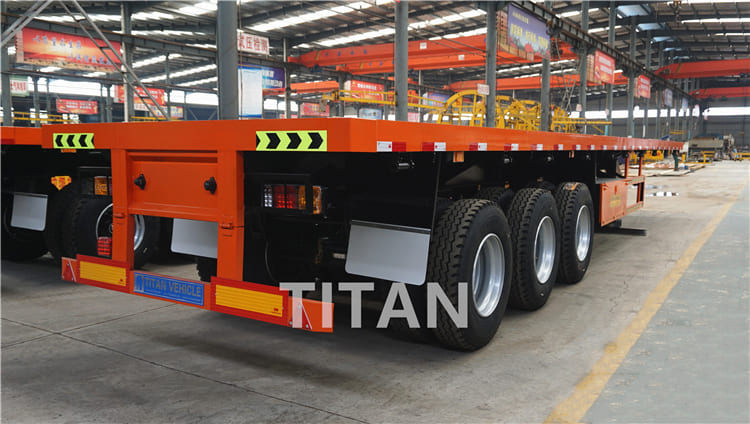

Tri Axle 40 Foot Flatbed Semi Trailer for Sale Near Me-Shengrun

Tri Axle 40 Foot Flatbed Semi Trailer for Sale Near Me

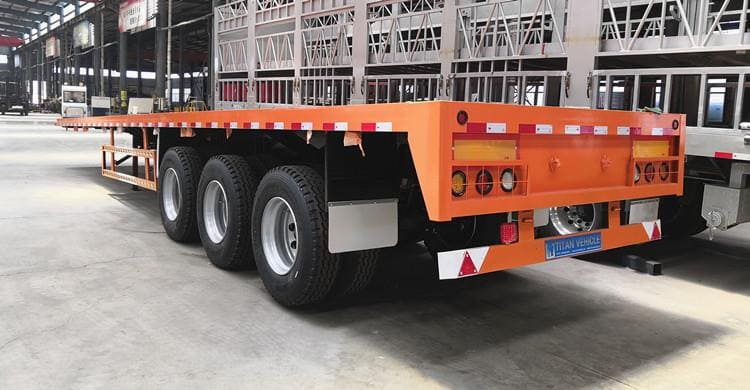

Tri Axle 40 Foot Flatbed Semi Trailer for Sale Near Me-Shengrun

Tri Axle 40 Foot Flatbed Semi Trailer for Sale Near Me

Flatbed Trailer Specification:

Model: 3 axle flatbed semi trailer

Dimension(mm): 12500x2500x1450mm

Loading capacity(ton): ≤60T

Axles: 3 axles, 13T/16T, FUWA/ BPW/ Huajing Brand

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Side Beam: 16mm or 18mm steel channel

Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: Contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Tri Axle Trailer Advantage:

1. TITAN Vehicle uses automatic arc-submerging welding method to weld the main beam, so the main beam is more stronger and more durable.

2. Also the trailers floor is checker plate, this will keep the other bulk cargo more stable.

3. Durable mechanical widened spring suspension, make sure the stable and safety.

4. polyurethane paint, the vehicle is more beautiful, effective protection of the body against rust, extend the life of the vehicle.

5. Hight Quality container locks, make sure the stable and safety of the loads.
