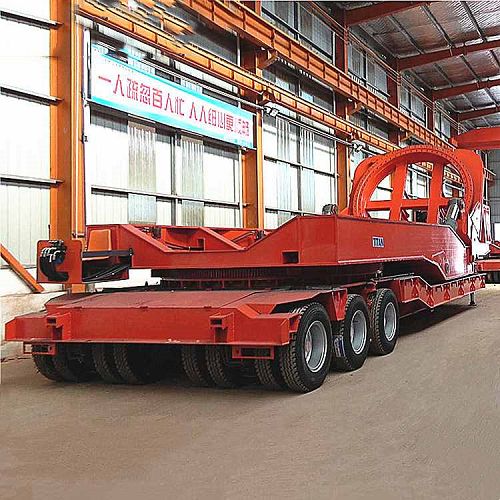

Windmill Blade Trailer for Sale

Windmill Blade Trailer for Sale

103600 USD

Different Parameters, Different Price. Price Reference Only.



Windmill Blade Trailer for Sale can also be used in mountains to transport wind blades.

The rotor blade of the windmill blade trailer changes to avoid the obstacles in mountains and rough terrain.

SKU: Windmill Blade Trailer
GTIN: 06975766113438
MPN: TITAN6810053
Brand: TITAN VEHICLE

Windmill Blade Trailer for Sale Product Description:

TITAN windmill blade trailer adapter that is mounted on 3 lines 6 axles trailer. That is best solution to avoid obstacles, such as buildings and trees effectively, especially running on steep hills or narrow winding mountainous roads.

Windmill blade trailer can transport blades of model 121-156. It is suitable for the wind turbine blades length of 59.5-76 meters, and the longest can transport the wind blade of 80 meters. The weight of the windmill trailer that can be carried is 13-23.5 tons.

The special windmill blade trailer can lift the blades through hydraulic control and rotate itself 360 degrees during driving, avoiding various obstacles during transportation (mountain slopes, trees, houses, bridges, tunnels, etc.), which can greatly reduce the blades. The total length of the transport windmill trailer body can improve the curve passing performance.

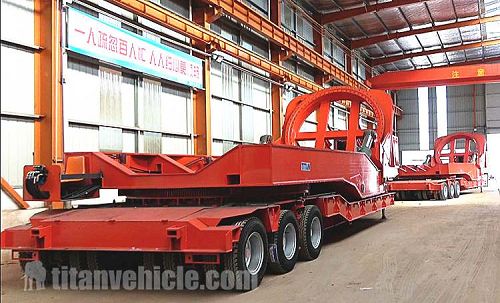

Windmill Blade Transport Trailer

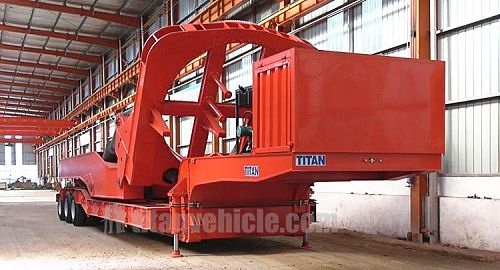

 windmill blade transport trailer

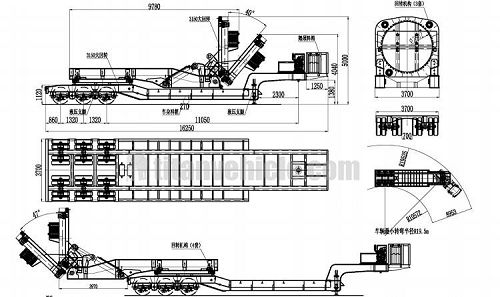

windmill blade transport trailer drawing



Specification:

Brand: TITAN 3 Line 6 Axle Windmill Blade Transport Trailer

Dimension: 16250mm*3700mm*5000mm

Transport: 80m, 121-156 model windmill blades

Loading capacity: 23.5 Tons

Axle: 3 lines 6 axles

Max rotation angle: 360°

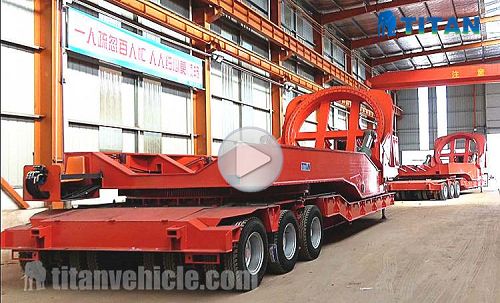

Through the video, you can learn more about windmill blade trailer, windmill trailer etc.

windmill blade transport trailer

Please click "TITAN Wind Blade Trailer" to get detailed video!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
