TITAN flatbed trailer is mainly composed of container locks, main frame, axles, tires, suspension, light circuit system, “ABS” braking system, tool box, support device and side and rear lower protection devices, safety accessories and signs, etc.
TITAN use automatic submerged arc welding process to weld the main beam. There is no interface between the upper, middle and lower plates of the beam, so it can ensure the integrity of the main beam and make the beam more solid and durable. Besides, TITAN adopts the polyurethane paint for all of our trailers, which has high adhesion, more beautiful color, and the cost is twice of ordinary paint. But the paint will not fall off after more than five years of use.

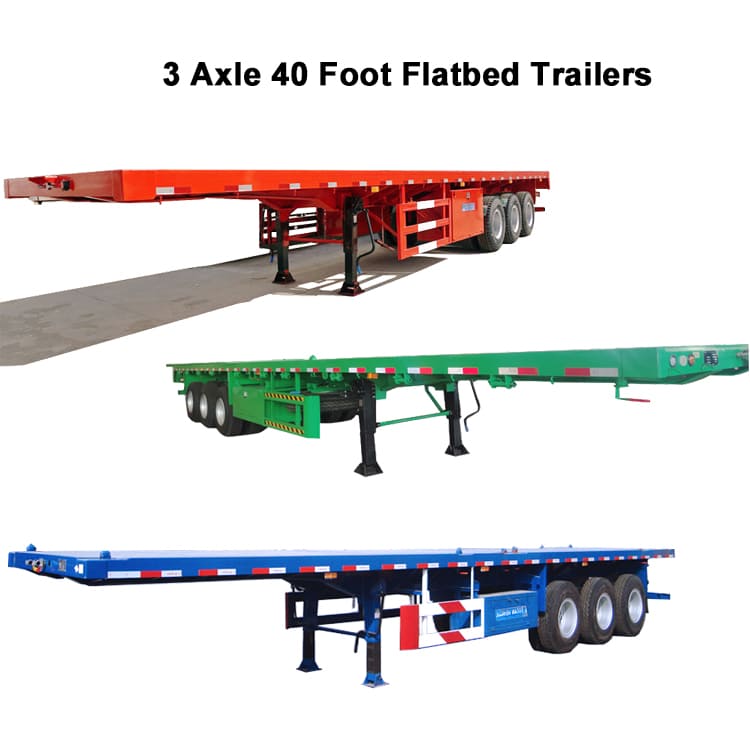

Cheap 40 Foot Flatbed Trailers for Sale Near Me Manufacturers
Cheap 40 Foot Flatbed Trailers for Sale Near Me Manufacturers
Cheap 40 Foot Flatbed Trailers for Sale Near Me Manufacturers
Dimension(mm): 12500x2500x1540mm
Loading capacity(ton): ≤60T
Axles: 3 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Side Beam: 16mm or 18mm steel channel (material: Q235 steel)
Platform: 3mm-thick checkered plate
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

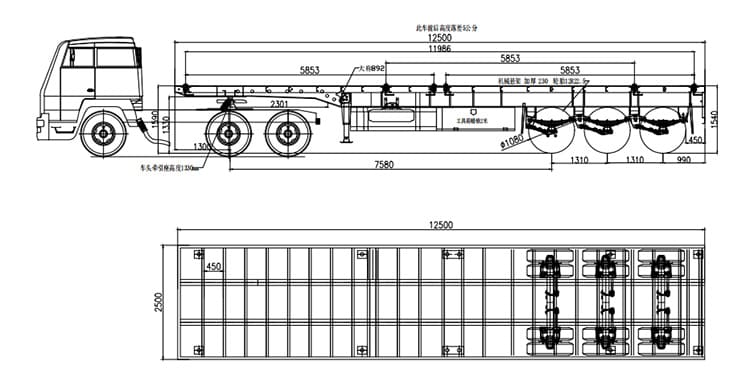

Drawing of 40 Foot Flatbed Trailer
TITAN adopts high strength steel material to manufacture the semi trailers, it can make the semi trailer have a higher loading capacity and a longer service life.

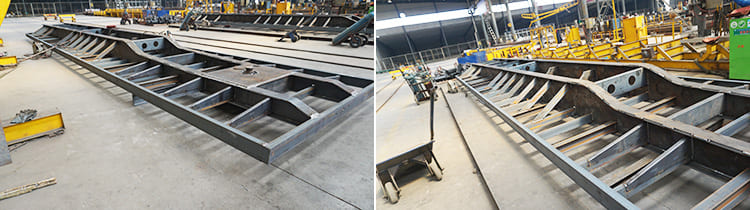

There are 9 cross beams, the distance between two tilted supports is less than 50 centimeters, it can help the main beam have a better loading capacity.
TITAN adopts the polyurethane paint for all of the trailers which has high adhesion, more beautiful color, and it will not fall off after more than five years using.
TITAN use the reinforced suspension on the trailers, 70mm king pin. The suspension is reinforced front and rear, left and right, which can better cope with complex road conditions.
Through this videos, you can learn about different types of flatbed semi-trailers, as well as the process, testing, packaging and customer feedback, etc.
