The floor plate of the 40Ft Container Trailer for sale is the 3 mm and it’s diamond plate, The floor plate is strong and durable, and is not easy to deform. At the same time, TITAN use the reinforced suspension on the trailer, 70mm center balance pin, which could be better deal with bad weather and road conditions

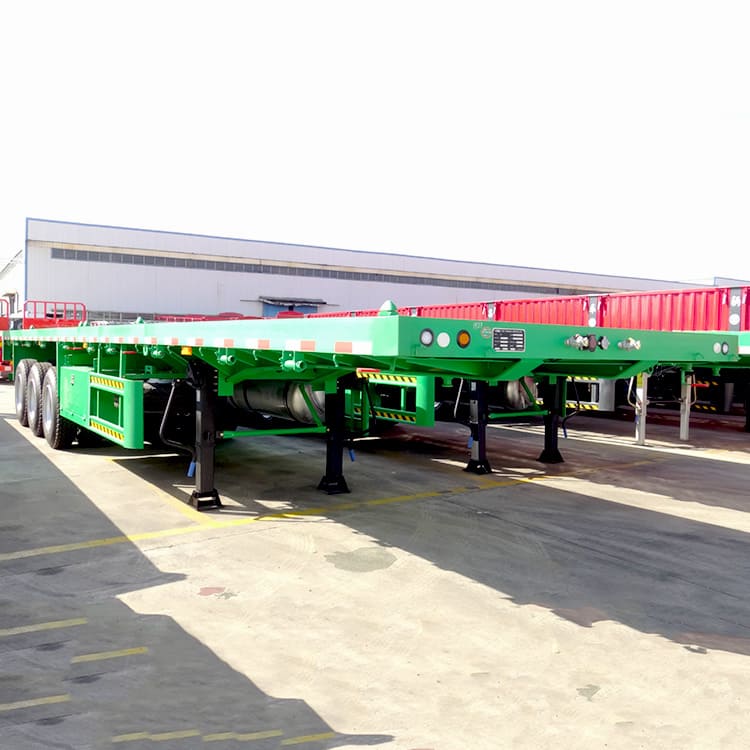

40 Ft Container Flatbed | Flatbed Container Trailer for Sale in Ghana
40 Ft Container Flatbed | Flatbed Container Trailer for Sale in Ghana
40 Ft Container Flatbed | Flatbed Container Trailer for Sale in Ghana
Model: tri axle flat bed trailer
Dimension(mm): 12500x2500x1550mm
Loading capacity(ton): ≤60T
Axles: 3 axles, 13T/16T ,FUWA/ BPW
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Side Beam: 16mm or 18mm steel channel (material: Q235 steel)
Platform: 3mm-thick checkered plate
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

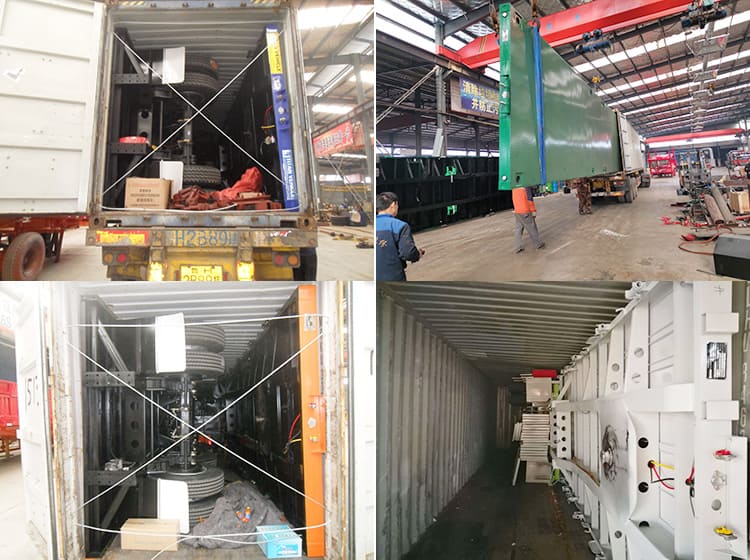

TITAN has professional packaging solutions. This flatbed container trialer can pack all the trailers through a 40-foot container, which is undoubtedly safer, avoids the flatbed container trailer being bumped and deformed during transportation, and also has the effect of waterproofing.
Through this video, you can see different types of flatbed tractor trailer, As well as the process, testing, packaging and customer feedback, etc.
