TITAN 20/40ft flat bed trailer for sale is mainly used to transport containers., the size of the container is 40ft. The special design of this TITAN 20/40ft flat bed trailer is that, this trailer is using the bogie suspension, which is quiet different with air suspension or spring suspension，bogie suspension has greater bearing capacity.
The floor plate of the TITAN 20/40ft flat bed trailer is the 3 mm diamond plate, It is thicker than the 2.5mm or 2mm floor plate, which other factories are using.
20Ft/40Ft Flat Bed Trailers Near Me Sales Cost in Kenya
20Ft/40Ft Flat Bed Trailers Near Me Sales Cost in Kenya
20Ft/40Ft Flat Bed Trailers Near Me Sales Cost in Kenya
Tare Weight: About 6.7T
Dimension(mm): 12500x2490x1550
Loading capacity(ton): ≤45T
Axles: 2 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand
Tire: 8 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5

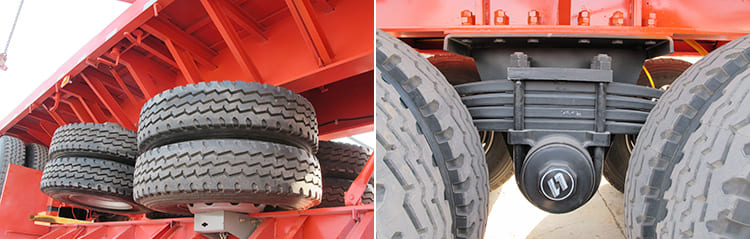

Suspension: Bogie suspension
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Side Beam: 16mm or 18mm steel channel (material: Q235 steel)
Platform: 3mm-thick checkered plate
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
1. TITAN Vehicle uses automatic arc-submerging welding method to weld the main beam, so the main beam is more stronger and more durable.
2. Also the trailers floor is checker plate, this will keep the other bulk cargo more stable.
3. Durable mechanical widened spring suspension, make sure the stable and safety.
4. polyurethane paint, the vehicle is more beautiful, effective protection of the body against rust, extend the life of the vehicle.
5. Hight Quality container locks, make sure the stable and safety of the loads.
