A TITAN standard 40 feet flatbed truck trailer can accommodate one 40ft contanier or 2 20ft containers. And such TITAN 40 feet flatbed truck trailer has 2, 3, 4, 5 axles type for option, depending on the quantity and weight of the cargo being transported.
TITAN is using world famous brand parts on the flatbed truck with trailer, such as Wabco Valve, Jost landing gear.
40 Feet Tri Axle Flatbed Truck Trailer for Sale Near Me
40 Feet Tri Axle Flatbed Truck Trailer for Sale Near Me
40 Feet Tri Axle Flatbed Truck Trailer for Sale Near Me
Tare Weight: About 7.1T
Dimension(mm): 12500x2500x1620mm
Loading capacity(ton): ≤60T
Axles: 3 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Side Beam: 16mm or 18mm steel channel (material: Q235 steel)
Platform: 3mm-thick checkered plate
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

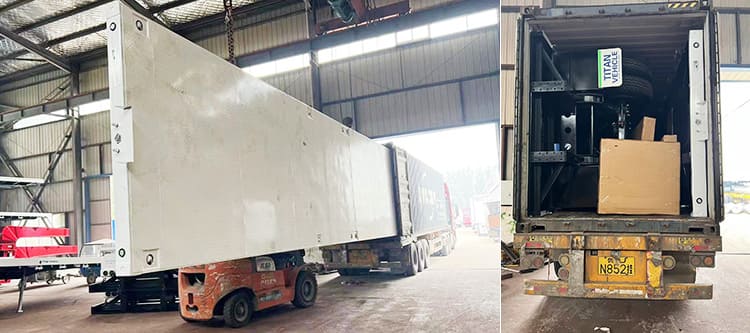

TITAN adoptS the 40HQ container to transport the flatbed truck and trailer. TITAN will provide customers with detailed packaging drawings and solutions. Fix the truck trailer 40 feet firmly in the container to prevent the flatbed truck with trailer from shaking and colliding in the container.
Through this video, you can see different types of flatbed trailers, As well as the process, testing, packaging and customer feedback, etc.
Please click "TITAN Flatbed Trailer" to get detailed video!
Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
