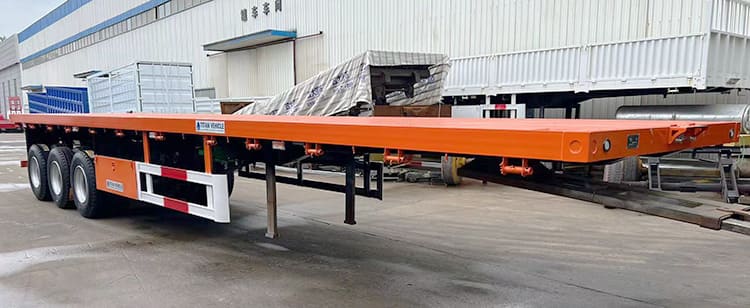

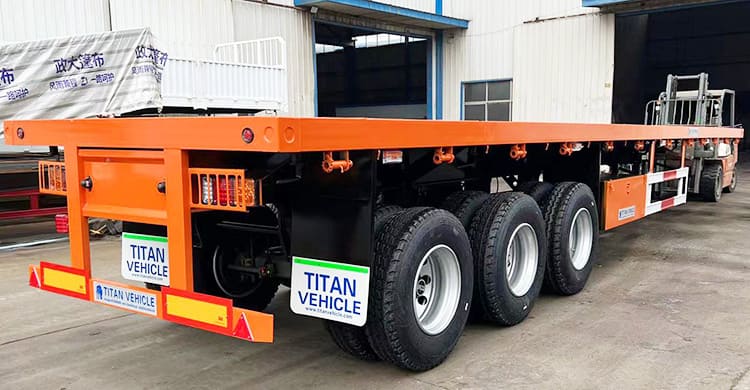

TITAN 40ft 3 axle flatbed tractor trailer is used to transport cargos, most of them is containers. The 40ft 3 axle flatbed tractor trailer structure is covered with a reliable paint and varnish coating or galvanization, which provide reliable protection of the trailer against corrosion. Reliable suspension and parabolic springs guarantee safe and long -term operation.
40Ft 3 Axle Flatbed Tractor Trailer for Sale in Tanzania
40Ft 3 Axle Flatbed Tractor Trailer for Sale in Tanzania
40Ft 3 Axle Flatbed Tractor Trailer for Sale in Tanzania
Tare Weight: About 7.1T

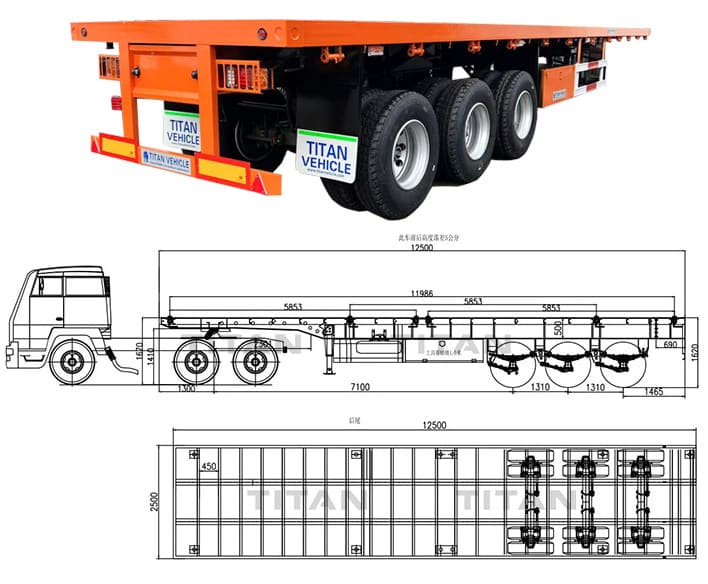

Dimension(mm): 12500x2500x1620mm
Loading capacity(ton): ≤60T
Axles: 3 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

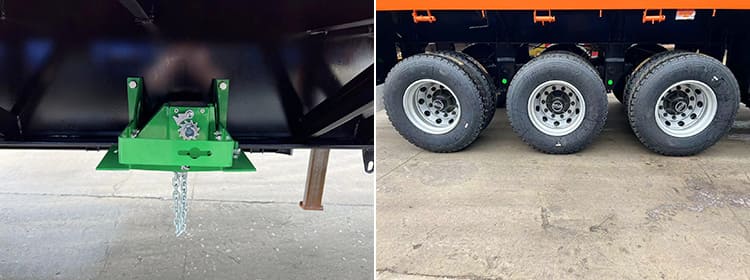

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Side Beam: 16mm or 18mm steel channel (material: Q235 steel)
Platform: 3mm-thick checkered plate
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

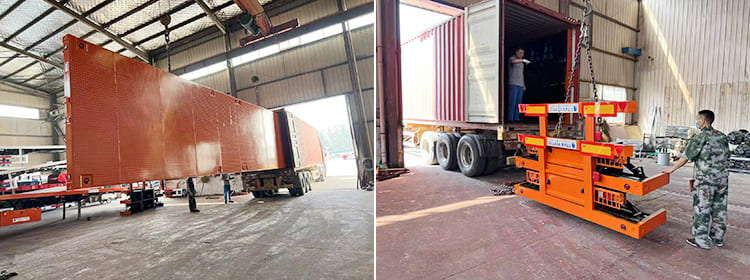

TITAN provides customers with a containerized way to transport flatbed tractor trailers. TITAN will provide customers with detailed packaging drawings and plans. And the 3 axle flatbed tractor trailer is firmly fixed inside the container to prevent the flatbed tractor trailer from shaking and bumping inside the container.
Through this video, you can see different types of flatbed trailers, As well as the process, testing, packaging and customer feedback, etc.
Please click "TITAN Flatbed Trailer" to get detailed video!
Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
