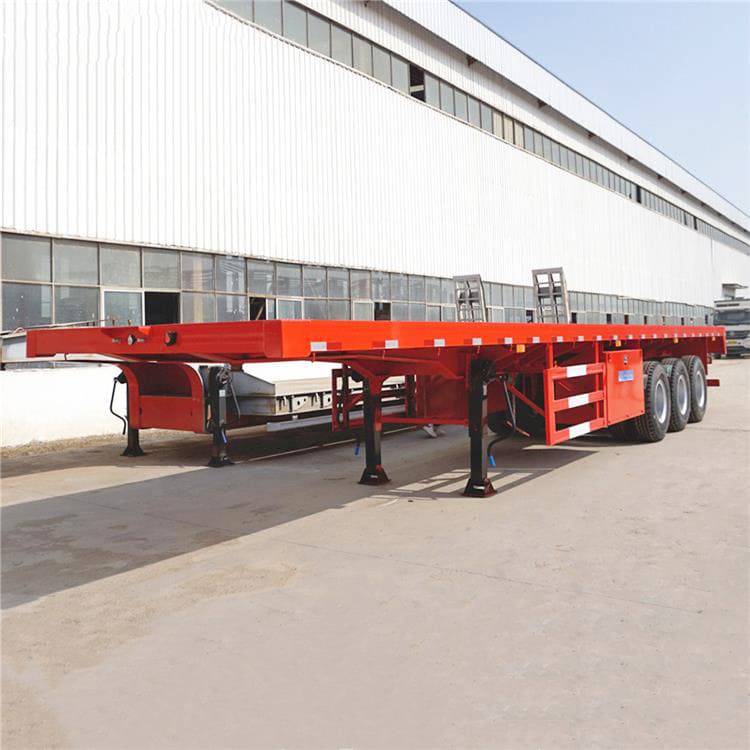

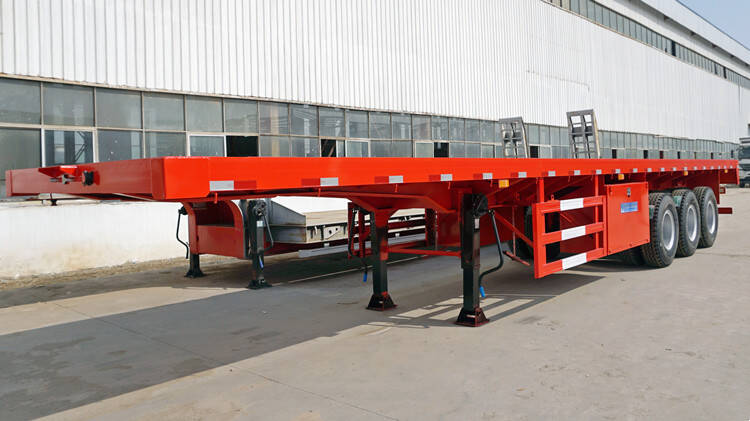

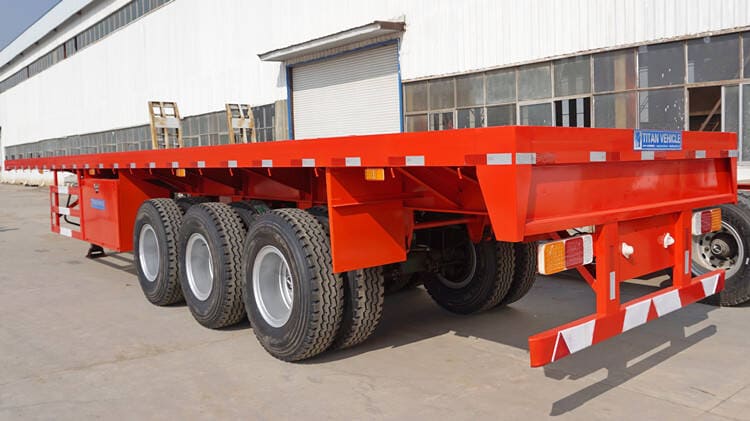

TITAN 3 axle flatbed semi trailer could be changed into 2/3/4/5 axles, the length could be 20ft/40ft/48ft/53ft. Every thing could be customized by your needs. This 3 axle flatbed semi trailer is used to loading and unloading containers on the road. In the case of bad conditon of the road, TITAN reinforced the suspension, which ensure the stability of the trailer.
TITAN is using the polyurethane paint on the trailer, which is not easy to come off in 5 years.
Best 3 Axle Flatbed Semi Trailers Manufacturers for Sale
Best 3 Axle Flatbed Semi Trailers Manufacturers for Sale
Best 3 Axle Flatbed Semi Trailers Manufacturers for Sale
Tare Weight: About 7.1T
Dimension(mm): 12450x2490x1575mm
Loading capacity(ton): ≤60T
Axles: 3 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Side Beam: 16mm or 18mm steel channel (material: Q235 steel)
Platform: 3mm-thick checkered plate
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
1. TITAN Vehicle adopts high strength steel material to manufacture the flatbed trailer, it can make the flatbed trailer have a higher loading capacity and a longer service life.
2. The cross beam and the side beam are enhanced, the down plate of the main beam and the bottom plate are all reinforced, it can ensure there is no curling during the using procedure.
3. The distance between two tilted supports is less than 50 centimeters, it can help the main beam have a better loading capacity.
Through this video, you can see different types of flatbed trailers, As well as the process, testing, packaging and customer feedback, etc.
Please click "TITAN Flatbed Trailer" to get detailed video!
Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
