TITAN 48ft flatbed trailers for sale is mainly designed for loading containers TITAN is using 16-ton brake system axle, which has better braking performance and shortens the braking distance by more than 5 meters.
The 48ft flatbed trailers for sale uses a vacuum tire with better heat dissipation performance, the model is 12R22.5.

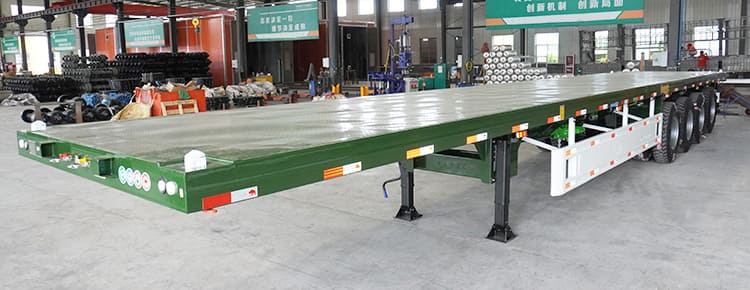

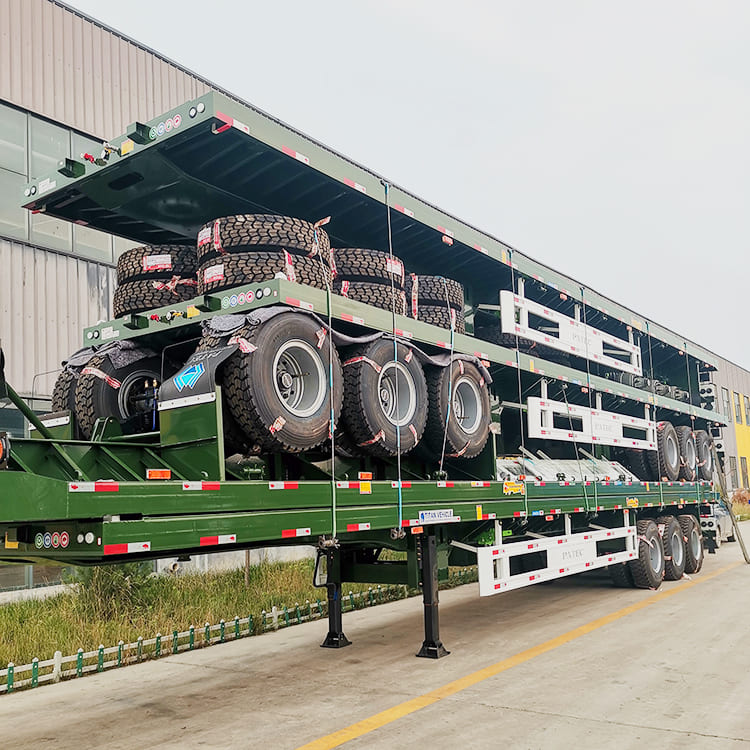

48Ft Flatbed Trailers for Sale Near Me in Zimbabwe
48Ft Flatbed Trailers for Sale Near Me in Zimbabwe
48Ft Flatbed Trailers for Sale Near Me in Zimbabwe
Dimension(mm): 13900x2500x1587mm
Loading capacity(ton): ≤60T
Axles: 4 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand
Tire: 16 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Side Beam: 16mm or 18mm steel channel (material: Q235 steel)
Platform: 3mm-thick checkered plate
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
1. TITAN adopts high strength steel material to manufacture the semi trailers, it can make the semi trailer have a higher loading capacity and a longer service life.
2. TITAN use the reinforced suspension on the trailers, 70mm king pin. The suspension is reinforced front and rear, left and right, which can better cope with complex road conditions.
3. The cross beam and the side beam are enhanced, the down plate of the main beam and the bottom plate are all reinforced, it can ensure there is no curling during the using procedure.
4. The distance between two tilted supports is less than 50 centimeters, it can help the main beam have a better loading capacity.
Through this video, you can see different types of flatbed trailers, As well as the process, testing, packaging and customer feedback, etc.
Please click "TITAN Flatbed Trailer" to get detailed video!
Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
