The size of the loading part of the flatbed trailer is determined according to the size of the standard container(20/40/45/48/53Ft), and a twist-lock device for fixing the container is provided at the position corresponding to the four corners of the bottom of the container. This 40ft flatbed trailer is mainly designed for carrying various containers.
TITAN Vehicle also provides customers flatbed trailers with different dimensions and various suspensions (mechanical or airbag suspension) .
How Much Does a flatbed Trailer cost? | New 48Ft Flatbed Trailer for Sale Near Me
How Much Does a flatbed Trailer cost? | New 48Ft Flatbed Trailer for Sale Near Me
Dimension(mm): 13900x2500x1587mm
Loading capacity(ton): ≤60T
Axles: 4 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand
Tire: 16 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Side Beam: 16mm or 18mm steel channel (material: Q235 steel)
Platform: 3mm-thick checkered plate
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

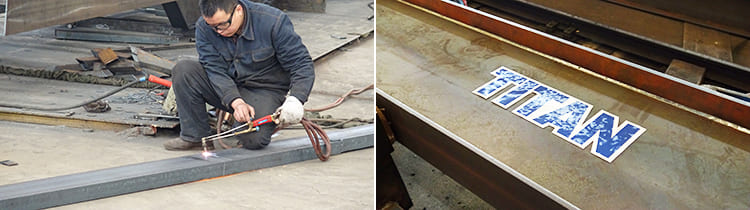

TITAN adopts high strength steel material to manufacture the semi trailers, it can make the semi trailer have a higher loading capacity and a longer service life.
TITAN adopts the polyurethane paint for all of the trailers which has high adhesion, more beautiful color, and it will not fall off after more than five years using.
TITAN use the reinforced suspension on the trailers, 70mm king pin. The suspension is reinforced front and rear, left and right, which can better cope with complex road conditions.
Through this videos, you can learn about different types of flatbed semi-trailers, as well as the process, testing, packaging and customer feedback, etc.
