Tipper semi trailer can be used in many other fields such as construction, agriculture, etc. They have different shapes and types, which are divided into Side Dump Trailer and rear tipping trailer. you can use side dump trailer to help save space. The load capacity of the side dump trailer may be greater than that of the rear tractor tipper trailer.

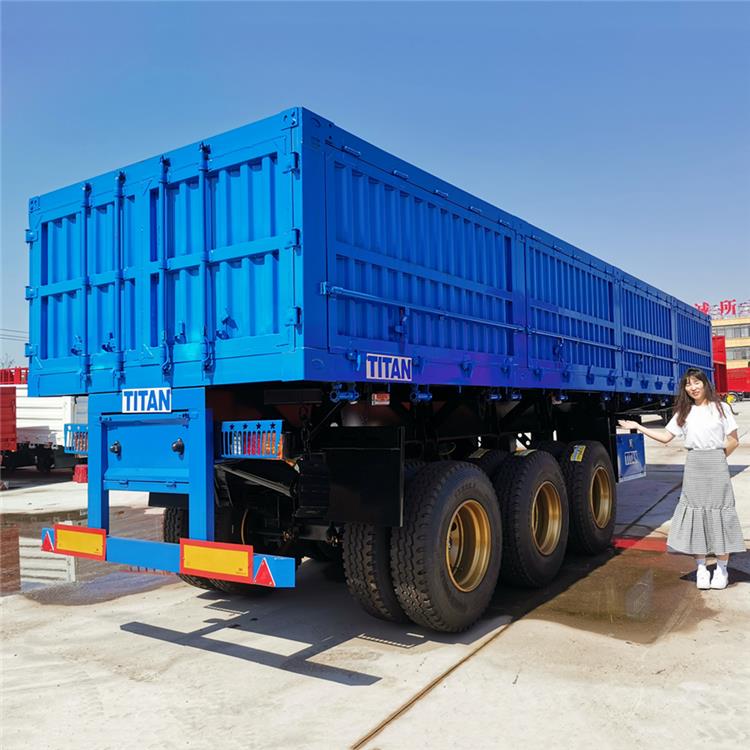

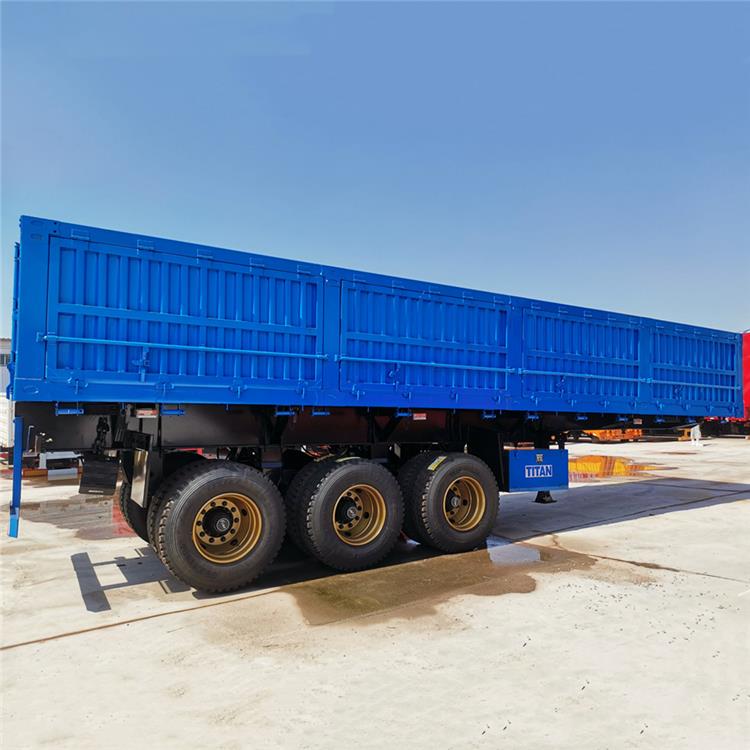

Side Dump Trailer for sale suitable for large workplaces, Side Tipper Trailer maximum carrying capacity can reach 80-100tons. Dropside side tipper trailer for sale is another type of dump trailer, and it allows goods to be unloaded from the side. The main types of cargo transported by this semi-trailer are building materials, such as stone, sand, etc.

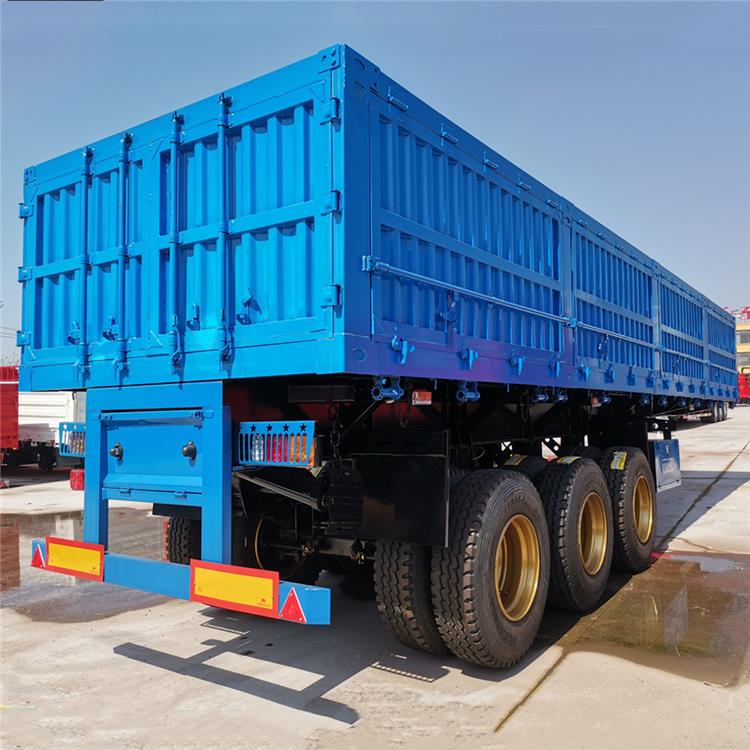

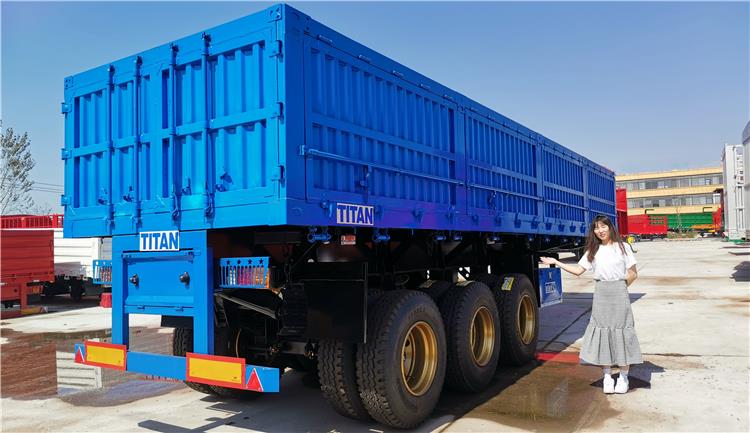

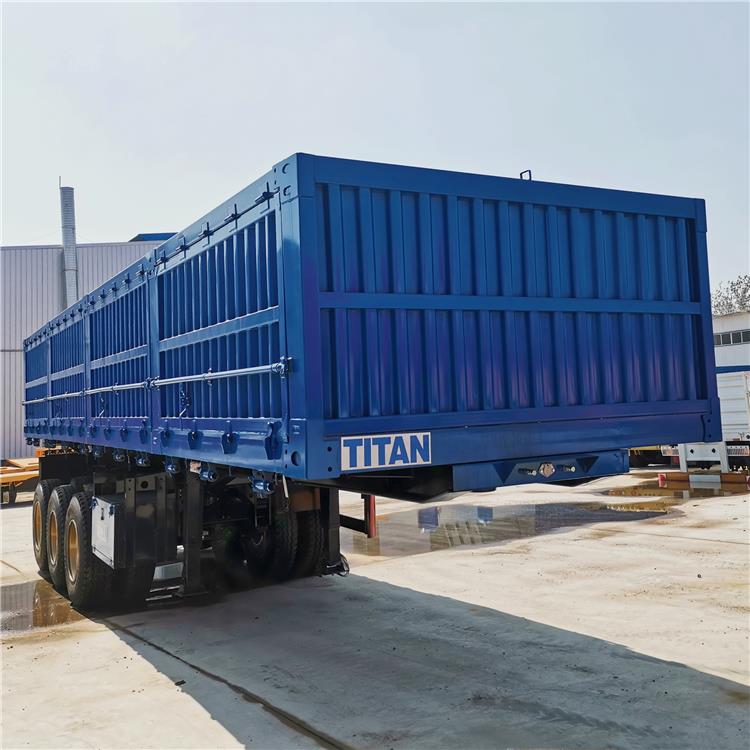

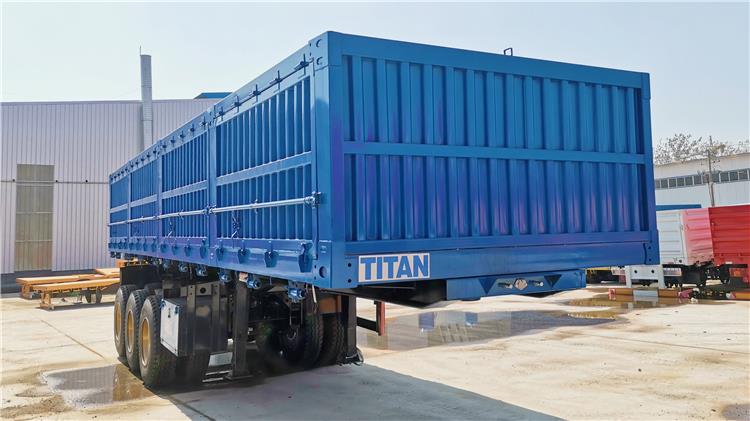

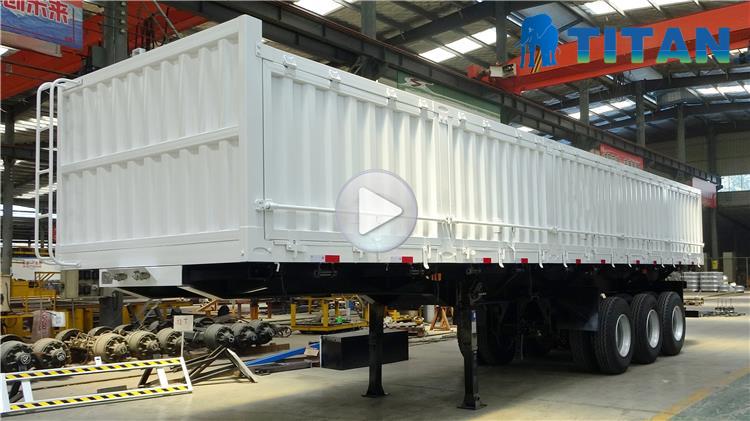

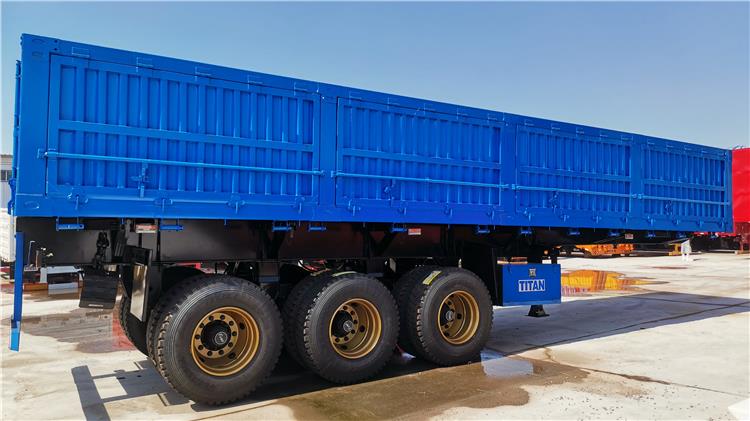

TITAN 3 Axle Side Tipper Trailer--USD 16800
Dimension: 11000*2500*3200mm
Material: Q345B High strength steel
Cargo body size: 11000*2570*1500mm; Middle plate:480mm height , 8mm thick
Main beam: Upper:14mm thick; Bottom:16mm thick
Side beam: 160mm channel steel
Bottom thickness: 4mm
Sidewall thickness: 3mm
Axle: 3 axles, 13 ton TITAN
Tire: 12R22.5, 12 units
Hydraulic system: TITAN 5*130 hydraulic cylinder; 1pcs displacement cylinder
Suspension: 100mm thickness, 70mm king pin
Spring: 10 pcs, 16mm thickness
Landing gear: JOST E100
Braking system: WABCO emergency brake valve

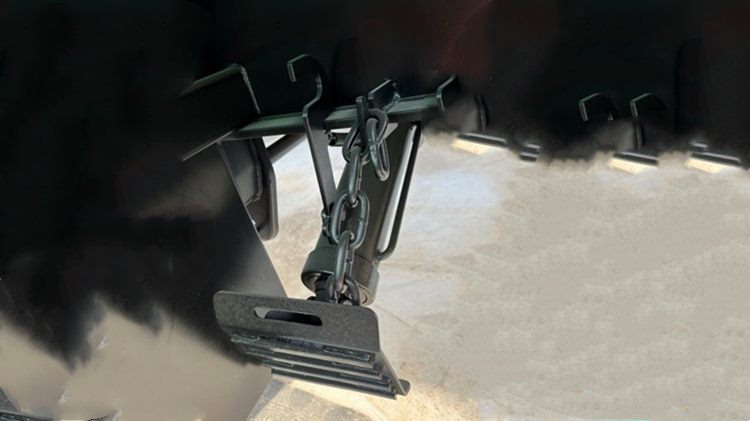

Accessories: 1 standard tool +1 spare tyre carrier
Color: Optional

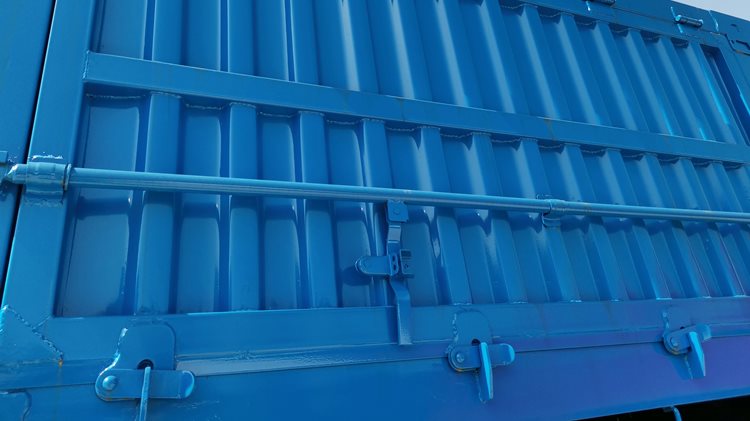

Door strike plate and lock rod

Shift Top

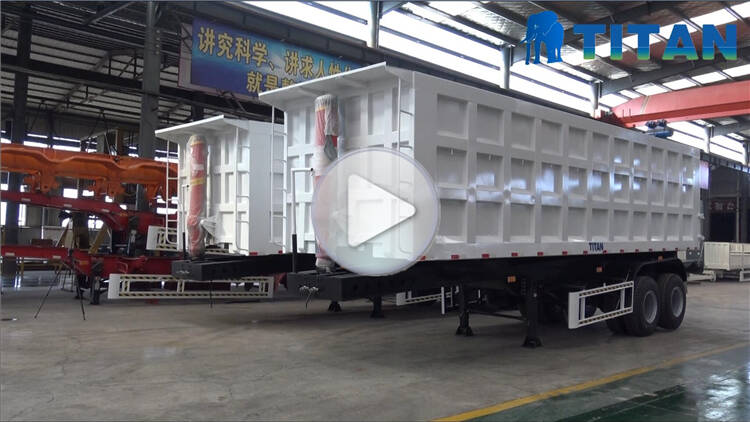

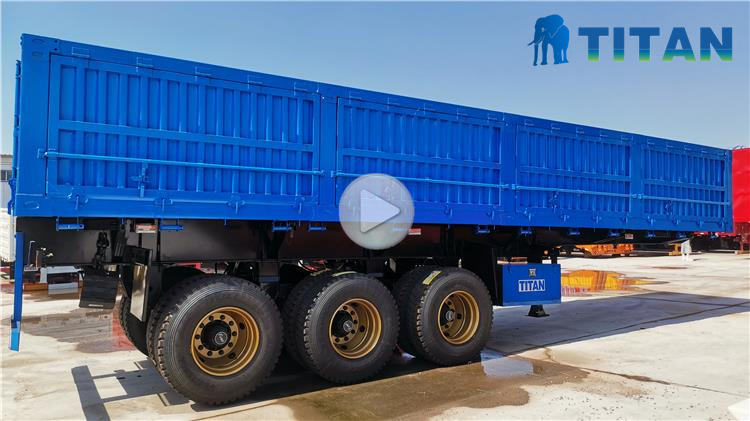

Through these videos, you can learn about different types of semi tipper trailers, as well as the process, testing, packaging and customer feedback, etc.
