One of its most practical advantages lies in its optimized loading and unloading system. The low-profile deck, combined with a reinforced rear ramp assisted by heavy-duty springs, allows construction machinery to be moved smoothly without relying on external lifting equipment.
Overall Dimension: 13000mm*3000mm*1710mm

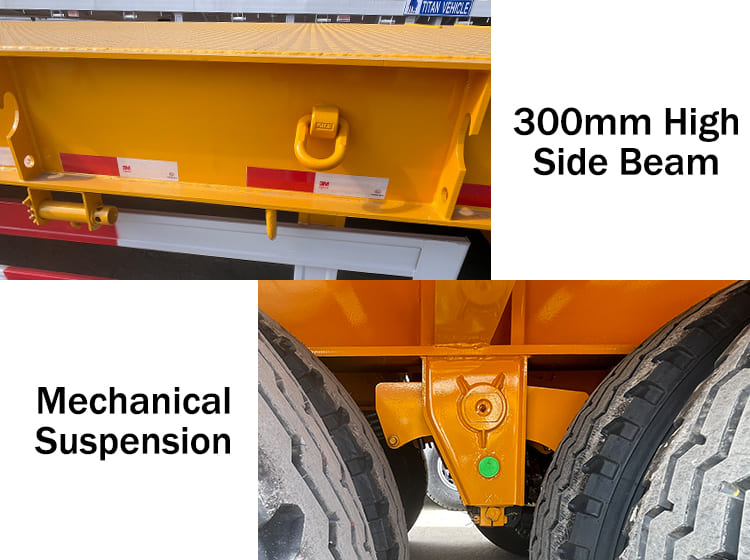

Side Beam: 300mm high, 8mm thick
Floor Plate: 5mm thickened pattern plate
Axles: 4 axles, 13ton, TITAN brand
Tire: 16 units, 12R22.5
Suspension: mechanical suspension
Leaf Spring: 10 layers
Ramp: 16mm thick spring ramp
Landing Gear: 28 ton
Lamp: LED lamp
At the core of the low loader trailer is a highly reinforced load-bearing structure. The main beam is fabricated from Q460 high-strength steel, offering exceptional tensile resistance and load capacity compared to conventional materials. This structural advantage enables the chassis to handle extreme weight without compromising alignment.

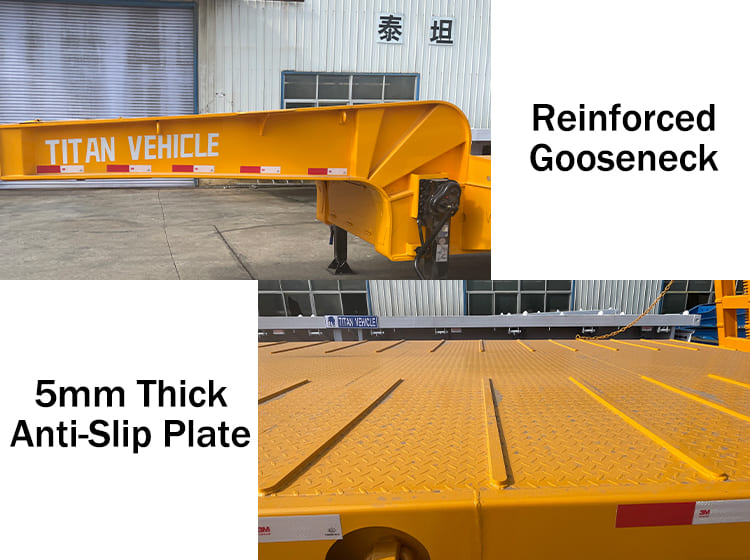

To further enhance rigidity, the gooseneck section incorporates a double-layer vertical plate reinforcement. This composite configuration effectively minimizes torsion and bending, ensuring that the 4 axle low loader remains stable and secure throughout long-distance transport routes in Senegal.
The cargo platform of the low loader trailer for sale adopts a patterned steel deck rather than a smooth surface. Constructed from 5 mm thick high-strength steel plates, the deck features a raised texture that increases friction between the platform and transported machinery.
This design helps prevent cargo shifting during braking, cornering, or uneven road conditions. For heavy equipment operators in Senegal, this enhanced grip translates into improved safety and reduced risk of load displacement during transit.
Surface durability is another critical focus of the 4 axle low loader. Each unit undergoes a two-stage finishing process that begins with powder coating and is followed by high-temperature baking paint. This treatment provides superior resistance to corrosion, abrasion, and color fading.
In the hot, dusty, and sometimes coastal environments encountered across Senegal, the protective finish helps maintain both structural integrity and appearance over extended service periods, reducing repainting frequency and long-term maintenance costs.

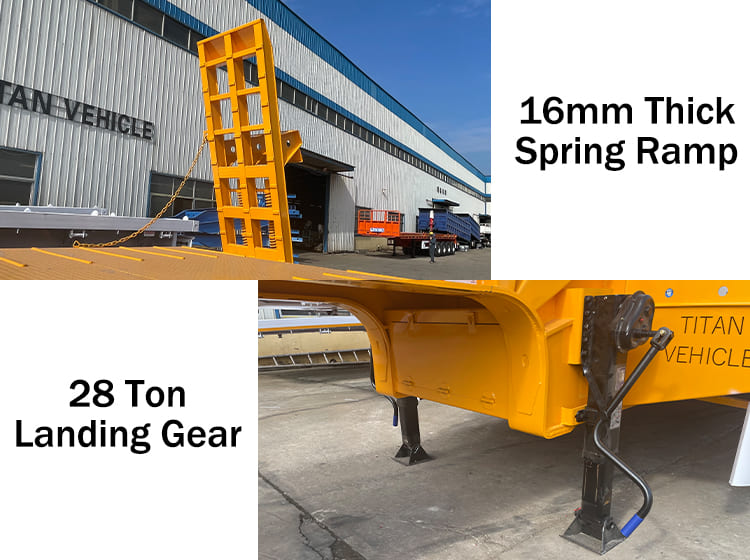

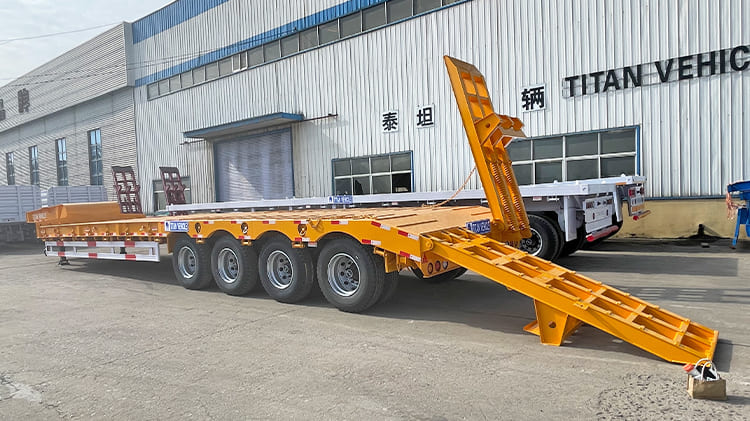

The rear loading ramp of the low loader trailer is engineered for both strength and operational convenience. A 16 mm thick ramp panel is supported by reinforced springs that absorb impact during loading.
This spring-assisted system allows a single operator to raise or lower the ramp smoothly, even when handling oversized equipment. Such efficiency is particularly valuable on job sites in Senegal where rapid turnaround times and limited manpower are common challenges.
To ensure safe transport, the low loader trailer for sale is equipped with multiple rope tighteners distributed along both sides of the chassis. These fastening points form a coordinated securing system that works together with the reinforced deck to stabilize cargo from multiple directions.
Each rope tightener features a quick-lock mechanism and allows precise tension adjustment, ensuring machinery remains firmly secured even during sudden braking or sharp directional changes.
Visibility and safety are further enhanced through an upgraded lighting system. High-brightness LED lamps outline the 4 axle low loader, improving visibility in low-light, dusty, or foggy conditions. Each lamp is enclosed within an impact-resistant housing that protects against debris and vibration, supporting consistent performance during long-haul transport operations across Senegal.
Braking reliability is another essential aspect of the low loader trailer design. Heavy-duty 16-ton brake pads deliver strong and responsive stopping power, reducing braking distance under full load.
The air pipeline system uses pressure-resistant rubber hoses that extend service life, while the electrical system employs reinforced cables to ensure stable signal transmission. This combination enhances overall safety and reliability, especially when operating on rugged or uneven routes commonly found in Senegal.
Before export, every low loader trailer for sale undergoes comprehensive packaging protection. Exposed steel surfaces are sprayed with moisture-resistant wax, after which the entire unit is wrapped in durable waterproof fabric.
This dual-layer preservation method shields the 4 axle low loader from humidity, salt air, and corrosion during marine transport. As a result, each low loader trailer arrives in Senegal in optimal condition, ready for immediate deployment without additional preparation.
