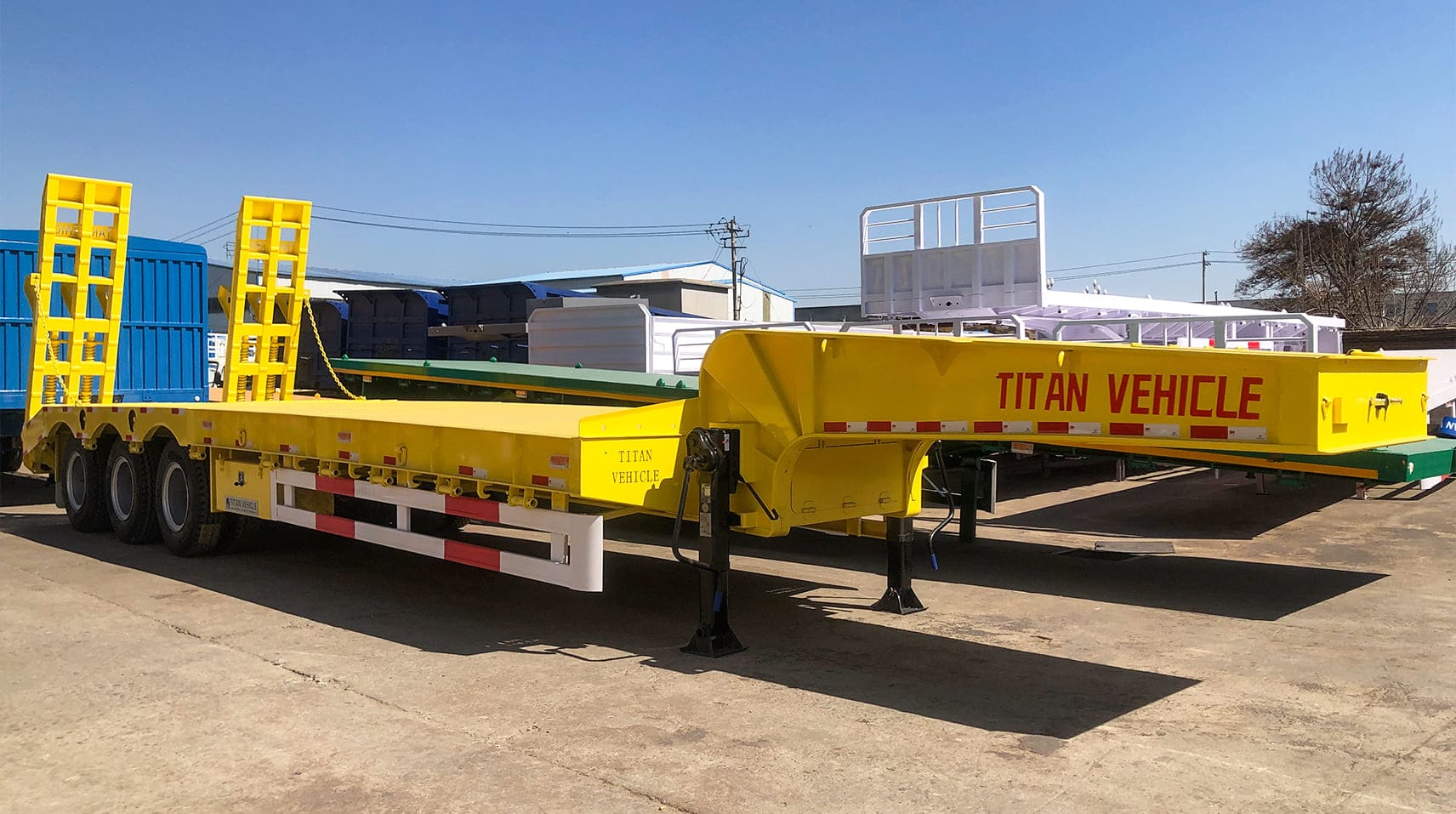

The 40 feet 3 axle low bed trailers are specially designed for long-distance transportation. The 40 feet 3 axle low bed trailer can transport large and heavy equipment such as large construction machinery, agricultural machinery or industrial equipment. After careful design and multiple improvements, 40 feet 3 axle low bed trailers adapt to local road conditions while providing a high-load transportation experience, making them a reliable choice for transporting large equipment.
The 3 axle low bed trailer adopts an economical structural design scheme, which is developed mainly for the typical road environment of Trinidad and Tobago. The open frame structure of the low bed trailer breaks through the vertical space constraints of traditional transport equipment and achieves unlimited loading height by eliminating the side panels and roof components. The structural feature not only reduces the difficulty of equipment loading, but also adapts to the transportation needs of special-shaped goods.

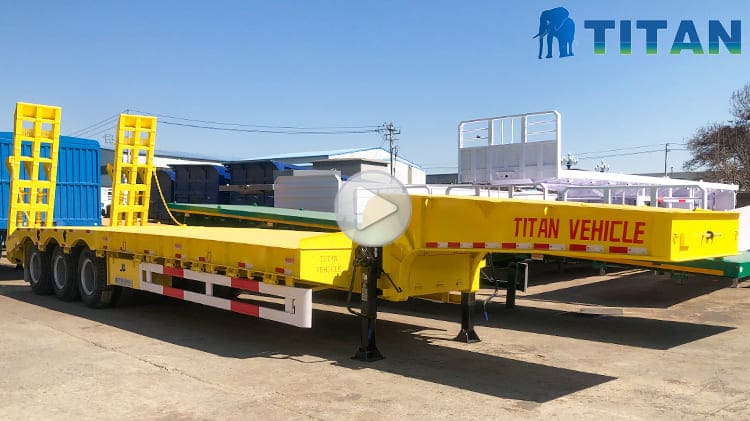

40 Feet 3 Axle Low Bed Trailer Price for Sale in Trinidad and Tobago
40 Feet 3 Axle Low Bed Trailer Price for Sale in Trinidad and Tobago
Model: 40 Feet 3 Axle Low Bed Trailer

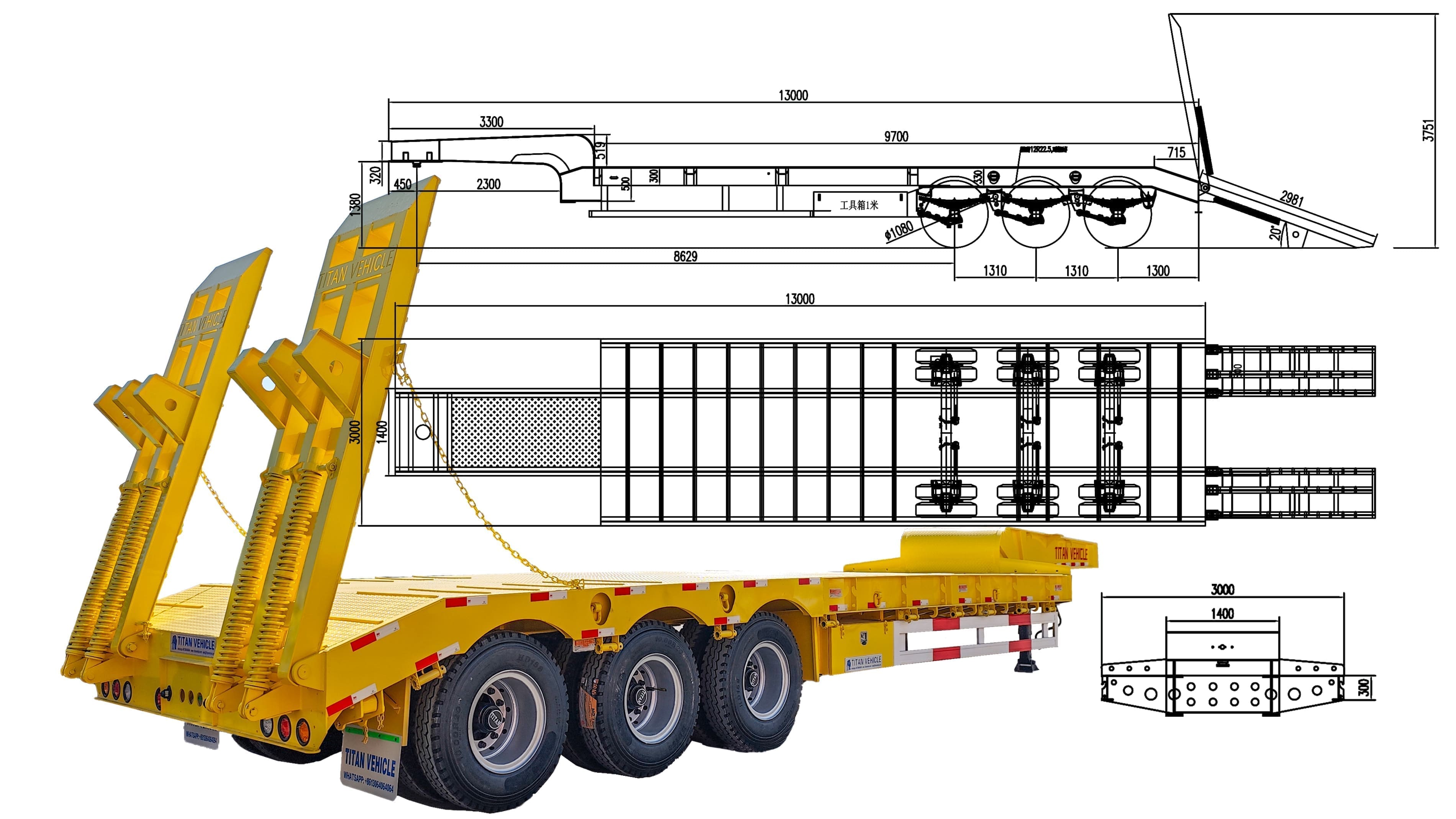

Overall Dimension: 13000mm*3000mm*1700mm
Load Capacity: 60 ton
Floor Plate: 5mm thick pattern plate
Side Beam: 300mm high, 8mm thick
Axles: 3 axles, 13ton
Tire: 12 units, 12R22.5
Ramp: thickened spring ramp
Landing Gear: 28 ton
Leaf Spring: 10 layers
Suspension: mechanical suspension
Lamp: LED Lamp

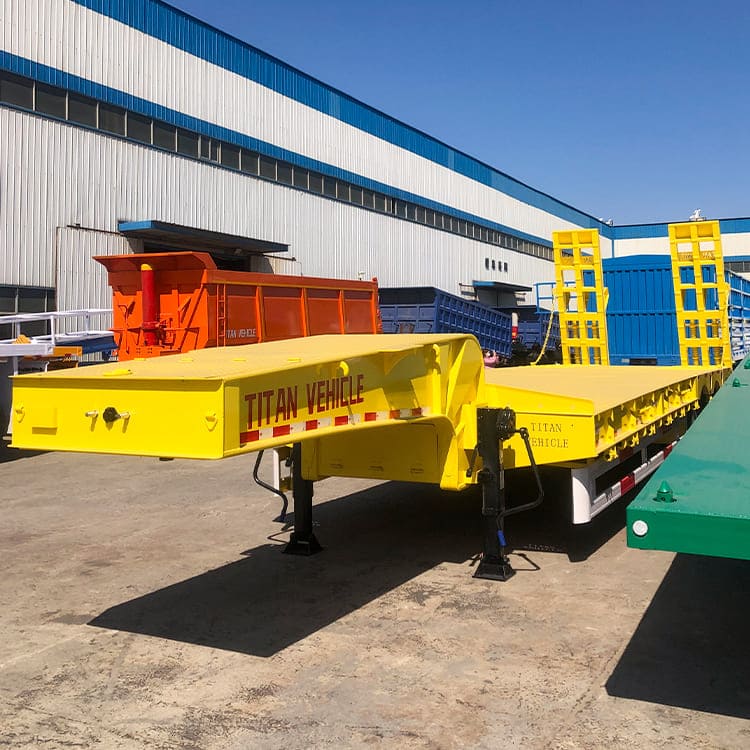

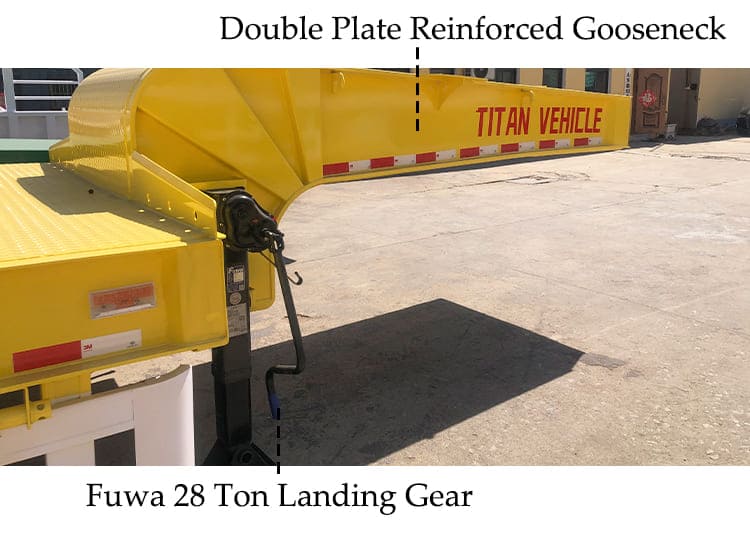

The 3 axle low bed trailer main beam is constructed of Q460 grade high-strength alloy steel, whose yield strength and tensile properties are improved step by step compared with conventional steel, providing a reliable structural foundation for heavy-load transportation scenarios. The double-layer reinforced gooseneck structure is continuously optimized and adjusted to control the deformation of the 40 feet low bed trailer chassis within a certain amount under extreme load conditions.
The low bed trailer price crossbeam is made of HG60 high-strength steel with a 6 mm thickness reinforcement solution to improve the local compressive strength. The scientifically arranged diagonal brace support network constructs a stress conduction system with a spacing of 500 mm to ensure that the longitudinal pressure is evenly distributed to each bearing point of the low bed trailer floor plate, effectively avoiding the risk of structural deformation caused by local overload.

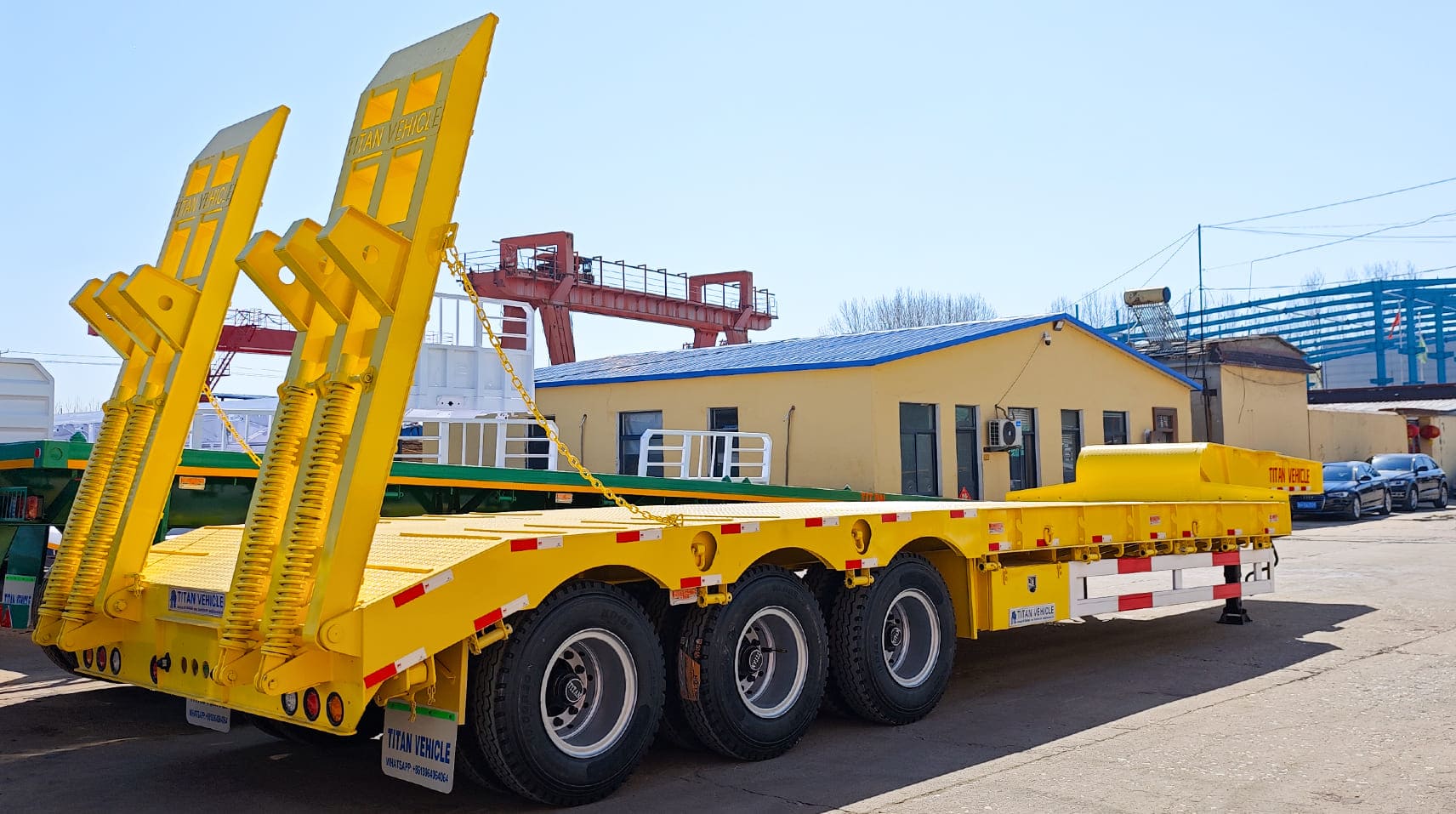

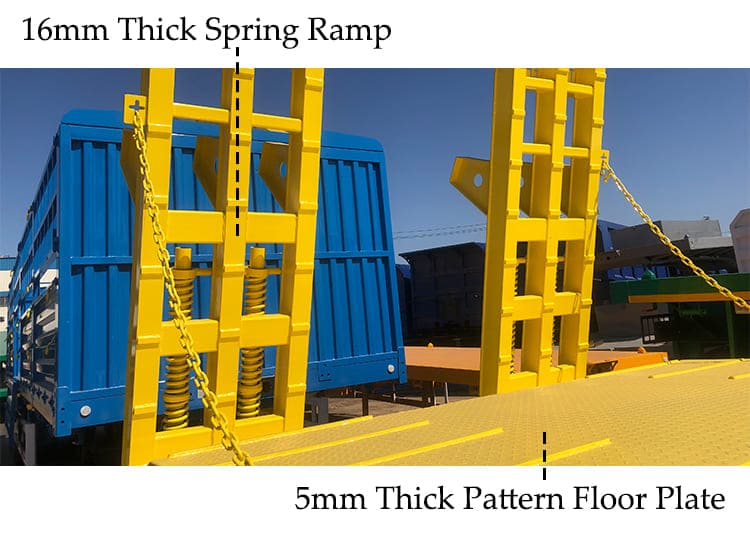

The 40 feet low bed trailer spring ramp forms a dynamic load buffering mechanism through an innovative combination of 16 mm thickened spring components and an adaptive adjustment system. The low bed trailer price ramp can be adjusted to a certain angle, while maintaining the stability of the equipment contact surface, absorbing the instantaneous impact load and ensuring the stability of the equipment during loading and unloading.
The operation process of the low bed trailer spring ramp has been simplified and designed, and a single person can quickly complete the loading and unloading operation.
The 3 axle low bed trailer landing gears are equipped with a 28-ton lifting capacity and a 60-ton static load threshold. The low bed trailer landing gear wide base contact surface optimization technology greatly reduces the ground pressure with the road through a multi-directional stress dispersion structure, adapting to a variety of Trinidad and Tobago complex terrains such as sand, gravel, and muddy land.

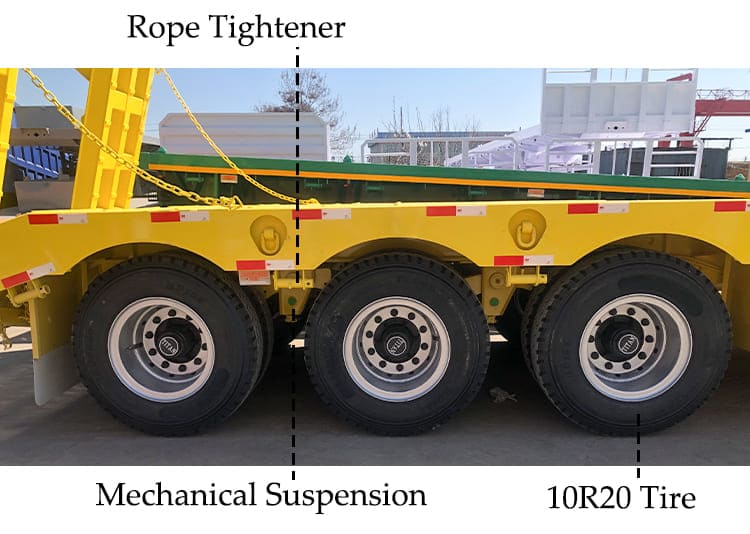

The rope tighteners distributed on the side extend to cover the entire 3 axle low bed trailer body, and through cooperation with high-strength ropes, which can achieve all-round tightening of heavy equipment, effectively responding to the inertia force generated by sharp turns or emergency braking of the low bed trailer price.
The 5mm thickened patterned floor plate forms a high-friction bearing surface, combined with the 40 feet low bed trailer tail anti-skid horizontal bar design, to build a three-dimensional anti-displacement system, which can not only protect the equipment during loading and unloading, but also prevent the equipment from moving during transportation. Compared with the conventional 4mm floor plate, TITAN low bed trailer price design has significant advantages in structural strength and anti-skid performance.
In response to the special protection needs of the shipping environment, TITAN low bed trailer has an innovative packaging solution. All 3 axle low bed trailers are sprayed with protective wax before delivery, and then equipped with moisture-proof rain cloth to form a double isolation barrier. The composite protection system can effectively block the corrosion of the high salt spray environment on the 40 feet low bed trailer body, and its protection performance is much better than conventional packaging.
