The main beam of TITAN 9 axle low bed truck trailer is made of Q460C high strength structural steel. Q460C steel has a yield strength of ≥620Mpa, which is more durable and stronger than ordinary steel. Its bearing capacity is 5 times that of the trailer made of Q345 steel.

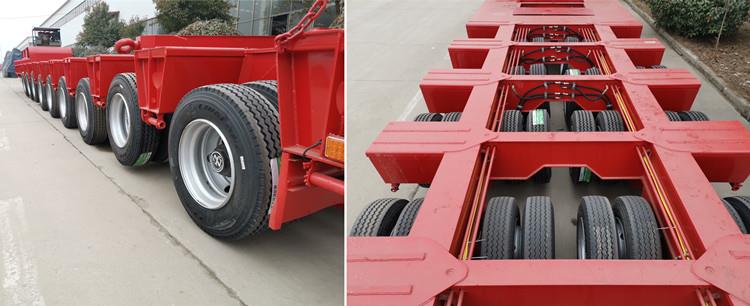

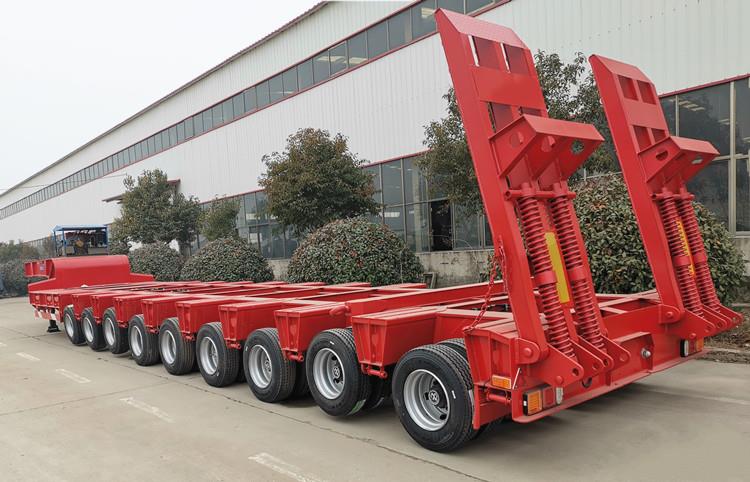

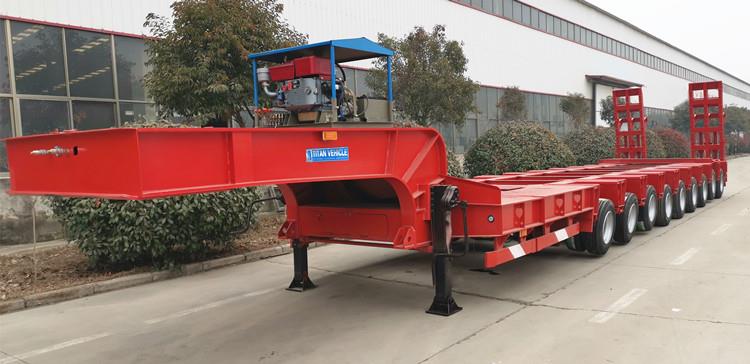

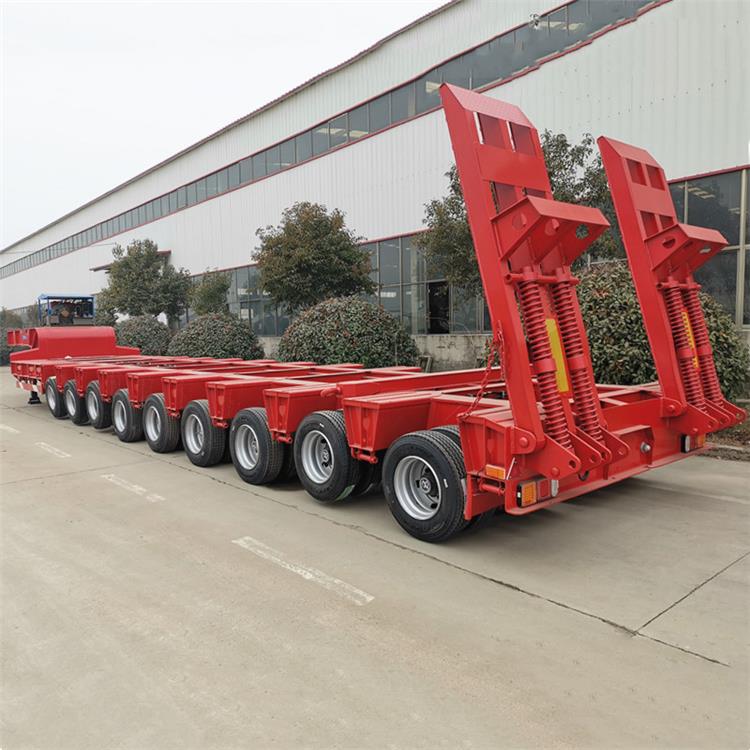

9 Axle Hydraulic Low Bed Truck Trailer for Sale
9 Axle Hydraulic Low Bed Truck Trailer for Sale
Overall dimension: 18000mm * 3300mm *3400mm
Loading capacity(T): 120-150 Ton
Axle: 9 axles, 13T/16T, FUWA / BPW / TITAN Brand
Tire: 36 units, 11.00R20
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.
Bottom Platform: 5mm thick checkered plate
Ramp: hydraulic type
Gooseneck: Optional
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)

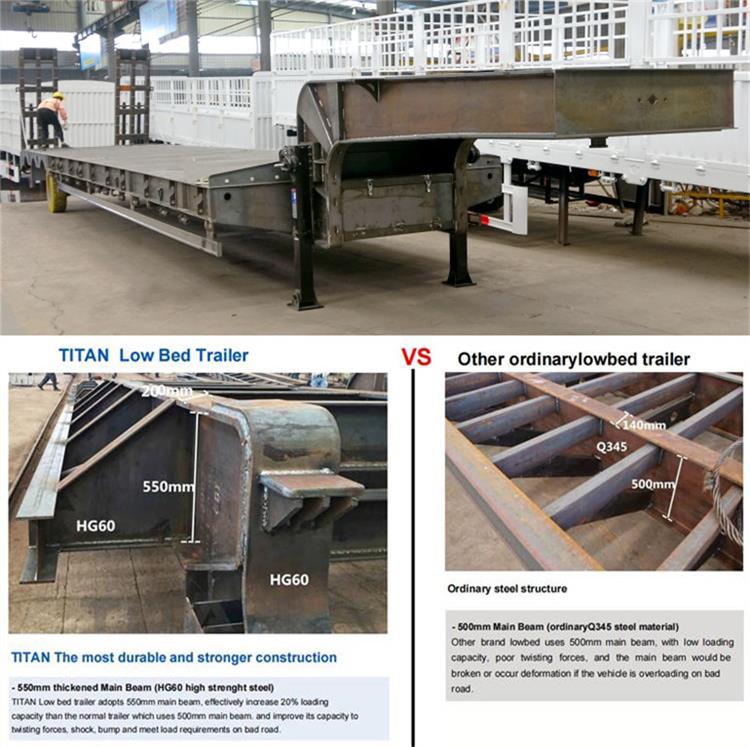

1. The side beam adopts "H" shape design and is welded with T700 high strength steel and it is designed H shape with a height of 300mm, width of 140mm and thickness of 8mm. Its bearing capacity is twice that of other steel, and it will not deform after ten years of use.
2. The beam design, our side support beam use Q460C high strength structural steel. And the inclined support is Q460C with a thickness of 6mm. Effectively connect the main beam and side beam together as a whole. Bearing capacity anti - turbulence capacity greatly increased, the service life more than 10 years.
3. TITAN low bed trailer main beam gooseneck lower has a reinforcement, gooseneck double plat. The trailer in the heavy load when the deformation range is very small, better to use.
4. World famous brand spare part, ensure high quality and save costs.
Through this video below, you can learn about different types of low bed truck trailers, as well as the process, testing, packaging and customer feedback, etc.
