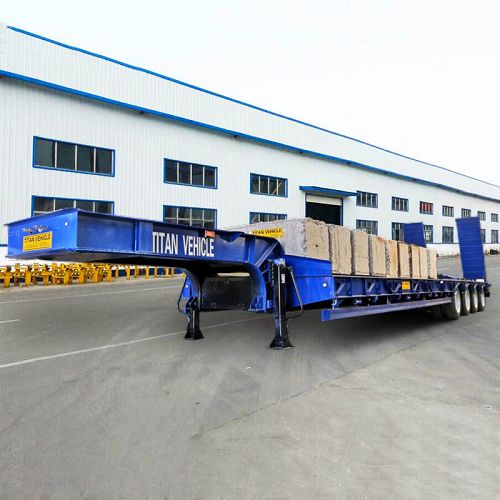

100 ton 4 Axle Low Loader Trailer for Sale use high strength steel material to ensure the capacity, the load can be up to 100 to 120 ton payload.
TITAN 100 ton 4 Axle Low Loader for Sale Main beam height is 550-580mm. The front/down plate width is 220mm, and thickness is 22mm. That durable and stronger construction ensure the loading capacity, and also improve its capacity to twisting forces, shock, bump, and meet load requirements on bad road condition.

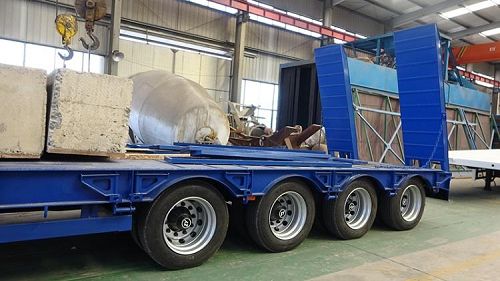

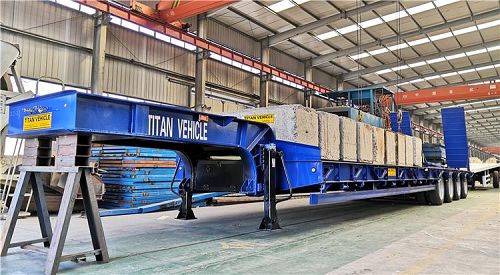

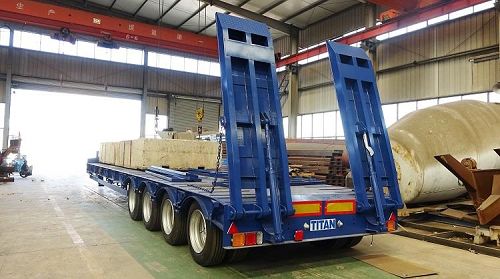

China 4 Axle Low Loader for Sale in Botswana
100 ton 4 Axle Low Loader for Sale
1. Main beam adopts HG high strength steel, with high loading capacity.
2. Side beam adopt “H” steel, the durable design avoid the side beam to have the deformation.
3. The loading ramps is made by high strength steel, with high loading capacity, will not happen to the deformation when carry heavy equipment.
4. polyurethane paint, with long service lift, and avoid the vehicle get rust.
5. World famous brand spare part, ensure high quality and save costs.
Loading capacity ：100-120 ton

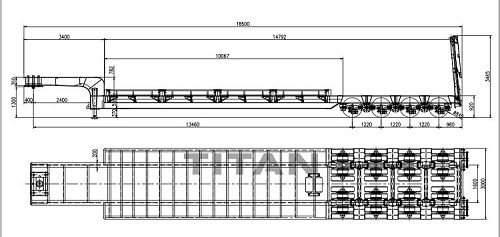

Overall dimension：18500mm * 3000mm *3465mm
Axles：4 axles
Suspension：Heavy duty mechanical spring suspension
Tire：16 units
King pin：90#
Landing gear：JOST
Brake system: WABCO
Electrical system：24V, LED lights

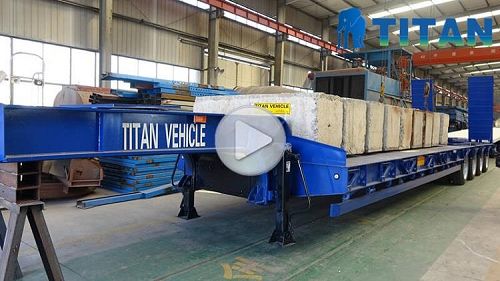

4 Axle 100 Ton Lowbed Semi Trailer details display video
