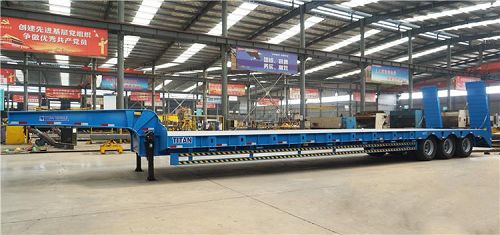

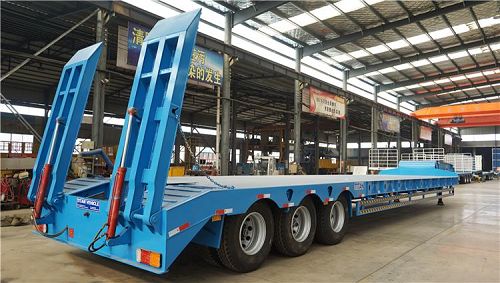

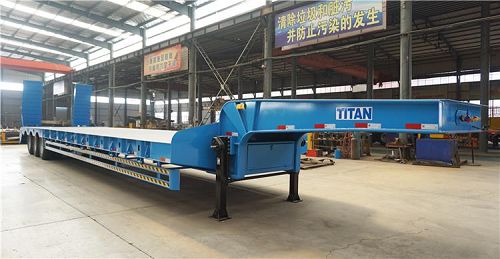

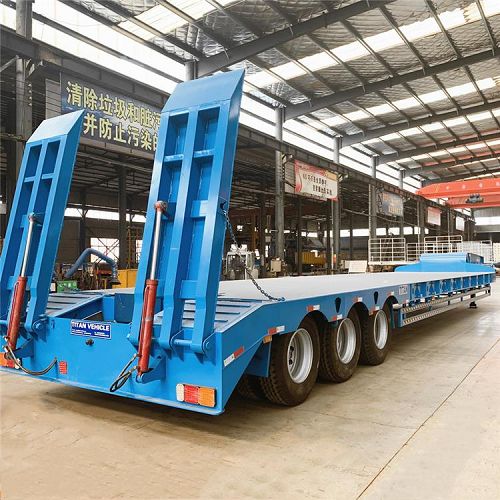

3 Axle Low Bed Trailer for Sale with Hydraulic Ramp, three styles of low loader trailer ramps, the most common is spring ramp. There are also ordinary hydraulic ramps and folding hydraulic ladders. TITAN 3 Axle Low Bed Trailer is widely used in heavy machines transportation.
The lower the platform height of the low bed trailers, the better the stability and safety. 3 Axle Low Bed Trailer has a large carrying capacity when transporting extra high and medium cargo.
3 Axle Low Bed Trailer for Sale
Low Bed Trailer with Hydraulic Ramp
Overall dimension: 13000mm * 3000mm *3400mm
Loading capacity(T): 40-100T
Axle: 13T/16T, FUWA / BPW / TITAN Brand
Rim: 8.0-20
Tire: 11.00R20
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.
Bottom Platform: 5mm thick checkered plate
Ramp: hydraulic type
Gooseneck: Optional
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
