Low Loader

3 Axle Low Bed Trailer for Sale with Hydraulic Ramp, three styles of low loader trailer ramps, the most common is spring ramp. There are also ordinary hydraulic ramps and folding hydraulic ladders.
China 100 ton 4 Axle Low Loader Trailer for Sale in Botswana, 4 Axle Low Loader for Sale use high strength steel material to ensure the capacity, the load can be up to 100 to 120 ton payload.
TITAN VEHICLE is a producer in CHINA for Tri Axle Low Loader , Tri Axle Low Loader for Sale , Tri Axle Low Loader Price , Drop Deck Trailer , Lowbed Semi Trailer.
Lowbed Semi Trailer for Sale with Dolly is tested for carrying capacity after production is finished, Now the best low bed at an affordable price.
TITAN produces 150 ton 4 line 8 axles low bed trailer for transport heavy duty machines
4 axle lowbed semi trailer use high strength steel material to ensure the capacity, the 120 ton low bed trailer for sale load can be up to 100 to 120 ton payload.
9 Axle Hydraulic Low Bed Trailer for Sale in African market, TITAN different types of hydraulic low bed trailer , 9 axle low bed trailer , low bed truck trailer , low bed trailer for sale , hydraulic low bed.
  • 1/1

Low loader trailer stock sale, send inquiry to get $500 discount!


Low loader trailers are usually used to carry construction and engineering plant or wide and high loads. They come in a number of configurations and some low-loaders can be extended to accommodate especially long loads.  The loading capacity can customize according to your requirement.

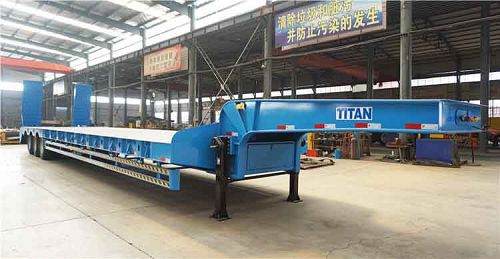

3 axle low bed trailer

3 axle low loader trailer for sale

Low loader Specifications:

Tare weight: About 8.5-13T

Dimension: 13000mm x 3000mm x 3400mm

Loading capacity(T): 40-100T

Axle: 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20 or 900*22.5

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension or air suspension

Spring leaf: 120(W)mmx16(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

Main beam: Height: 500mm-550mm, Upper plate: 16mm-25mm, Middle plate: 12mm-20mm, Lower plate: 18mm-25mm, Material: Q345B steel.

Bottom Platform: 4-6mm thick checkered plate

Ramp: spring or hydraulic type

Gooseneck: Optional

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats.

Shipping terms: Transported by the bulk carrier in an RORO or 40HQ container

low loader dimension

Low loader dimension

Low Loader Trailer Advantage:

TITAN Low loader Trailer main beam adopts Q460C High Strength Steel Material
- Q460C steel has high yield strength, more durable and stronger than ordinary steel, and its loading capacity is 5 times more than the low loader which is built by Q345 steel. - Each ton of Q460C high strength steel costs double the price of ordinary Q345 steel material, ensuring that our TITAN low loader trailer will have a long service life and to avoid unnecessary maintenance costs.
Other factories low loader trailer
- The yield strength of Q345 steel is just 345Mpa, so it can not meet the high loading capacity requirements and the main beam of the heavy haul trailer would be broken when the excavator trailer is overloading.
- Q345 steel is low-cost steel, with short service life, increase maintenance costs and also can not meet load requirements on different kinds of roads.

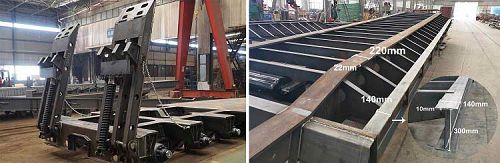

Low Bed Trailer factory
Low Loader Trailer ramp & main beam
1. Main beam
500mm thickened Main Beam (Q460C high strenght steel)
TITAN heavy haul trailer adopts 500mm main beam, effectively increase 10% loading capacity than the normal excavator trailer which uses 450mm main beam, and ensure the main beam resistance to twisting forces, shock and bump, meet load requirements on bad road, even no road.
300mm width Main Beam
TITAN low loader trailer adopts 300mm width main beam, increase 20% loading capacity than the normal low loader trailer which uses 140mm width main beam, ensure driving smoothly.
2. Side beam
300mm Height 'I' Steel Side Beam
The side beam of TITAN low loader trailer adopts 300mm "I beam" design, and its loading capacity is 2 times more than the normal heavy haul trailer which uses 250mm side beam.
10mm thickness Side Beam
TITAN low loader truck is produced by 10mm thickness side beam, its loading capacity is much higher than the normal low loader trailer which uses 4.5mm thickness
3. Strong ramp
The loading ramps are made of T700 high strength steel, with high loading capacity, will not happen to the deformation when carrying heavy equipment.
