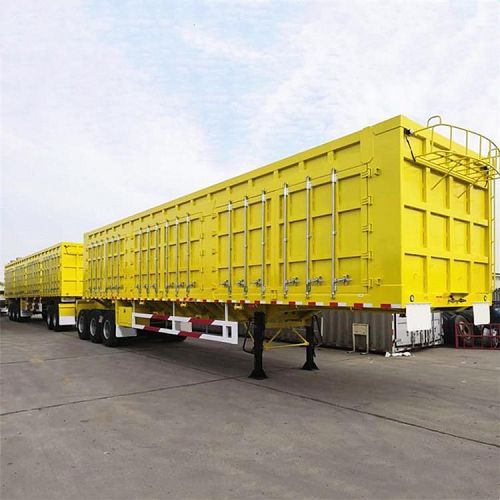

Interlink Side Tipper Trailer

Interlink Side Tipper Trailer

21400 USD

Price Reference Only.

Interlink side tipper dump trailer is another type of dump truck trailer, and it allows goods to be unloaded from the side.

SKU: Interlink Side Tipper Trailer
GTIN: 06975766112042
MPN: TITAN6812005

Product Description:

Interlink side tipper trailer is used to transport and tipping coal, sand, stone, grain, etc.

Competitive Advantage- TITAN superlink side dump trailer

High quality steel makes trailer itself lighter but strong enough for heavy cargos, so that transport company can load more tons.

Well-known brand axles, suspension systems, high performance, and reliable to use, to ensure the good performance of the vehicle.

TITAN interlink side tipper trailers are equipped with HYVA cylinder, which is more reliable and more safety.

We suppply tipper semi trailers with multiple customization options.

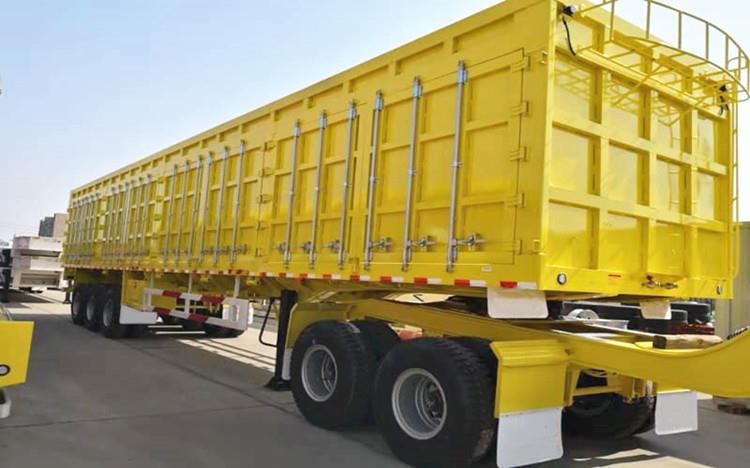

interlink side tipper trailer

Interlink Side Tipper Trailer for Sale

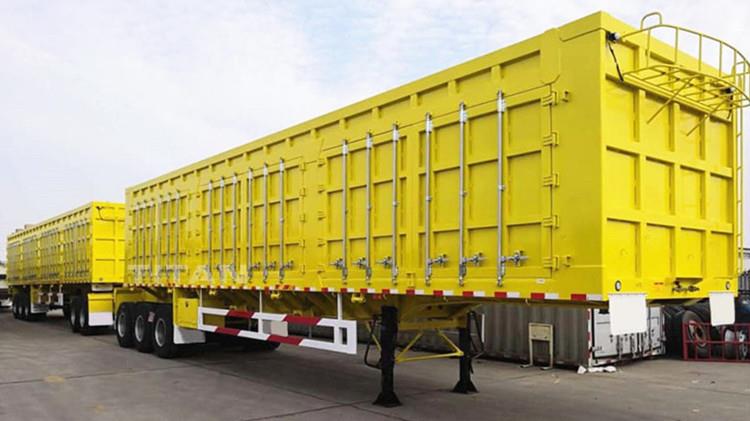

interlink side tipper trailer

Superlink Side Dump Trailer for Sale

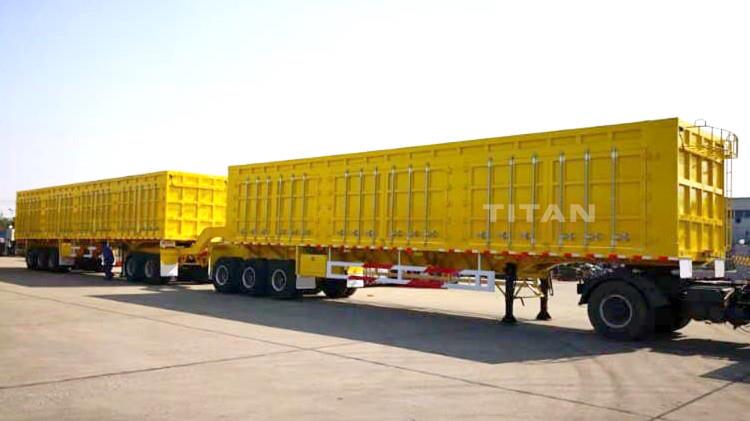

interlink side tipper trailer



Model: Interlink Side Tipper Trailer for Sale

Axles: 3+3 axles, 13T/16T ,FUWA/ BPW/ Huajing Brand

Tire: 12+12 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension(Germany or America type) or Air suspension(China brand or BPW brand)

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Lifting system: Side lifting

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
