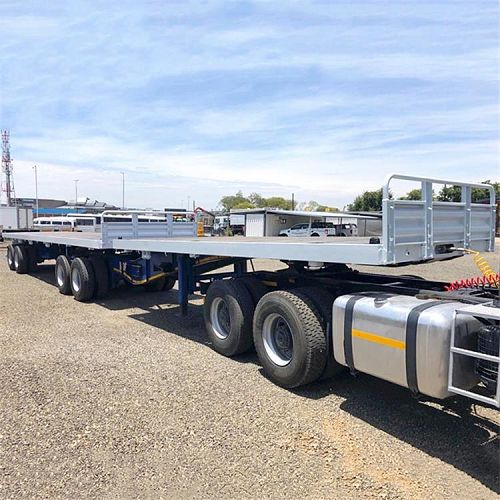

Superlink Flat Deck Trailer

Superlink Flat Deck Trailer

19600 USD

Price Reference Only.

TITAN can provide difference configurations of our superlink trailer to meet your transportation requirement.

SKU: Superlink Flat Deck Trailer
GTIN: 06975766112059
MPN: TITAN6812009

Product Description:

Flat deck superlink consists of two 20ft flatbed semi trailers. Its total loading capacity could up to 60 tons. For the superlink flat deck trailer is populaized because of its flexibility. Each of the trailers can operate independently and increase the utilization coefficient of the tractor truck.

TITAN superlink flat deck trailers for sale are noted for their highly robust structure steel, we can provide difference configurations of our superlink trailer to meet your transportation requirement.

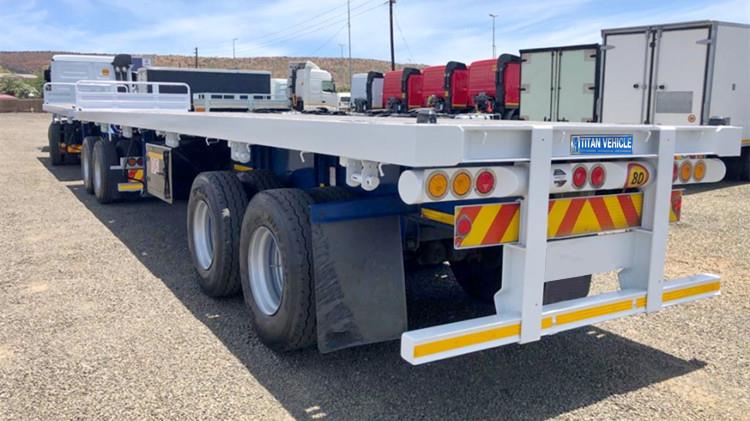

superlink flatbed trailer

Superlink Flat Deck Trailers for Sale - TITAN Vehicle

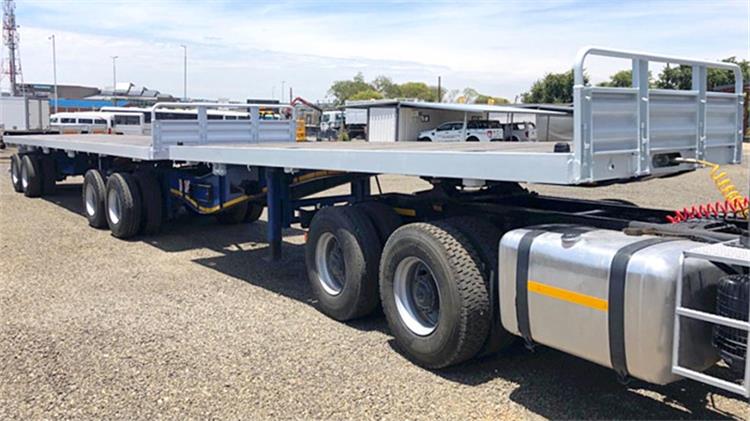

superlink flatbed trailer



Model: Superlink flat deck trailer for sale

Size: 13200*2500*1500mm

Loading capacity(ton): ≤60T

Axles: 4 axles, 13T/16T ,FUWA/ BPW/ Huajing Brand

Tire: 16 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension(Germany or America type) or Air suspension(China brand or BPW brand)

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats


Through this videos, you can learn about different types of flatbed semi-trailers, as well as the process, testing, packaging and customer feedback, etc.


flatbed semi trailer


Please click "TITAN Flatbed Trailer" to get detailed video!


Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!




Lee Blankenship from Jamaica - 2021-12-07T15:12:28+0800
Sometimes I contacted sales for some questions, they also gave the response immediately. I really appreciated it. The superlink flat deck trailers is great.
