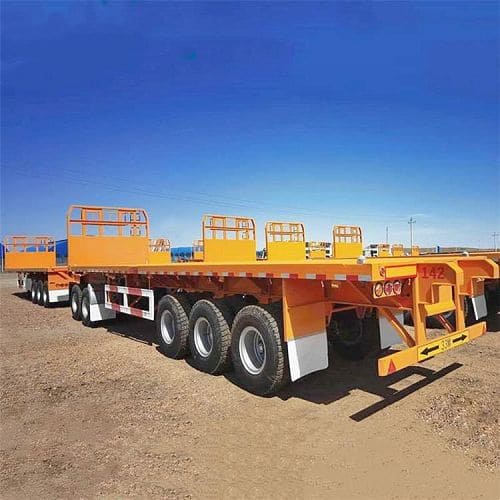

Superlink 40Ft Flatbed Trailer

Superlink 40Ft Flatbed Trailer

19800 USD

Price Reference Only.

Superlink flatbed trailer consists of two units 40ft flatbed semi trailer.

SKU: Superlink 40Ft Flatbed Trailer
GTIN: 06975766112028
MPN: TITAN6812006
Brand: TITAN VEHICLE

Product Description:

Superlink trailer for sale consists of two units 40ft flatbed semi trailer. Its total loading capacity could up to 80 tons.

For the superlink flatbed trailer is populaized because of its flexibility. Each of the trailers can operate independently and increase the utilization coefficient of the tractor truck.

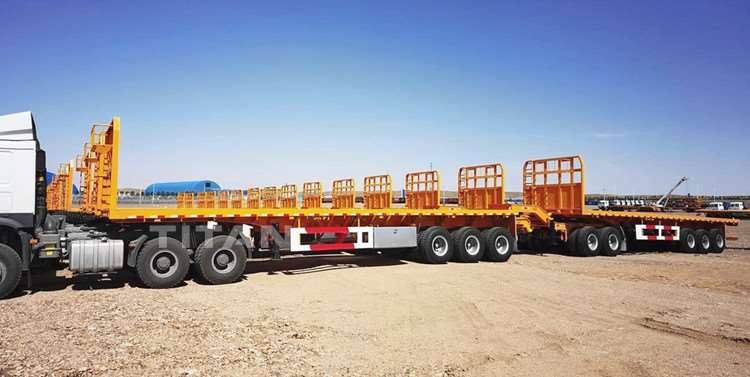

superlink trailer

Superlink Flatbed Trailer for Sale in Zimbabwe - TITAN Vehicle

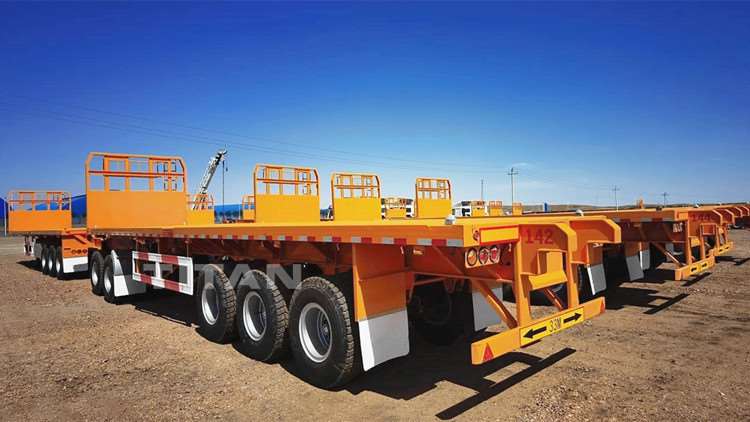

superlink trailer

Superlink Flatbed Trailer for Sale in Zimbabwe - TITAN Vehicle

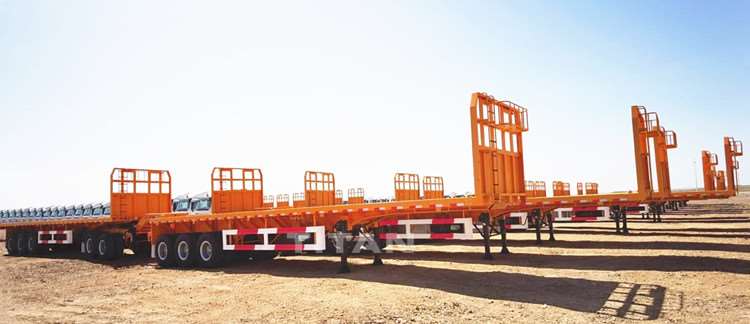

superlink trailer



Specification:

Material: High Strength steel Q345

The front trailer size: 13000*2500*1500mm

The rear trailer size: 12500 mm*2500*1500mm

Loading capacity(ton): ≤45T

Axles: 3+3 units, 13T/16T ,FUWA/ BPW/ Huajing Brand

Tire: 12+12 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension(Germany or America type) or Air suspension(China brand or BPW brand)

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

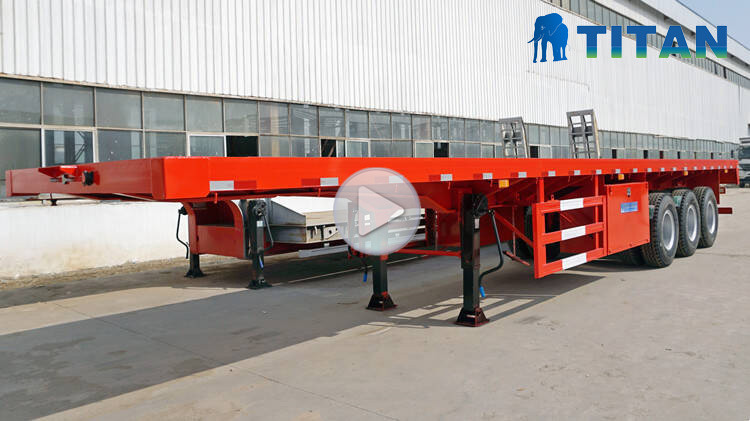

Through this videos, you can learn about different types of flatbed semi-trailers, as well as the process, testing, packaging and customer feedback, etc.



flatbed semi trailer



Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!

Feedback

Review

alfredo barajas from Zimbabwe - 2021-12-07T15:12:50+0800
Highly recommend this superlink flatbed trailer. It's a great trailer for transporting. Thank you! A++++
