When projects call for exceptional load-bearing strength combined with precise handling, the multi axle low bed trailer provides the engineering quality and reliability required to keep complex schedules on track while ensuring sensitive cargo remains secure throughout transport.
Usage: transport heavy duty cargo/equipment
King pin: 3.5 inch bolt-in king pin

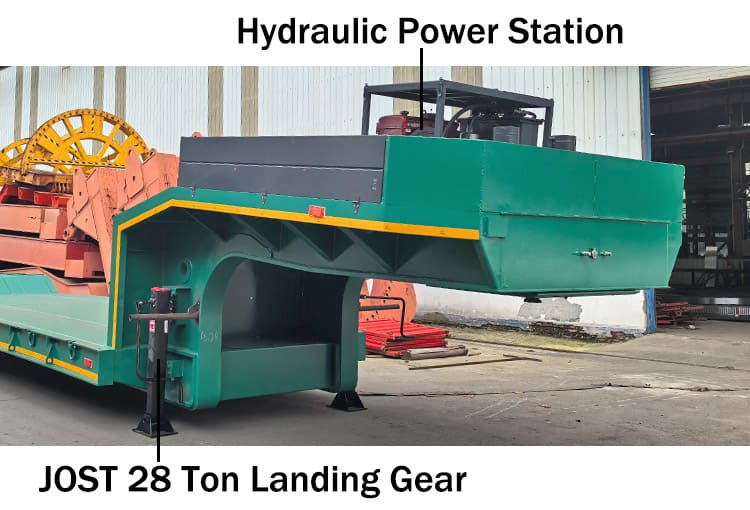

Hydraulic Power Station: 13.2Kw
Dimension: 19215mm*3100mm*2600mm
Max Payload: 120 tons

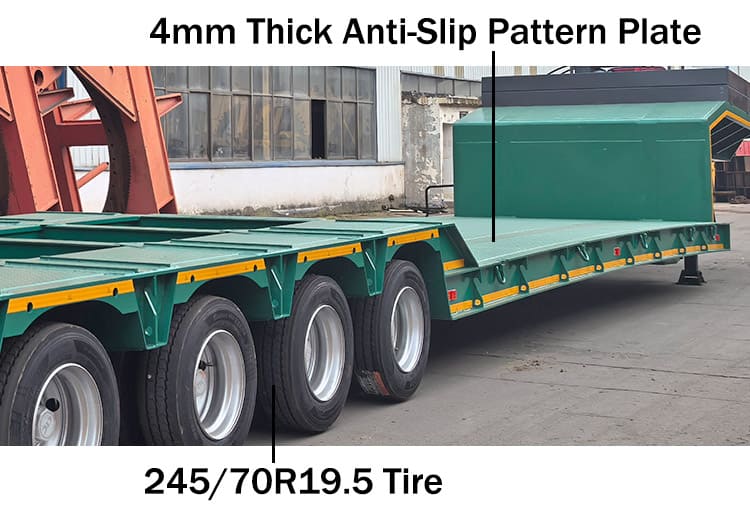

Tires: 41 units, 245/70R19.5 Tire
Axle: 5 line 10 axles, 90T
What makes this platform stand out is not just its size but the attention to engineering detail. The chassis of a hydraulic low bed trailer is constructed from high-strength steel and designed to resist torsional stress even under concentrated, asymmetrical loads.
This torsion-resistant frame distributes forces evenly across the deck and side beams, maintaining structural integrity whether moving compact through tight corridors or carrying oversized items like turbines, aerospace modules, or industrial prefabrications. Operators often highlight this adaptability as a key advantage when selecting a multi axle low bed trailer over conventional platforms.
The axle and suspension systems are central to predictable performance. Each axle line on a hydraulic low bed trailer is typically equipped with independently controlled hydraulic suspension. This allows for precise deck height adjustment and equal weight distribution across all wheels.
Such functionality ensures continuous ground contact even on uneven terrain while giving operators the ability to raise or lower the deck for obstacle clearance or precise cargo loading. On the varied road conditions often encountered in Kazakhstan, this suspension responsiveness not only protects fragile cargo but also prolongs the service life of components, further strengthening the investment case for a multi axle low bed trailer.
Maneuverability is another defining feature. Many models employ pendulum axles or independently steerable wheel groups, where each axle can turn separately or in synchronized formations.
Supported by heavy-duty steering cylinders and electronic damping, this system provides smooth, predictable motion even at low speeds under maximum load. For operators handling complex routes or navigating industrial zones in Kazakhstan, such agility can mean the difference between costly delays and seamless delivery.
The modularity of the design also enhances its value. Hydraulic low bed trailer units can be extended lengthwise to boost carrying capacity or combined laterally to create broader platforms. The couplings are engineered for automatic alignment and secure locking, preventing micro-movements between connected sections.
Logistics planners seeking versatile fleets often choose the multi axle low bed trailer for this reconfigurability, enabling one system to handle a wide variety of transport missions without requiring an entirely separate fleet of specialized equipment.
Suspension contributes not only to comfort but also to operational safety. Advanced hydraulic systems actively compensate for uneven loads and changing terrain in real time, ensuring continuous ground contact and minimizing pitching or vibration.
During roll-on/roll-off operations, ramp approaches, or when negotiating obstacles, operators can lower the deck to achieve a lower center of gravity or raise it for clearance. In Kazakhstan, where projects may span both rugged rural environments and densely developed urban settings, this adaptability ensures smooth transitions and reduces operational risks.
Modern control systems tie together the vehicle's advanced mechanics. Sensors continuously monitor deck height, axle stroke, and load distribution, feeding real-time data to the operator. These insights allow for immediate correction of imbalances before they become critical.
Integration between suspension, steering, and propulsion ensures that the hydraulic low bed trailer responds predictably to operator commands, enhancing both safety and productivity. This digital integration is one of the primary reasons buyers seeking a data-informed transport solution gravitate toward the multi axle low bed trailer.
For projects that demand reliability, safety, and precision above all, the hydraulic low bed trailer consistently delivers, whether moving oversized equipment, fragile infrastructure modules, or high-value industrial components.
Each multi axle low bed trailer undergoes finishing with protective coatings and is wrapped to safeguard against corrosion and moisture during overseas transport. By the time it arrives at its destination in Kazakhstan, the equipment is structurally sound, aesthetically preserved, and ready for immediate deployment.
