The 40000ltrs aluminum tanker trailer is a tanker truck that connects the trailer part with the tractor. The 40000ltrs aluminum tanker trailer can effectively improve the transportation efficiency. Under the condition of the same tonnage, the transportation cost is reduced and the fuel consumption is saved. At the same time, the tank body of this aluminum tanker trailer is made of aluminum alloy, which makes the overall weight of the tanker lighter and more convenient to drive.

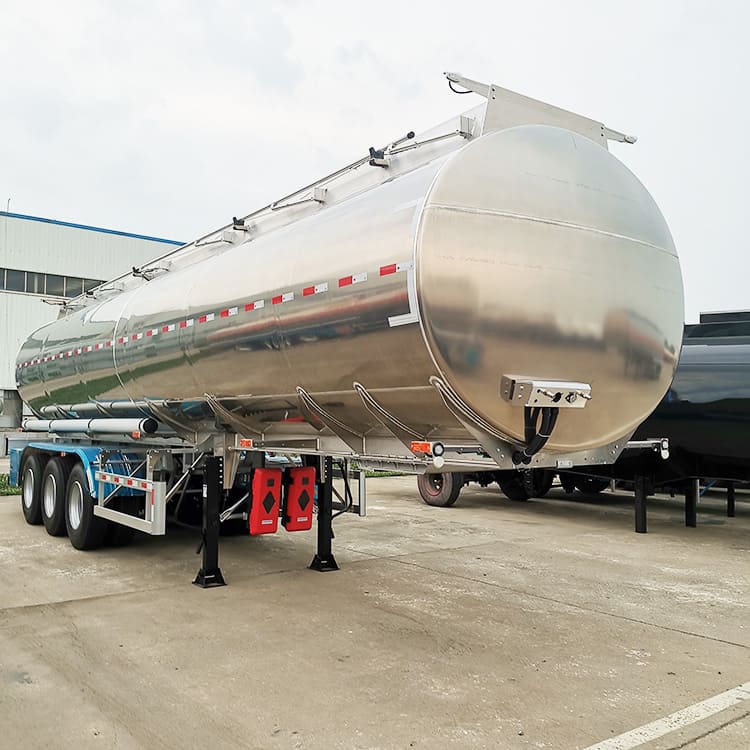

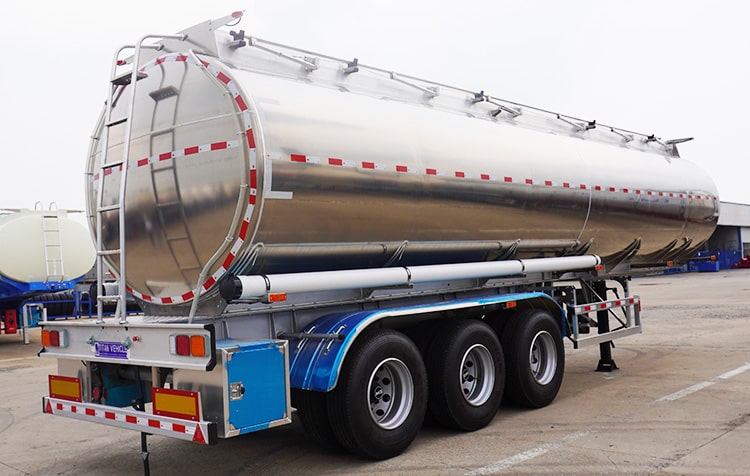

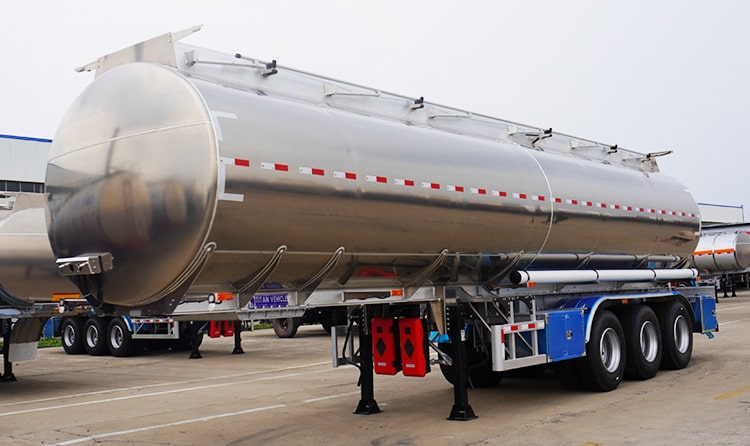

New 40000Ltrs Aluminum Tankers Trailers for Sale in Zimbabwe
New 40000Ltrs Aluminum Tankers Trailers for Sale in Zimbabwe
New 40000Ltrs Aluminum Tankers Trailers for Sale in Zimbabwe
Dimension: 11500mm * 2500mm *3700mm (the exact size depends on the final design.)
Tare Weight (semi trailer): About 8000-12800kg
Total volume(m³): 40000 liters
Tank Body Material: 5mm or 6mm aluminum steel
End plate: 5mm or 6mm aluminum steel
Manhole Cover: aluminum steel
Bottom Valve: Aluminum API Pneumatic Bottom Valve
Compressor: BOHAI 10m³/12m³ or other brands
Discharging Valve: Diameter is 3 or 4 inch
Compartments: Optional
Discharging Pipe: 4 inch rubber hose,2pcs,6m/each
Cat Walk: With (common model or special design)
Main beams: Welded design or special design I beam, connected by bolts and nuts Q345 carbon steel material

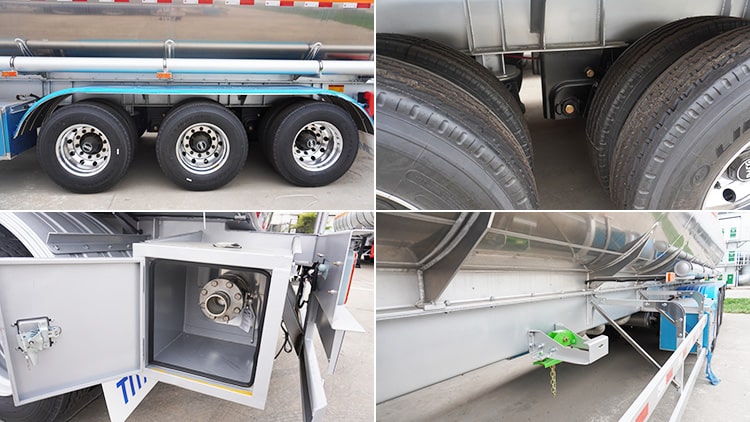

Axle: 3 axles,12T/13T/16T,BPW/ FUWA/ TITAN brand
Landing Gear: JOST(D200T) or China brand 28T
Kingpin: JOST 2.0 or 3.5 inch bolt-in king pin
Suspension: Mechanical suspension
Leaf Spring: 90(w)mmx13(thickness)x10layers or 10mm x12mmx12 layers
Pneumatic Braking System: WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); 45L air tank
Rim: 9.00-22.5/8.00-20/8.5-20 Chinese brand
Tire: 12.00R22.5/315.80R22.5/11.00R20/12.00R20 brand can be optional
ABS: Optional
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layer of top coats.
Accessories: One standard tool box
Shipping Terms: By bulk cargo, RORO or 40HQ containers

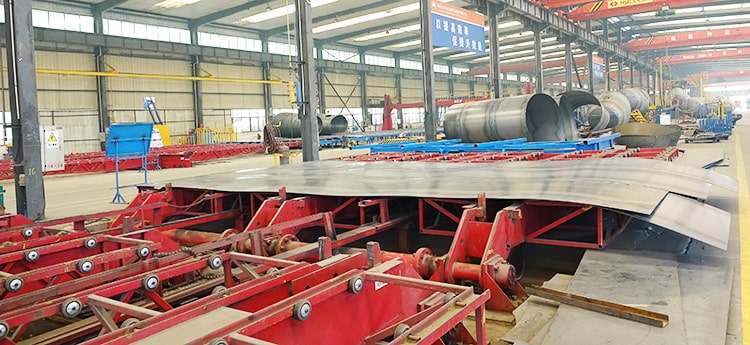

The tank body adopts the professional canning machine canning technology and forms at one time.The maximum to protect the tank to the firmness.
All TITAN tanker after the production, will be carried out pressure test and metal inspection test, to ensure the tank sealing good.
