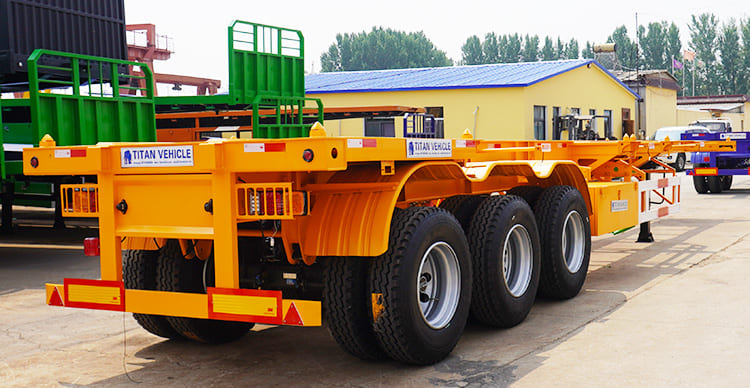

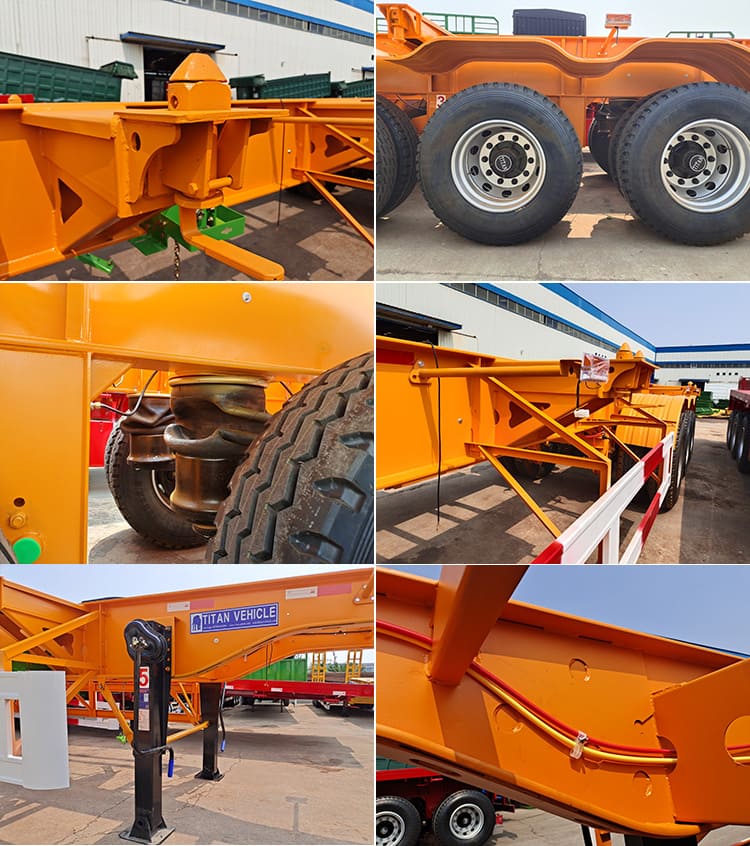

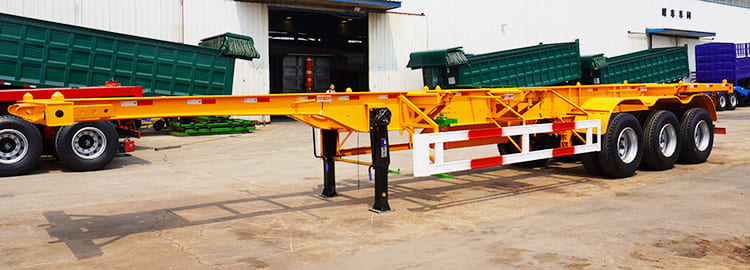

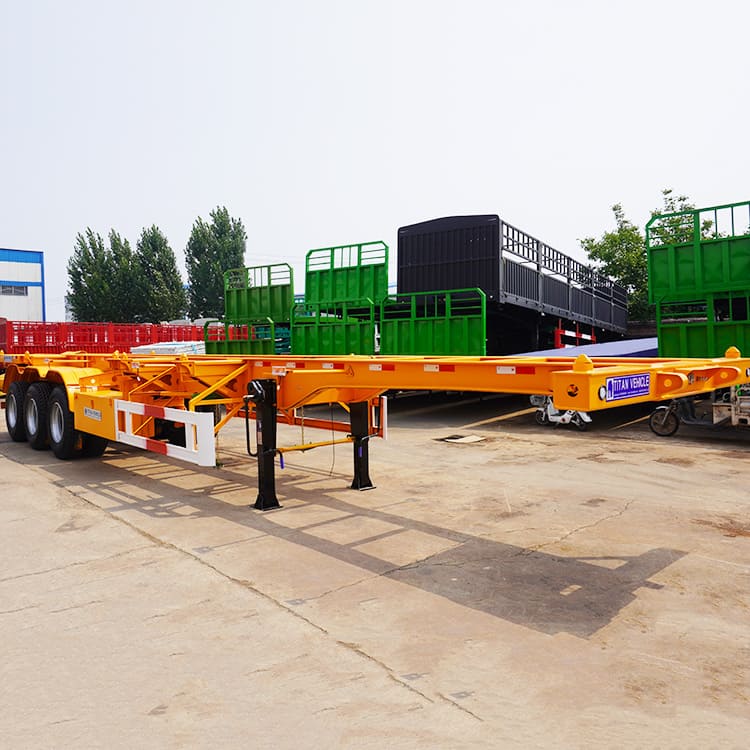

This tri axle container chassis trailer main task is to transport the standard container (20ft,40ft) between terminals and other container transshipment places
In order to save the transportation cost of customers, this tri axle container chassis trailer can be loaded into a 40-foot-high container every two units, without removing the tire axles, realizing the containerized transportation of the tri axle container trailer, and it is convenient for customers to load and unload the container chassis trailer under the condition of saving freight.
Tri Axle Container Chassis Trailer | New Container Chassis Manufacturers Price for Sale
Tri Axle Container Chassis Trailer | New Container Chassis Manufacturers Price for Sale
Tri Axle Container Chassis Trailer | New Container Chassis Manufacturers Price for Sale

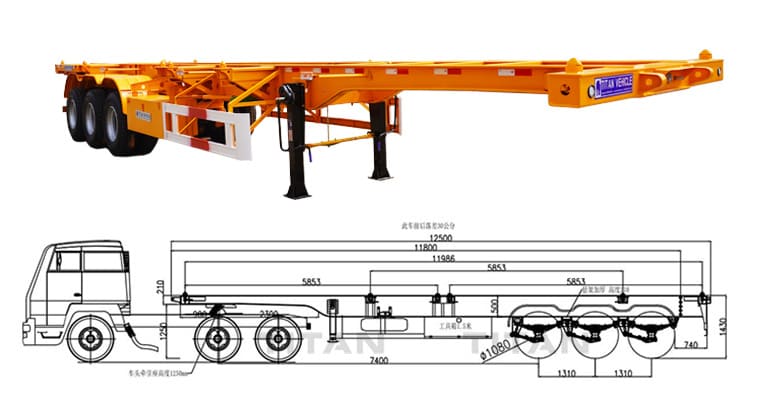

Dimension(mm): 12500x2500x1530mm
Loading capacity(ton): ≤60T
Axles: Tri axle container chassis price
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Air suspension and Mechanical suspension
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Shipping Terms: Transported by the bulk carrier in an RORO or 40ft container
Tri Axle Container Chassis Trailer | New Container Chassis Manufacturers Price for Sale
Video of tri axle container chassis trailer
Through the video, you can know different types of skeleton trailers, as well as the process, testing, packaging and customer feedback, etc.
