TITAN container skeleton trailer for sale main beam is made of the high strength steel material Q345, and the main beam is cut off as a whole, the welding seam is aslo very smooth, which made the container skeleton trailer for sale has a longer service life.
TITAN could offer the buyers container skeleton trailer for sale with differernt parameters, such as 20ft, 40ft, 48ft, 53ft, and with different number of axles, 2 axle, 3 axle, 4 axle, 5axle, which made the capacity of the container skeleton trailer for sale differrent.
Container Skeleton Trailer for Sale | 40Ft Skeleton Semi Trailer
Container Skeleton Trailer for Sale | 40Ft Skeleton Semi Trailer
Container Skeleton Trailer for Sale | 40Ft Skeleton Semi Trailer

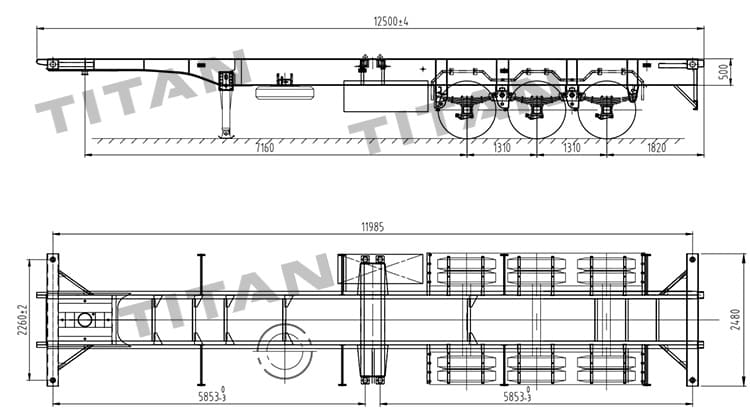

Dimension(mm): 12500x2500x1530mm
Loading capacity(ton): ≤60T
Axles: Tri axle container chassis price
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Air suspension and Mechanical suspension
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Shipping Terms: Transported by the bulk carrier in an RORO or 40ft container
Container Skeleton Trailer for Sale | 40Ft Skeleton Semi Trailer
Through the video, you can know different types of skeleton trailers, as well as the process, testing, packaging and customer feedback, etc.
