TITAN tri axle 12m container skeletal trailer - a semi-trailer for transporting shipping containers on the highway. The tri axle 12m container skeletal trailer includes a semi-trailer chassis and a suitable platform for cont ainer installation. TITAN tri axle 12m container skeletal trailer is designed to transport two 20ft and one 40ft containers.
TITAN tri axle 12m container skeletal trailer is using high stength steel Q345 to make the main beam, which gives the tri axle 12m container skeletal trailer more power to support the weight of the containers.
Tri Axle 12M Container Skeletal Trailers for Sale in Kenya
Tri Axle 12M Container Skeletal Trailers for Sale in Kenya
Tri Axle 12M Container Skeletal Trailers for Sale in Kenya

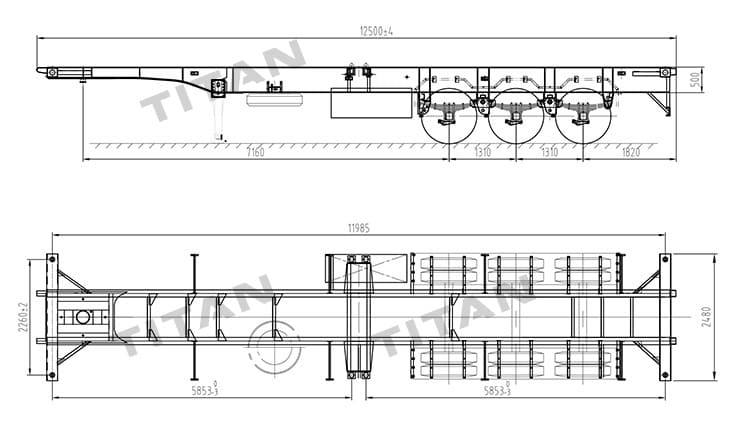

Dimension(mm): 12500x2500x1530mm
Loading capacity(ton): ≤60T
Axles: tri axle 12m container skeletal trailer
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Shipping Terms: Transported by the bulk carrier in an RORO or 40ft container
Tri Axle 12M Container Skeletal Trailers for Sale in Kenya
1. TITAN tri axle 12m container skeletal trailer for sale is in small shape and small in driving wind resistance, which can save fuel;
2. TITAN uses high-strength steel to make the tri axle 12m container skeletal trailer, which has stronger bearing capacity and longer service life
3. The tri axle 12m container skeletal trailer has a low force surface, a low center of gravity when the cargo is fully loaded, and is not easy to roll over when turning

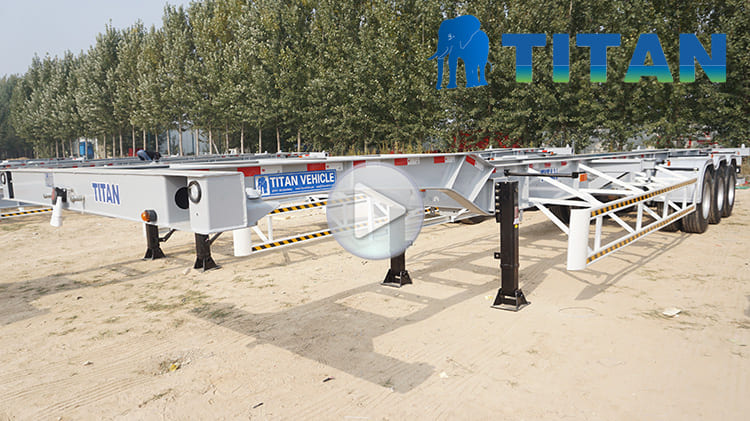

Video of Tri axle 12m container skeletal trailer
Through the video, you can know different types of skeleton trailers, as well as the process, testing, packaging and customer feedback, etc.
