TITAN 40ft shipping container trailer is equipped with JOST landing gear, which is a world-renowned brand-name accessory. And has better bearing capacity and longer service life. Besides,TITAN Vehicle reinforced the suspension, with 70mm center balance pin.

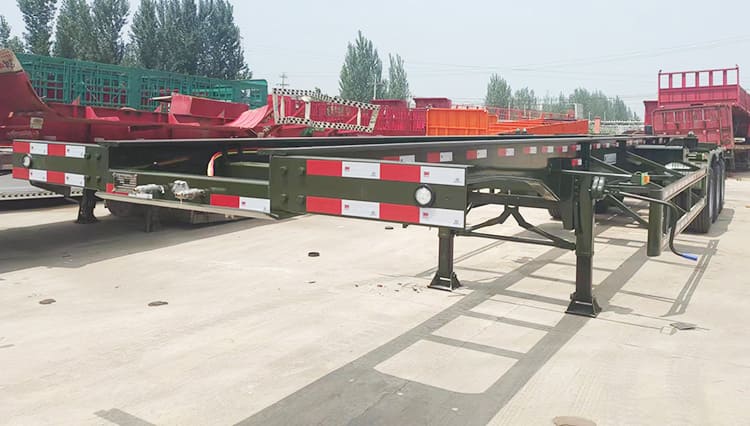

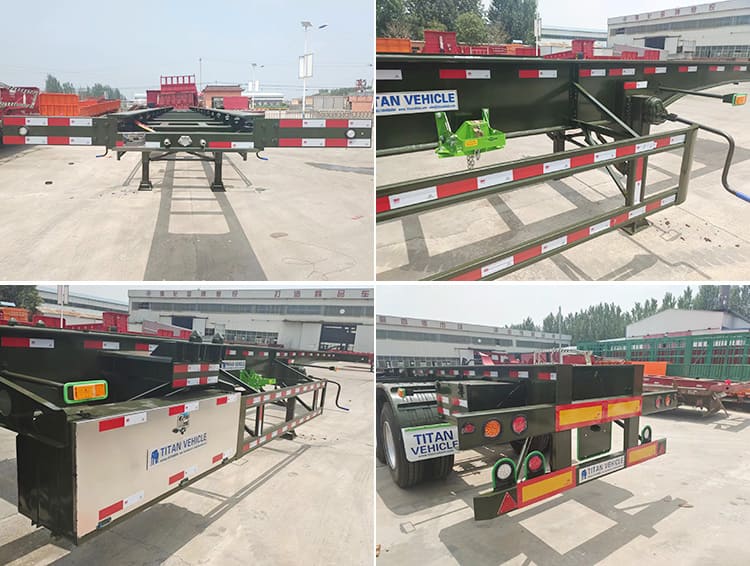

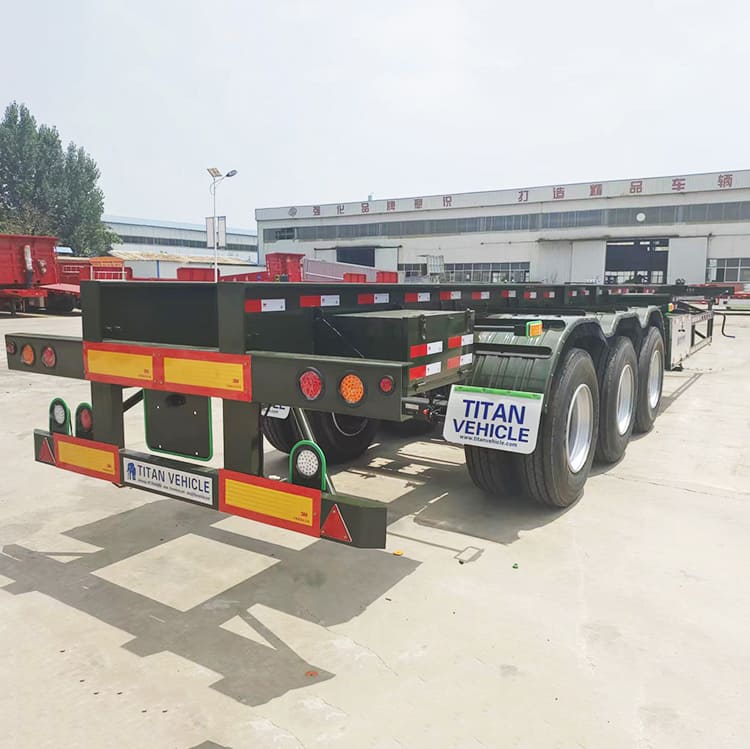

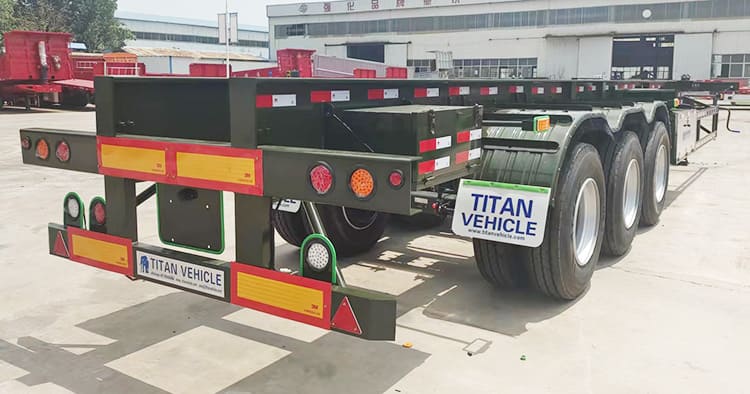

3 Axle 40Ft Shipping Container Trailer for Sale Price
3 Axle 40Ft Shipping Container Trailer for Sale Price
3 Axle 40Ft Shipping Container Trailer for Sale Price
Dimension(mm): 12500x2500x1430mm
Loading capacity(ton): ≤60T
Axles: 3 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Shipping Terms: Transported by the bulk carrier in an RORO or 40ft container
Drawing of 3 Axle 40Ft Shipping Container Trailer

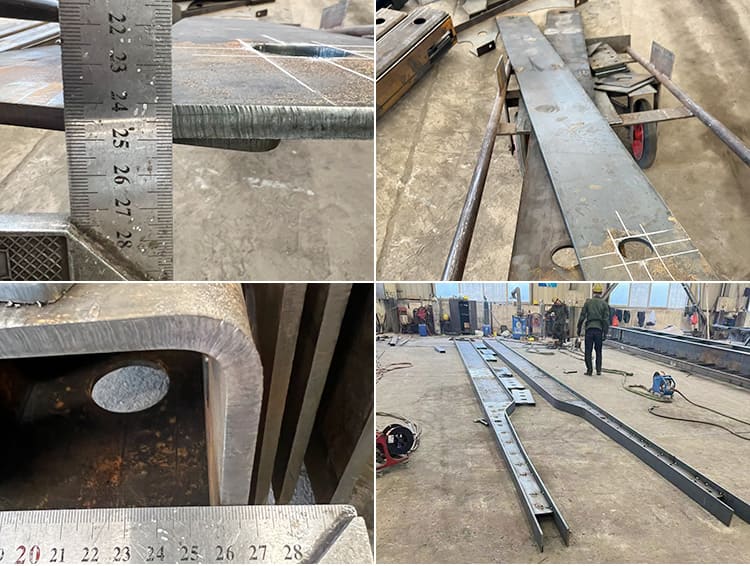

Production details of 3 Axle 40Ft Shipping Container Trailer
Through the video, you can know different types of skeleton trailers, as well as the process, testing, packaging and customer feedback, etc.
