TITAN produces various skeleton container trailers, with different parameters, the 40ft skeleton container trailer is designed for loading and unloading international containers, like 40ft, 20ft containers. This 40ft skeleton container is eqquiped the twist locks, which can helip the skeleton container trailer fix the cargo on the trailer tightly. And this skeleton container trailer is used for transporting one 40ft contaienrs and two 20ft containers.
TITAN aslo can provide buyers with diffrerent shipping terms of the skeleton container trailers, like bulk carrier, RORO or 40ft container

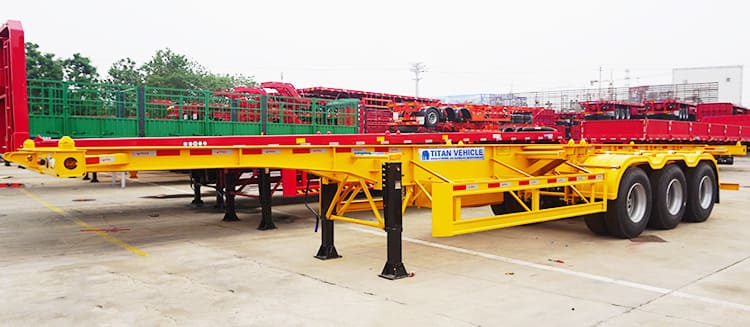

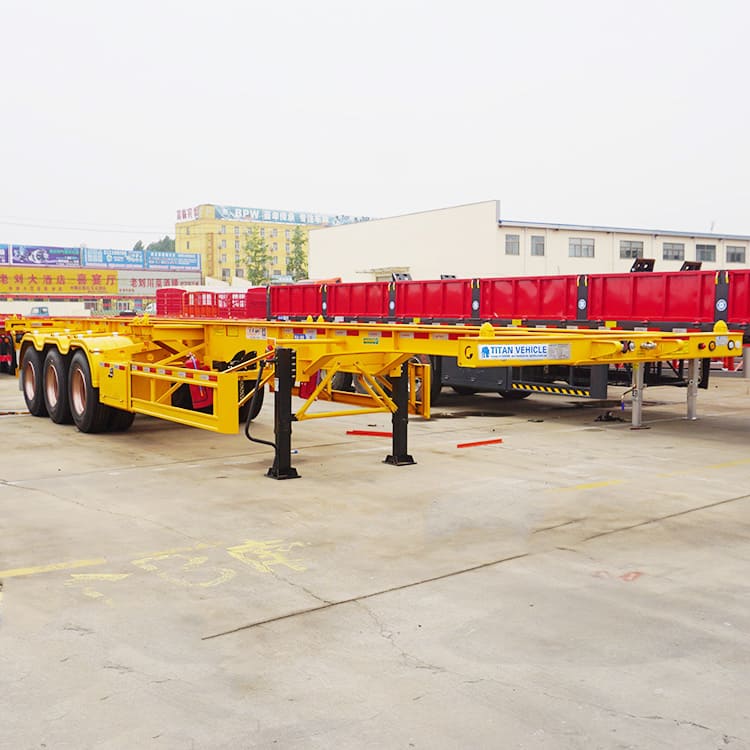

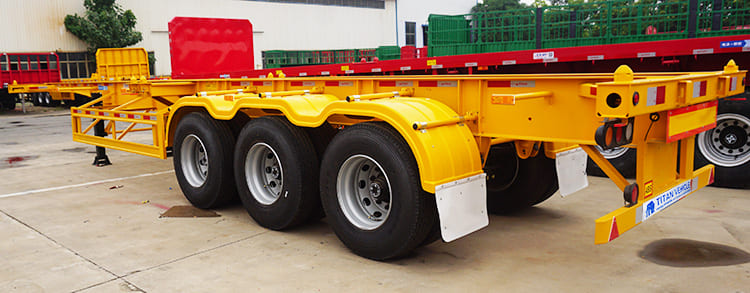

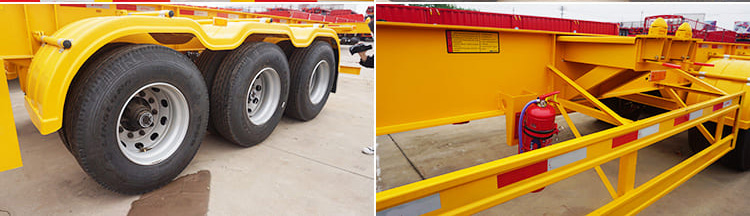

40Ft Skeleton Conainer Trailer for Sale Price in Congo
40Ft Skeleton Conainer Trailer for Sale Price in Congo
40Ft Skeleton Conainer Trailer for Sale Price in Congo

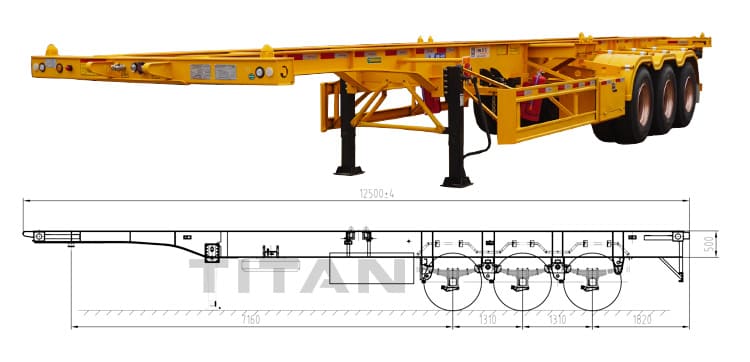

Dimension(mm): 12500x2500x1530mm
Loading capacity(ton): ≤60T
Axles: 3 Axle
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Air suspension and Mechanical suspension
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Shipping Terms: Transported by the bulk carrier in an RORO or 40ft container
40Ft Skeleton Conainer Trailer for Sale Price in Congo
Through the video, you can know different types of skeleton trailers, as well as the process, testing, packaging and customer feedback, etc.
