Using a 40ft skeleton trailer for sale to transport goods by road is the fastest because the road network is already extensive and is being further developed. TITAN skeleton semi trailer for sale has convenience to deliver the transported goods to a place, The skeleton trailer is also very convenient for unloading.
TITAN Vehicle can provide clients 20ft, 40ft, 45ft skeleton trailer with 2/3/4/5 alxes, which has different capacities.

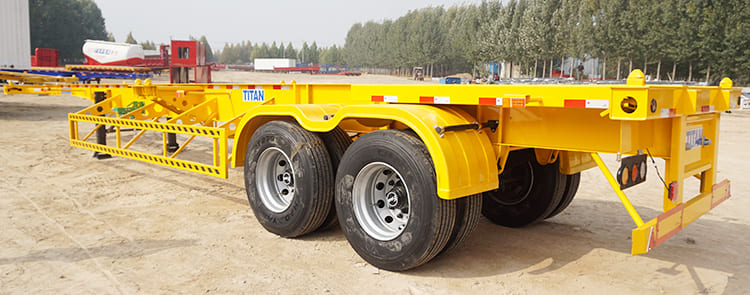

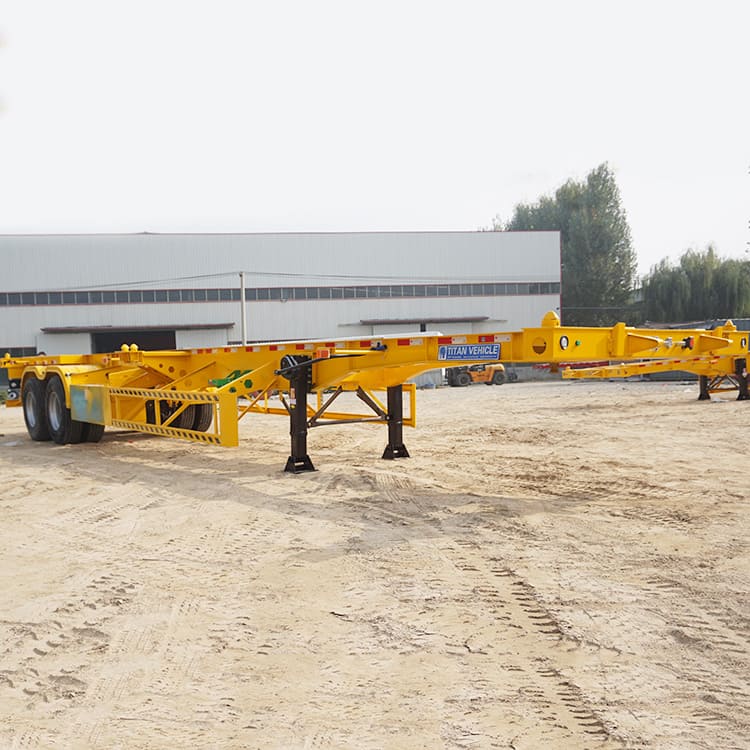

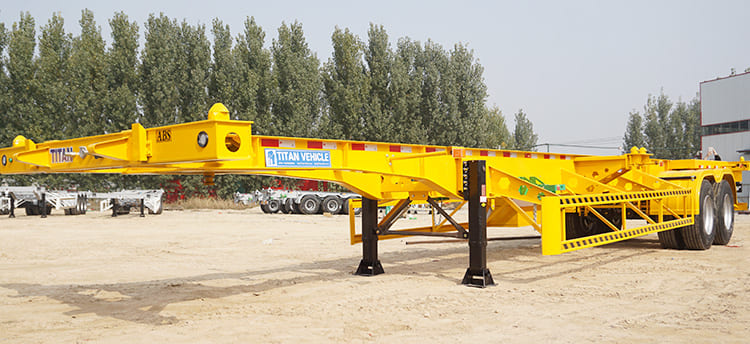

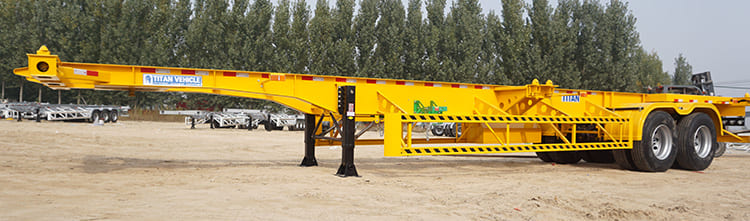

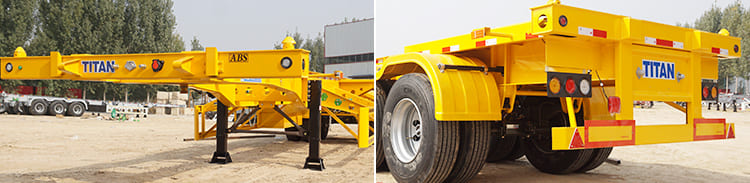

40Ft Skeleton Trailer for Sale in Djibouti
40Ft Skeleton Trailer for Sale in Djibouti
40Ft Skeleton Trailer for Sale in Djibouti
40Ft Skeleton Trailer for Sale in Djibouti
Dimension(mm): 12300x2500x1520mm
Loading capacity(ton): ≤60T
Axles: 2 axle
Tire: 8 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
Shipping Terms: Transported by the bulk carrier in an RORO or 40ft container
1 The 40Ft skeleton trailer has a low force surface, a low center of gravity when the cargo is fully loaded, and is not easy to roll over when turning
2. TITAN skeleton trailer for sale are small in shape and small in driving wind resistance, which can save fuel;
3. TITAN uses high-strength steel to make the skeleton trailer, which has stronger bearing capacity and longer service life
Through the video, you can know different types of skeleton trailers, as well as the process, testing, packaging and customer feedback, etc.
