TITAN Vehicle can offer customers the best skeletal semi trailer for sale, which has different specifications, like 2 axle 20ft skeletal semi trailer, 2 axle 20ft skeletal semi trailer, 3 axle 40ft skeletal semi trailer, 4 axle 48ft, 5 axle skeleton semi trailer. With various parameters, the tri axle skeletal semi trailer has differrent capacities, one standard tri axle skeletal semi trailer for sale could be able to afford one 40ft containers or two 20ft containers.

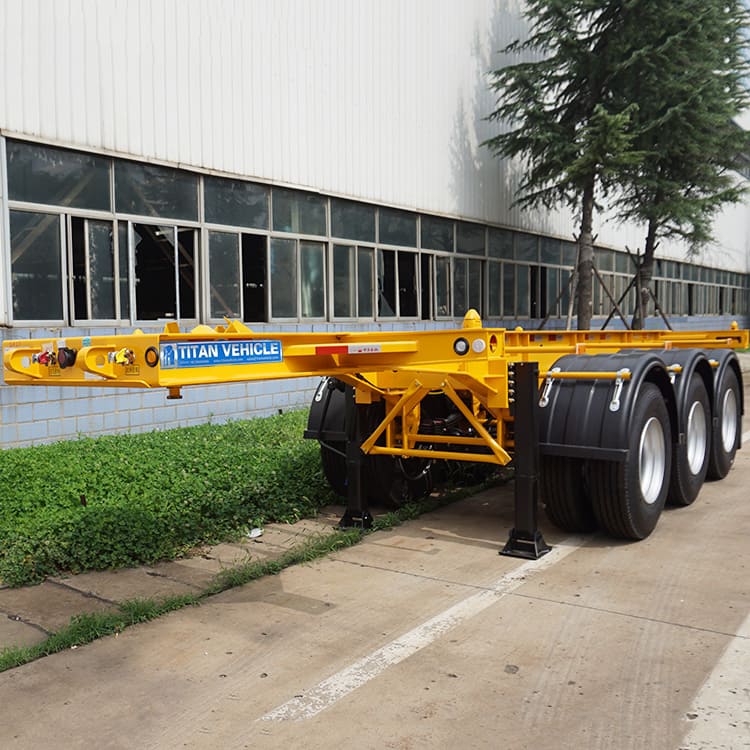

Although this tri axle skeletal semi trailer only has 20ft length, this is specially designed for those customers which has demands to load more heavier 20ft containers.

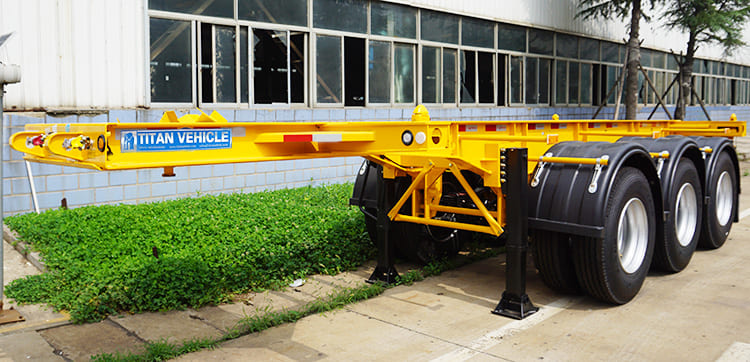

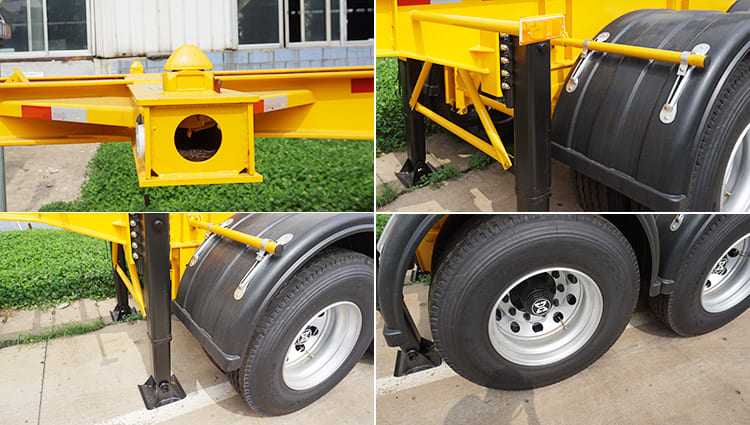

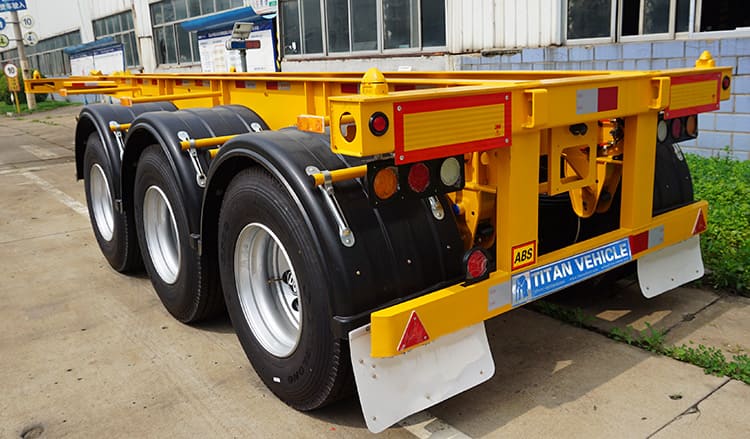

Skeletal Semi Trailer for Sale | Tri Axle Skeletal Trailer for Sale in Malawi
Skeletal Semi Trailer for Sale | Tri Axle Skeletal Trailer for Sale in Malawi
Skeletal Semi Trailer for Sale | Tri Axle Skeletal Trailer for Sale in Malawi
Dimension(mm): 7500x2500x1520mm
Loading capacity(ton): ≤60T
Axles: tri axle skeletal semi trailer
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Shipping Terms: Transported by the bulk carrier in an RORO or 40ft container
1. The skeleton semi trailer is made of high-strength steel, which has better bearing capacity
2. Compared with other manufacturers' skeleton semi trailer, it has a lower price and better quality
3. The accessories of the skeleton semi trailer are all internationally renowned brands, such as jost and wabco, etc.
4. The color of the skeleton semi trailer can be sprayed into the color that the customer wants
Through the video, you can know different types of skeleton trailers, as well as the process, testing, packaging and customer feedback, etc.
