TITAN 40ft skeletal container trailer can be made into 20/40/45/53 feet, with different axles, 2/3/4/5 axle. TITAN VEHICLE also provide buyers with different suspensions, airbag suspension, Mechanical suspension， spring suspensions.
Use 40ft skeletal contaienr trailer to transfer goods, which can be packaged directly in the sender's warehouse, and then transported to the receiver's warehouse for unloading. There is no need to remove the item from the box for replacement or in transit.
40Ft Skeletal Container Trailer Price for Sale in Kenya
40Ft Skeletal Container Trailer Price for Sale in Kenya
40Ft Skeletal Container Trailer Price for Sale in Kenya

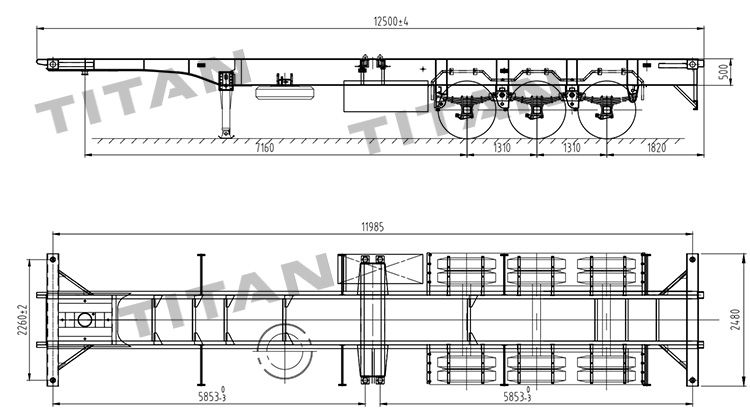

Dimension(mm): 12500x2500x1530mm
Loading capacity(ton): ≤60T
Axles: Tri axle container chassis price
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Air suspension and Mechanical suspension
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Shipping Terms: Transported by the bulk carrier in an RORO or 40ft container
40Ft Skeletal Container Trailer Price for Sale in Kenya
Through the video, you can know different types of skeleton trailers, as well as the process, testing, packaging and customer feedback, etc.
